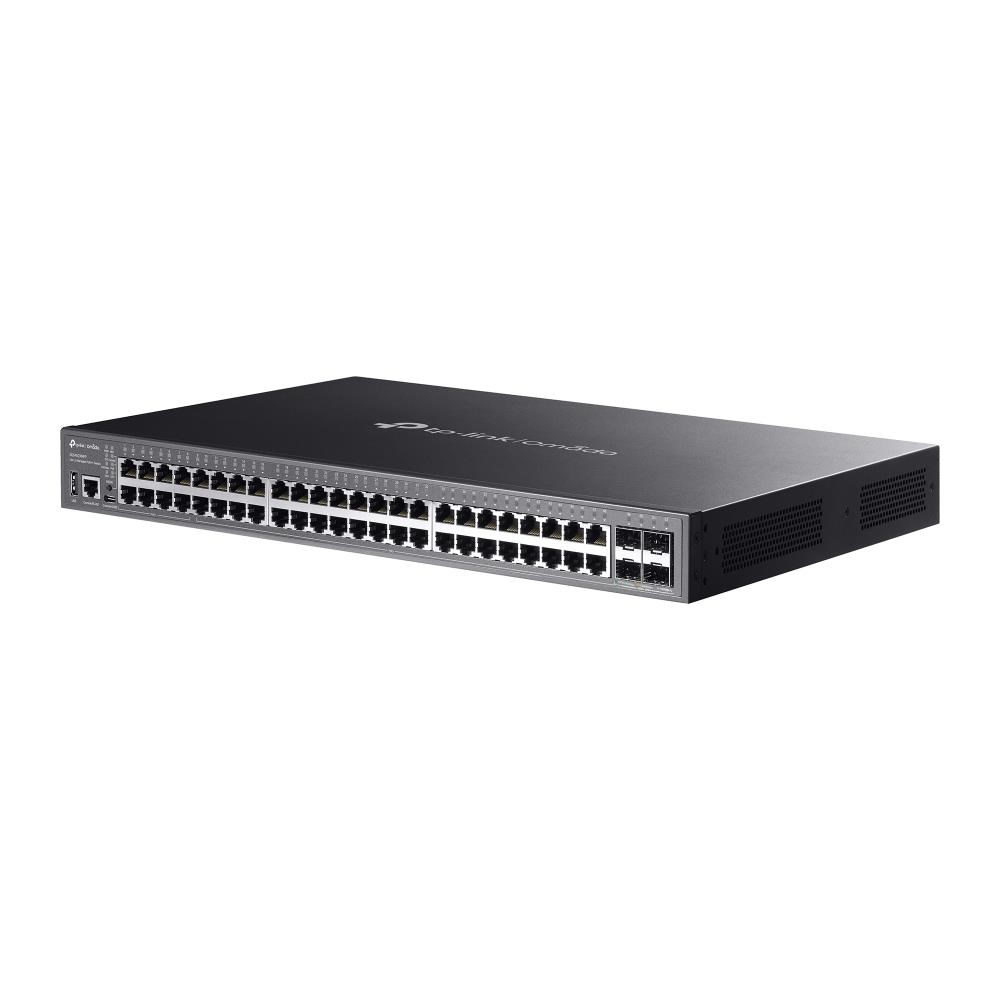

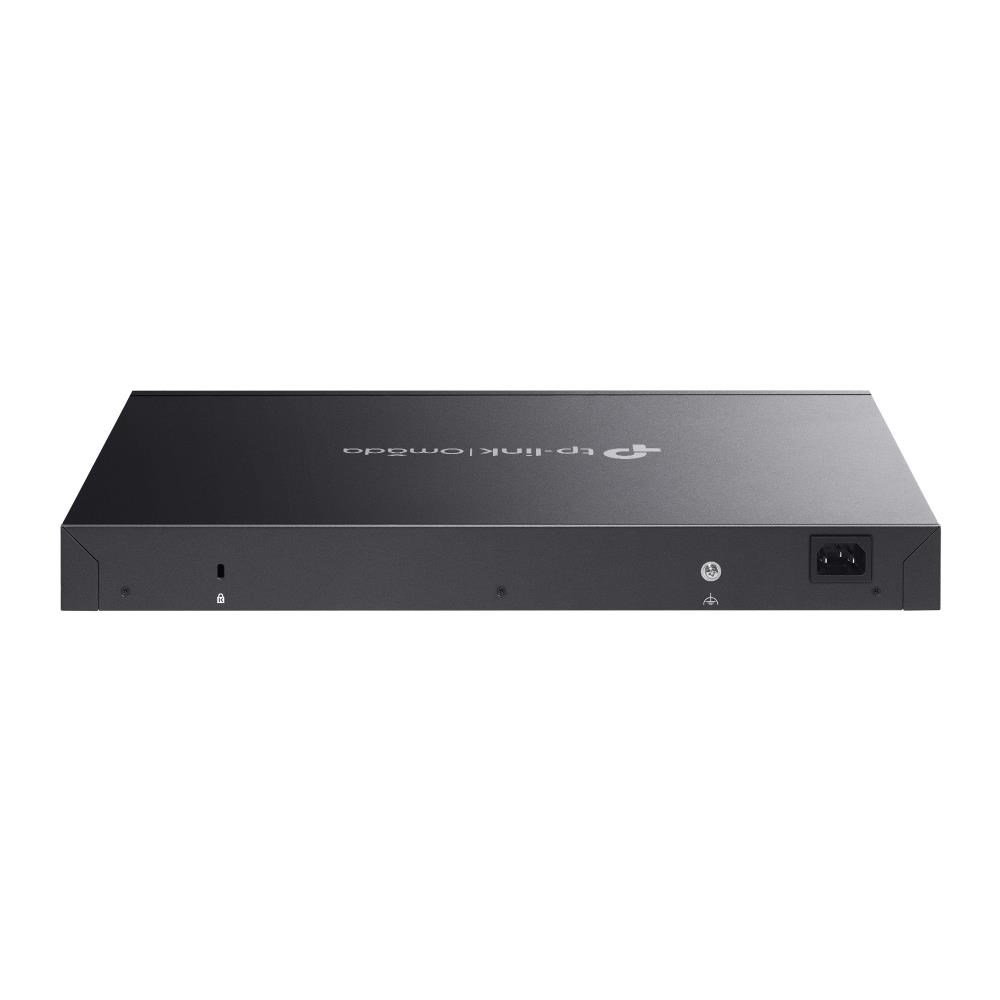

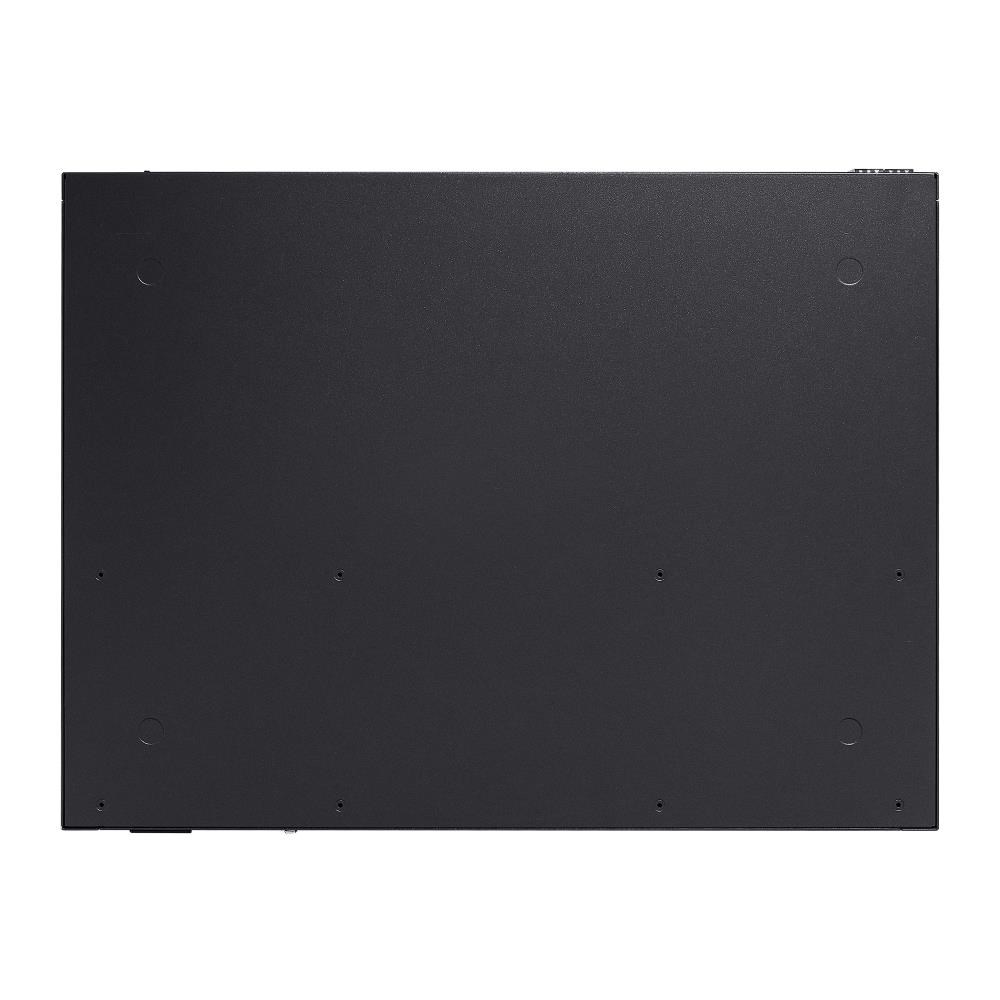

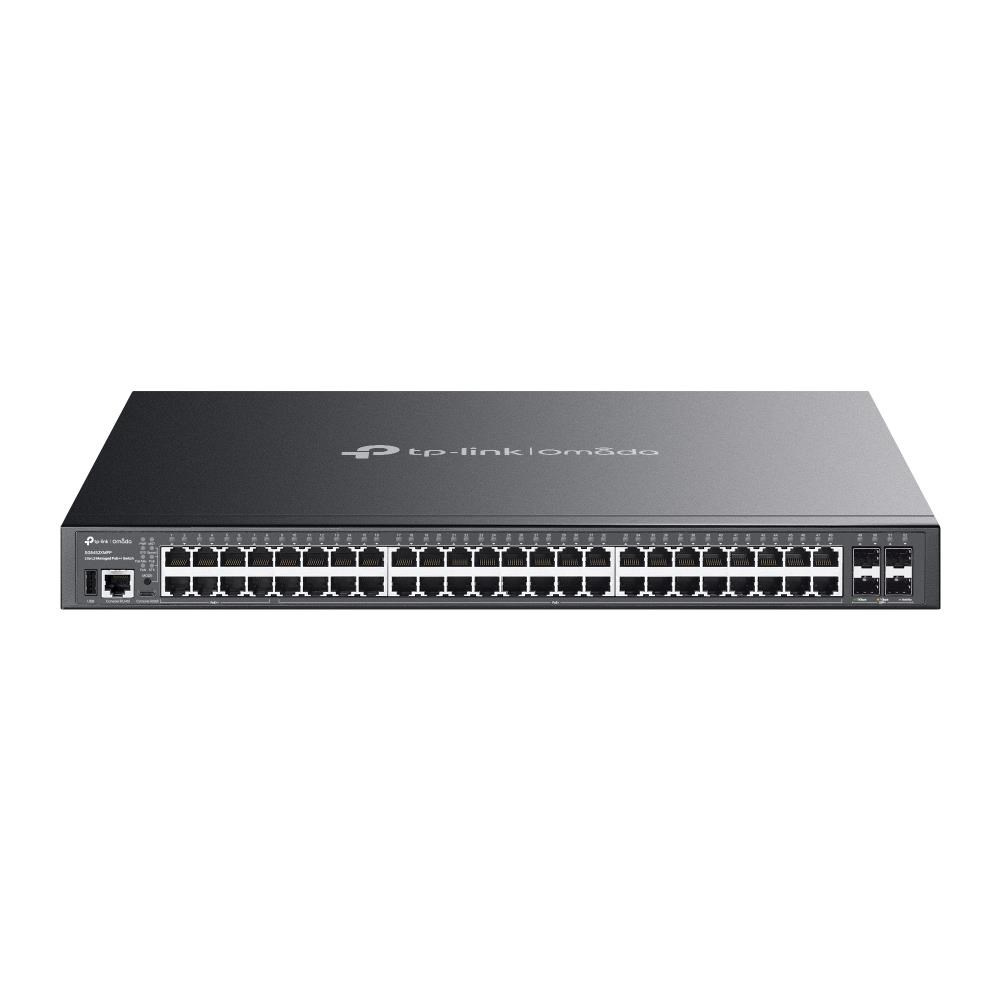

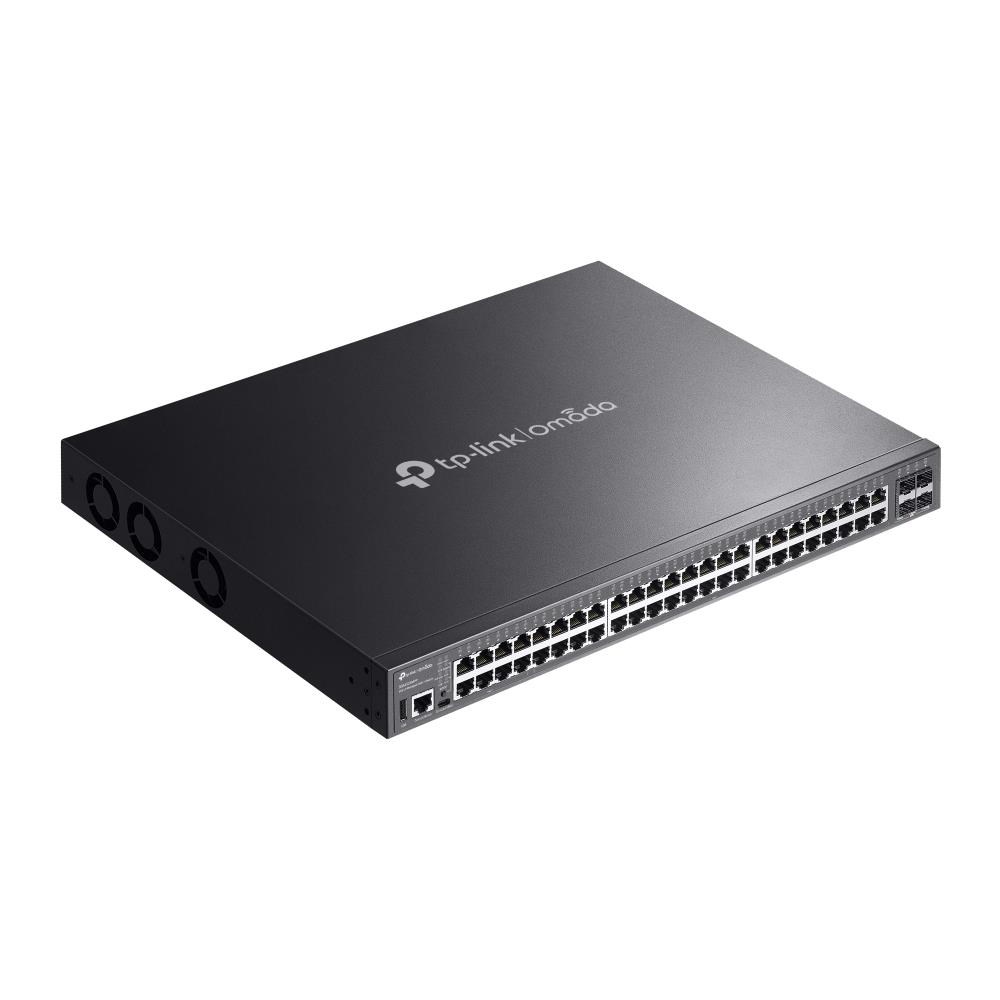

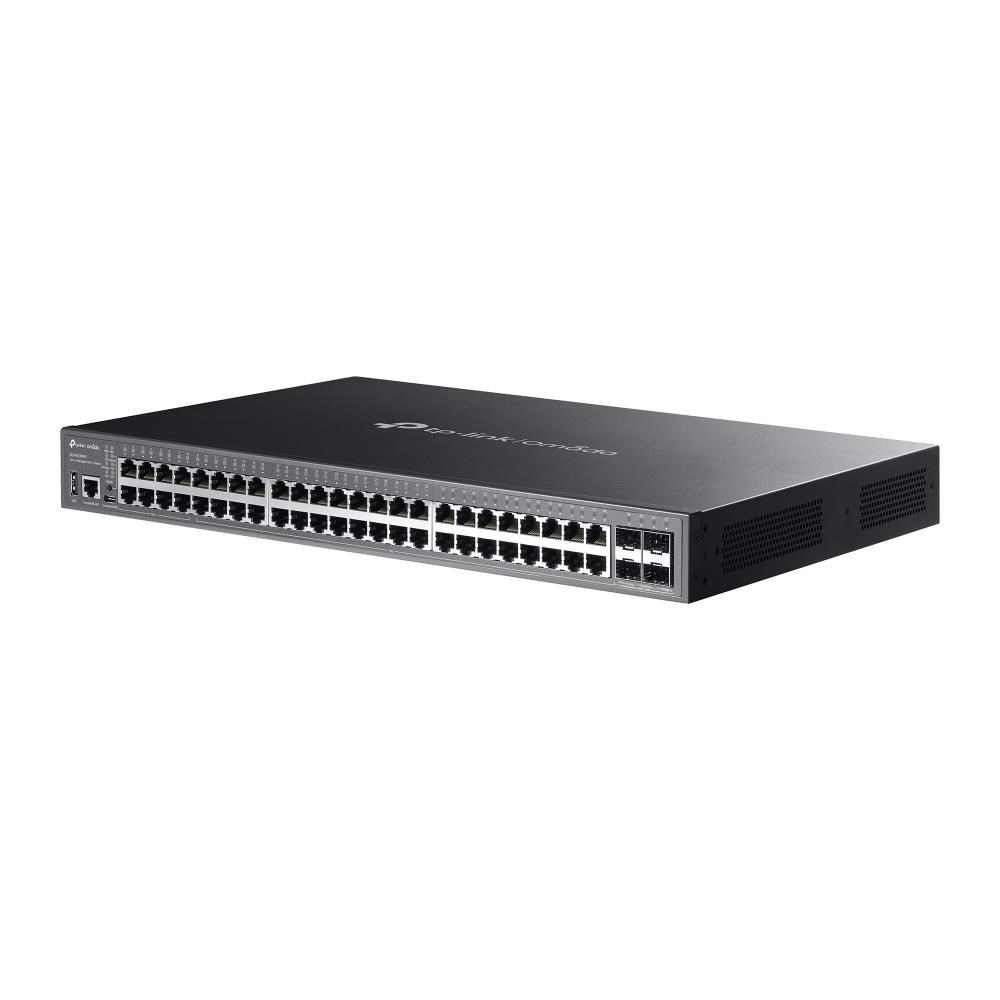

TP-Link OMADA switch SG5452XMPP (48xGbE,4xSFP+,8xPoE++,40xPoE+,770W,1xUSB2.0,2xConsole)
Popis a parametry
TP-Link OMADA switch SG5452XMPP (48xGbE,4xSFP+,8xPoE++,40xPoE+,770W,1xUSB2.0,2xConsole)
TP-Link OMADA switch SG5452XMPP
Omada 48portový gigabitový stohovatelný switch Lite L3 s řízením PoE++ a 4× 10G sloty
- 8× Gigabitové PoE++ porty 802.3af/at/bt (Max 90 W na port)
- 40× Gigabitové PoE+ porty 802.3af/at (Max 30 W na port)
- 4× 10Gb/s SFP+ sloty
- Až 770 W celkový PoE rozpočet
- Rychlé PoE a Nepřetržité PoE
- Fyzické stohování až 4 jednotek pro vestavěnou redundanci a výkon
- L3 funkce: RIP, OSPF, Statické směrování a DHCP server/relay
- Bezpečnostní strategie: ACL, Port Security, DoS ochrana, 802.1X
- ERPS podporuje rychlou ochranu a obnovení v kruhové topologii
- Centralizovaná správa přes cloud pomocí Omada SDN kontroléru
- Samostatná správa přes web, CLI, SNMP a RMON
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-campus/sg5452xmpp
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+) • 4× 1/10 Gbps SFP+ Slots** • 1× USB 2.0 Port • 1× RJ45 Console Port • 1× USB Type-C Console Port |
| Fan Quantity | 3 |
| Power Supply | 100-240 V~ 50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: Ports 1~8 (up to 90W per Port) • PoE+ Ports: Ports 9~48 (up to 30W per Port) • Power Budget: 770W* • Fast PoE • Perpetual PoE |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rackmountable |
| Max. Power Consumption | • 893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C) • 942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C) |
| Max. Heat Dissipation | • 3047.18 BTU/hr (220V/50Hz) ( with 770 W PD connected @ 25 °C) • 3214.61 BTU/hr (110V/60Hz) ( with 770 W PD connected @ 25 °C) |
| PERFORMANCE | |
| Switching Capacity | 176 Gbps per Unit |
| Stacking | • Stacking Number: 4 • Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports) • Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports) |
| Packet Forwarding Rate | 130.94 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR) • Bandwidth Control - Rate Limit - Storm Control • Voice VLAN • User-Defined OUI • Smoother Performance • Action for Flows - QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features | • IP Interfaces: - IPv4: Max 128, IPv6: Max 128 • Static Routing - IPv4 Max 512, IPv6: Max 128 • Host Route Table: Max 1,024 entries • RIP: Version v1/v2, Max 1,796 • OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450 • Static ARP: 512 static entries • Dynamic ARP: 2,000 dynamic entries • Proxy ARP • DHCP Server: - Max 64 IP Pools - Max 1,000 Manual Binding Entries • DHCP Relay: - Relayed Interface - Relayed VLAN |
| L2 and L2+ Features | • Link Aggregation • Spanning Tree Protocol • Port-based and VLAN-based Loopback Detection • 802.3x Flow Control • ERPS • Mirroring • RSPAN • MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† ISP Features: • 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • DDM • sFlow |
| VLAN | • Max 4K VLAN Group (802.1q VLAN) • 802.1Q Tagged VLAN • MAC VLAN Entries: 60 • Multicast VLAN • Management VLAN • VLAN VPN (QinQ): Max 256 entries • GVRP • Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries • Voice VLAN • Private VLAN |
| Security | • Port Isolation • CPU-Defend • ARP Inspection (Dynamic ARP Inspection) • DoS Defend • IP-MAC-Port Binding -1,024 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC -Port Binding -1,024 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DHCP Filter • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support • AAA (including TACACS+) • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv2 • IP/Port/MAC-based access control |
| Management Features | |
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • Password Recovery • SNTP • System Log • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| OTHERS | |
| Package Content | • SG5452XMPP Switch • Power Cord • Console Cable • Rackmount Kits • Rubber Feet • Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F) • Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
ParametryPorovnání
Technologie
Gigabit ethernet + 10 Gigabit optika
Management
Web
Management
SNMP/RMON
Vlastnosti switche
Funkce POE po portech
Vlastnosti switche
Rozšiřitelnost
Provedení
Rack mounted 19"
Přenosová rychlost LAN (Mb/s)
1000
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Funkce
L3
Funkce
PoE (Power over ethernet)
Funkce
QoS (Quality of service)
Podporované standardy PoE
802.3af
Podporované standardy PoE
802.3at
Podporované standardy PoE
802.3bt
Ventilátor
Ano
Počet portů LAN
48
Přenosová rychlost LAN (Mb/s)
1000
Maximální počet portů
52
Počet SFP+ portů
4
PoE budget (W)
770
Počet PoE+ portů
40
Počet PoE++ portů
8
Počet USB 2.0
1
