GIGABYTE MB Sc AM4 B550 AORUS ELITE V2, AMD B550, 4xDDR4, 1xHDMI, 1xDP

Formát základní desky:ATX; Chipset:AMD B550, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:1, 10; PCI Express x16:3; PCI Express x1:1; PCI:0; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; Led Header; TPM; 3.5mm Jack.... více
2 900 Kč bez DPH
Skladem > 5 ks
3 509 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 524157
EAN: 4719331809898
Záruka: 36 Měsíc(ů)
Výrobce: Gigabyte
Popis a parametry

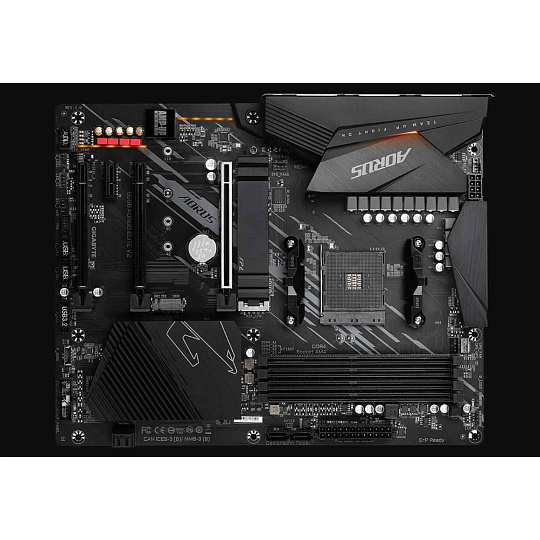

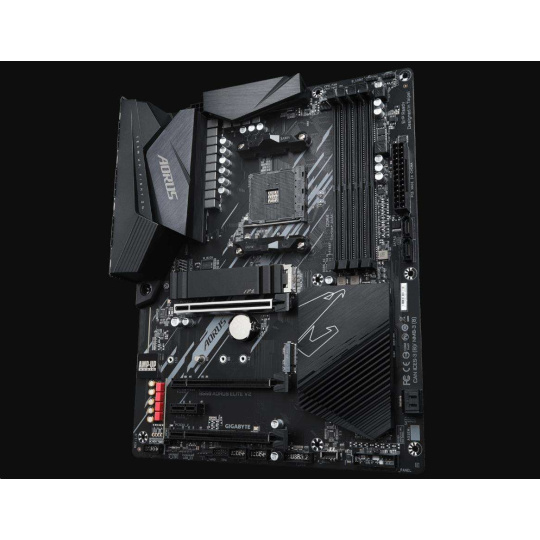

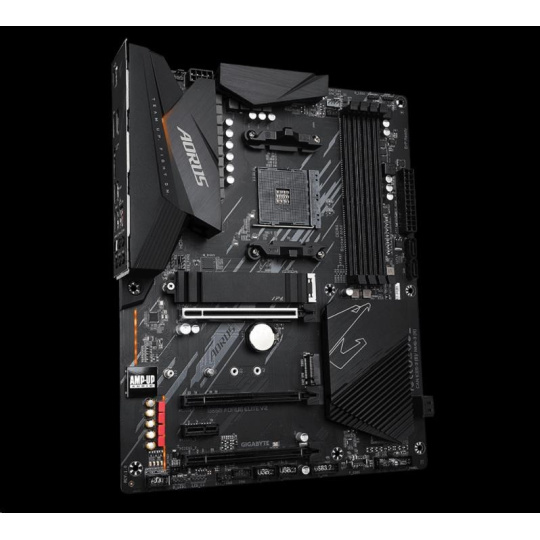

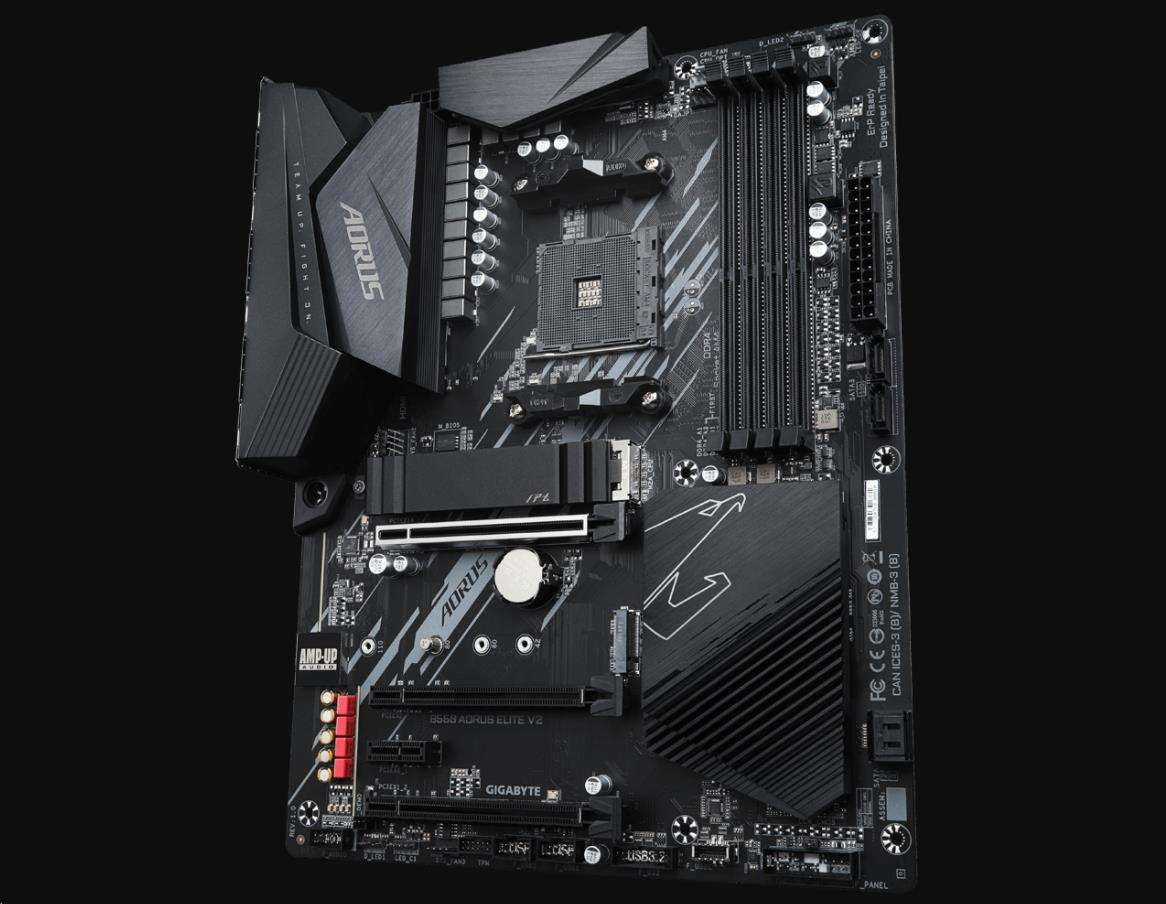

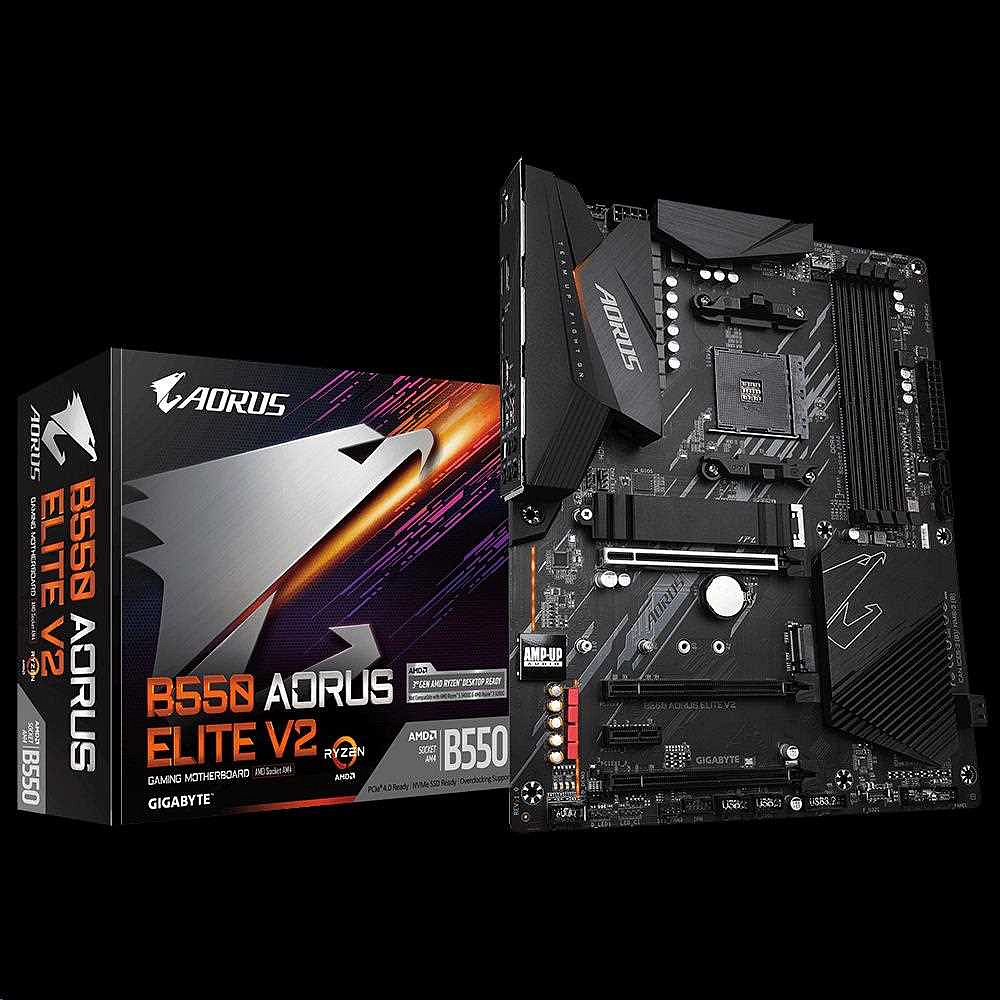

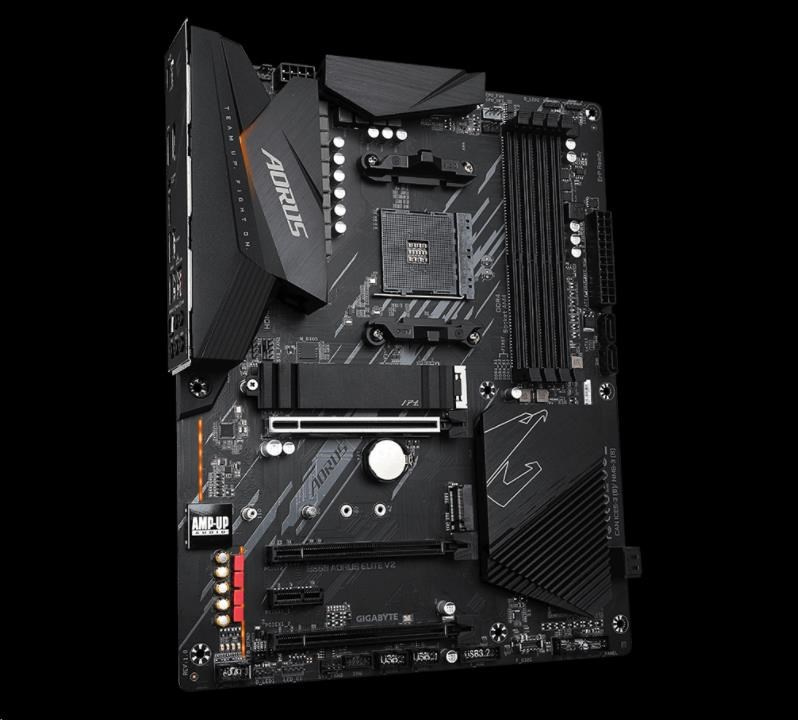

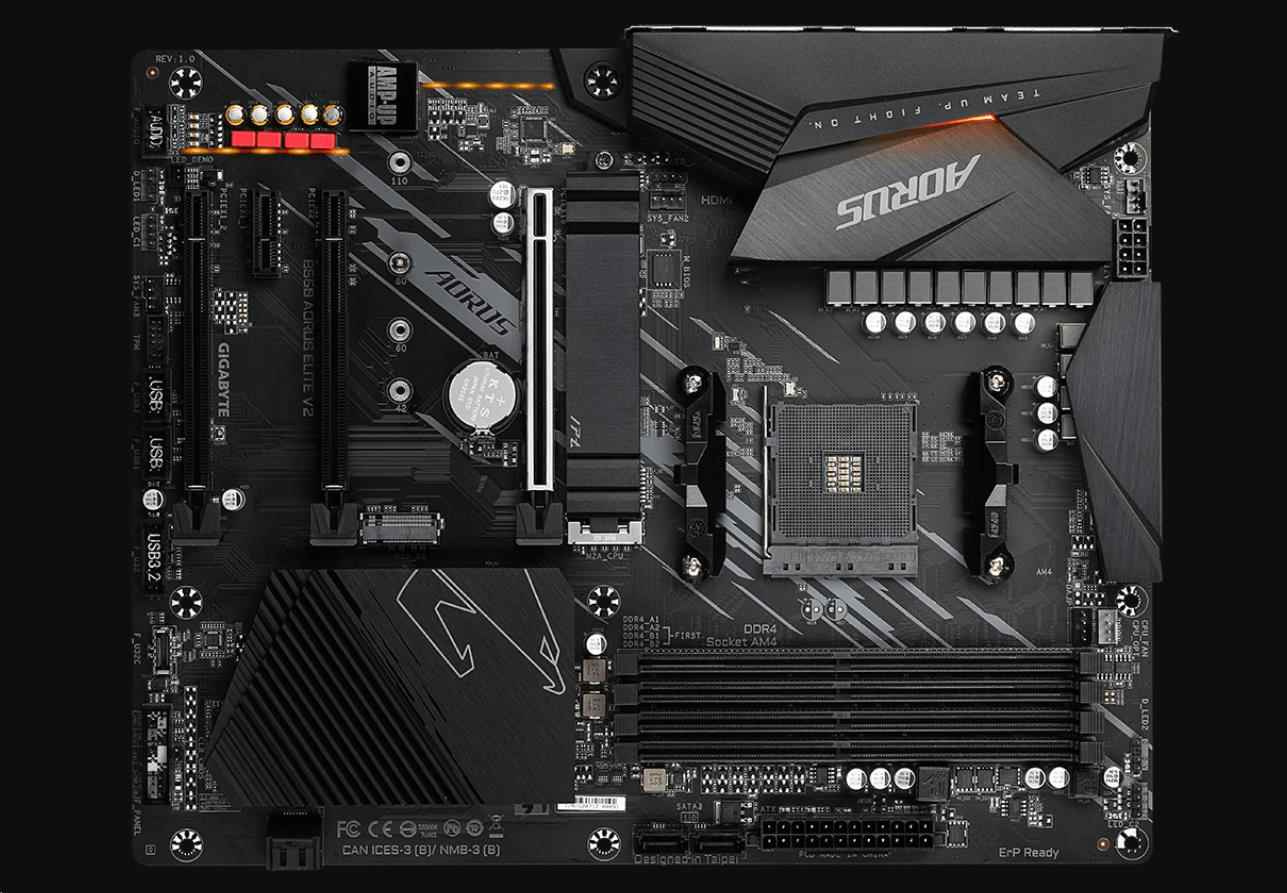

GIGABYTE MB Sc AM4 B550 AORUS ELITE V2, AMD B550, 4xDDR4, 1xHDMI, 1xDP

B550 AORUS ELITE V2 (rev. 1.0)

AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with One Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital Twin Power Design with 50A DrMOS
  • Advanced Thermal Design with Enlarged Surface Heatsinks
  • Ultra Durable™ PCIe 4.0 x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
  • AMP-UP Audio with ALC1200 and WIMA Capacitors
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

TECHNICAL SPECIFICATIONS

CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio - Realtek® ALC1200 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
USB CPU 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
USB Chipset 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 1 port on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
USB Chipset+USB 2.0 Hub 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

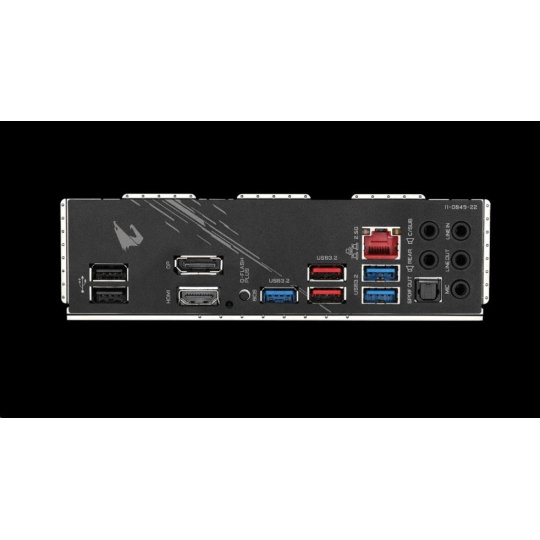

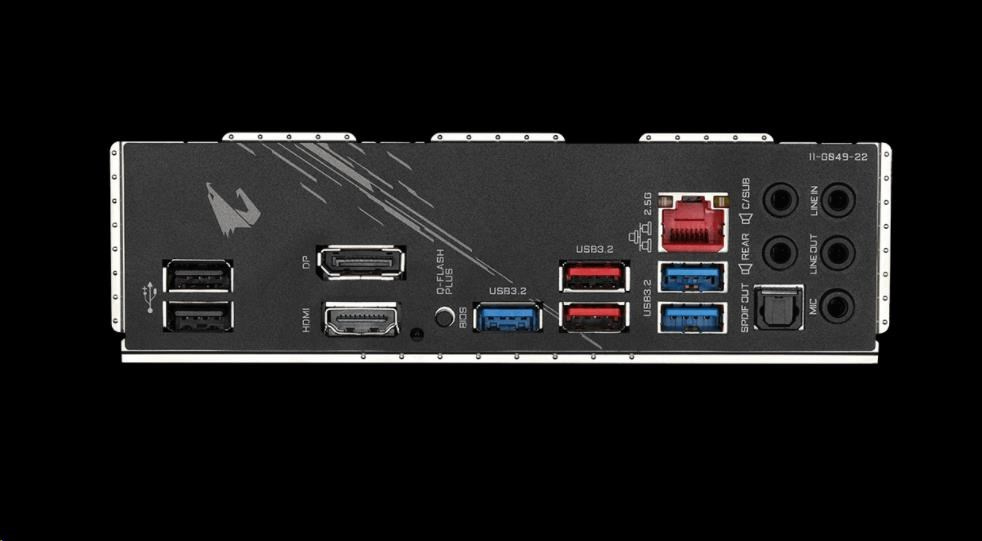

Back Panel Connectors 1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring - Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS - 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software - Norton® Internet Security (OEM version)
- Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Remark - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Chipset
AMD
Chipset
AMD B550
PCI Express x16
3
Podpora RAID
1
Podpora RAID
10
COM port
Ne
LPT port
Ne
Formát základní desky
ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
PCI
0
M.2 slot
2
SATA 3
4
VGA
0
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
1
