Fortron UPS FSP ECO 800 FR, 800 VA / 480 W, USB, RJ45, line interactive
Popis a parametry

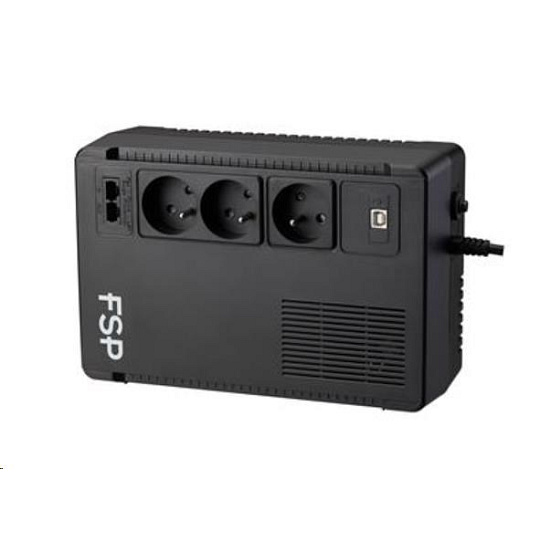

Fortron UPS FSP ECO 800 FR, 800 VA / 480 W, USB, RJ45, line interactive
FSP/Fortron UPS ECO 800 FR, 800 VA / 480 W, USB, RJ45, line interactive
Eco series allows you to archive data and shut down the equipment with ease. If the power outage is too far stretching, you can also use the battery cold start-mode in the uninterruptible power system to charge your mobile device.
- Wall-mounted design

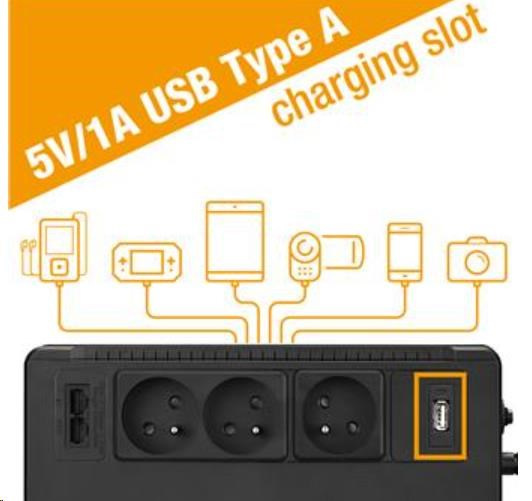

- Optional 5V/1A USB Type A power supply slot
- Optional USB Type B communication link function

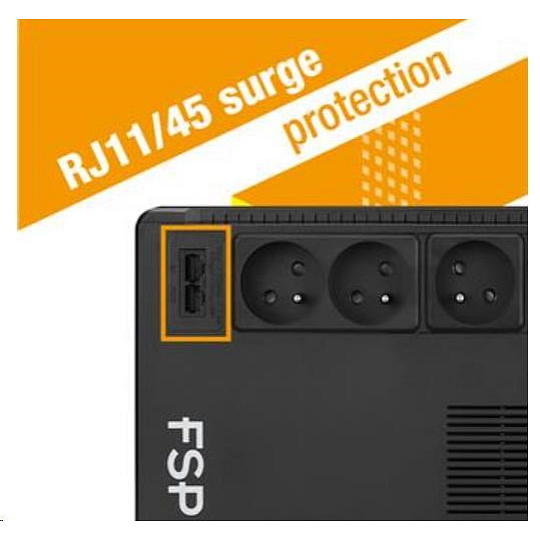

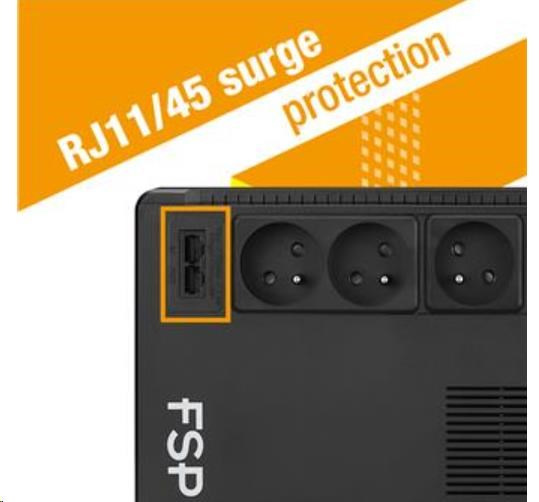

- Optional RJ11/45 surge protection
- Excellent microprocessor control for high reliability
- Provides stable voltage through boost and buck
- Automatic restart when utility power is restored
- Cold start mode
TECHNICAL SPECIFICATIONS
| Capacity | 800VA / 480W |
| Input | |
| Voltage | 110 / 120Vac or 220 / 230 / 240Vac |
| Voltage Range | 81-134Vac / 89-145Vac or 162-268Vac / 170-280Vac / 177-290Vac |
| Frequency Range | 60 / 50Hz (auto sensing) |
| Output | |
| Voltage | 110 / 120Vac or 220 / 230 / 240Vac |
| AC Voltage Regulation (Batt. Mode) | +-10% |
| Frequency Range (Batt. Mode) | 60Hz or 50Hz ± 1Hz |
| Transfer Time | 2-6 ms typical, 10 ms max |
| Waveform (Batt Mode) | Simulated Sinewave |
| Battery | |
| Battery Type and Number | 12V / 5Ah x 1 |
| Typical Recharge Time | 4-6 hours recover to 90% capacity |
| Indicators | |
| AC Mode | Blue lighting |
| Battery Mode | Blue lighting |
| Alarm | |
| Battery Mode | Beeps every 10 seconds |
| Low Battery | Beeps every second |
| Overload | Beeps every 0.5 seconds |
| Fault | Continuously beeping |
| Protection | |
| Full Protection | Overload, discharge, and overcharge protection |
| Physical | |
| Dimensions (D x W x H) | 245 x 163 x 90 mm |
| Net Weight | 4.5 |
| Environment | |
| Humidity | 0-90% RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 40dB |
| Backup Time | |
| Battery Config | 5.0Ah x 1 |
| Backup time | 20 mins |
| Load Condition | Mac book 13” (60W)*1 |
.
ParametryPorovnání
Počet výstupních zásuvek
3
Použití
Desktop
Zdánlivý výkon VA
800
Topologie
Line-Interactive
Provedení
Tower
Fáze (Vstup/Výstup)
1:1
Komunikace
USB
Možnosti
Výstupní zásuvky SHUKO GR (vidlice)
Ochrana telefonní sítě
Ano
Typ výstupu
SCHUKO
