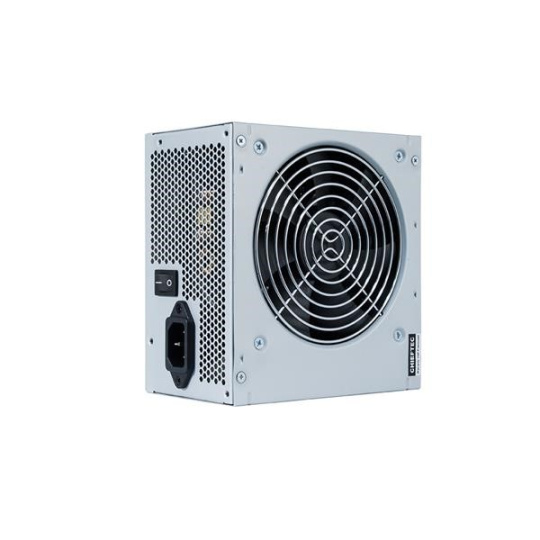

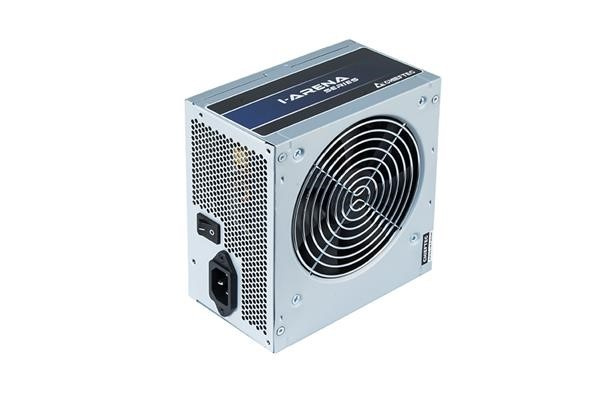

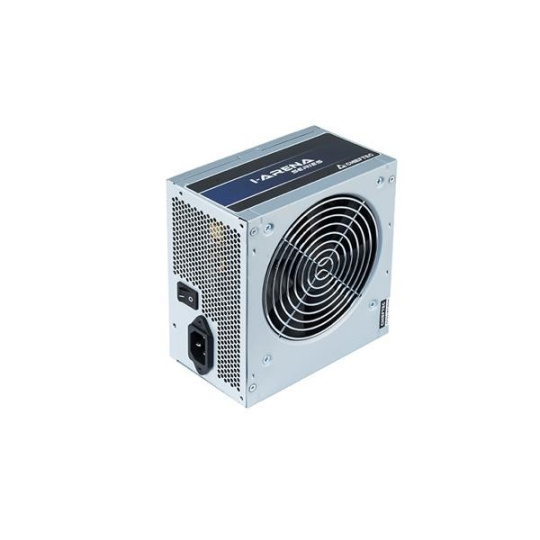

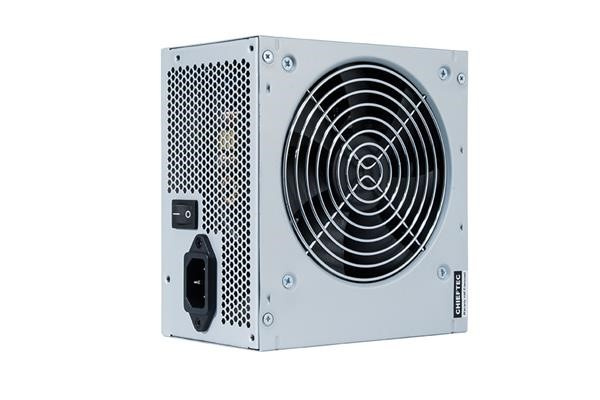

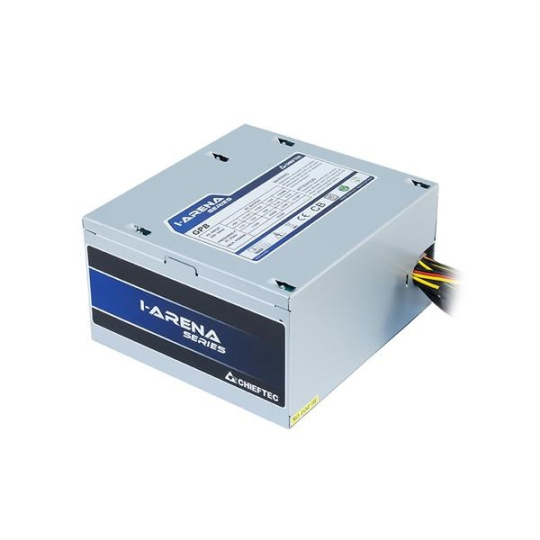

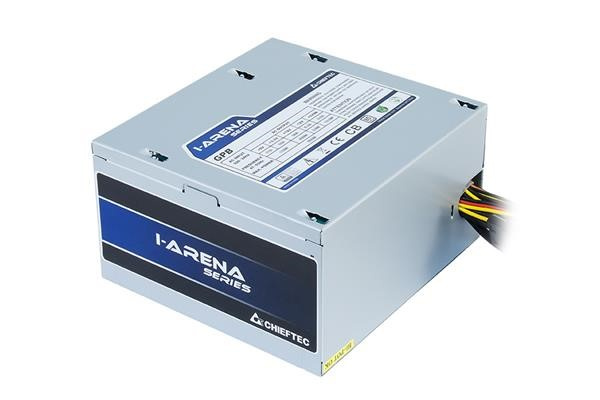

CHIEFTEC zdroj iARENA, GPB-450S, 450W, 120mm fan, PFC, bulk, účinnost 85%
Popis a parametry
CHIEFTEC zdroj iARENA, GPB-450S, 450W, 120mm fan, PFC, bulk, účinnost 85%
Performance
| AC Input: | 200-240V / 3.5A |
| Frequency: | 47-63 Hz |
| +5V: | 16A |
| +3,3V: | 17A |
| +5V & +3,3V combined: | 100W |
| +12V 1: | 34A/408W |
| +12V 2: | N/A |
| +12V 1 & +12V 2 combined: | N/A |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A / 3,6W |
| +5VSB: | 2,5A / 12,5W |
| Maximum Load: | 450W |
Connectors
Native cable:
| 20+4PIN: | |
| ===400mm===[20+4PIN] | |
| SATA: | |
| ===400mm===[Molex]===150mm===[SATA]===150mm===[SATA] | |
| Molex/Sata: | |
| ===400mm===[SATA]===150mm===[Molex]===150mm===[Molex] | |
| Molex/Sata: | |
| ===400mm===[SATA]===150mm===[SATA] | |
| 6+2PIN PCIe: | |
| ===400mm===[6+2PIN PCIe] | |
| 4PIN 12V : | |
| ===400mm===[4PIN 12V] | |
| Specification: | ATX 12V 2.3 |
| Form factor: | PS II |
| Wirkungsgrad: | >85% |
| Dimension (DxWxH): | 140 mm x 150 mm x 87 mm |
| PFC: | Active PFC (0,9) (only 230V) |
| Fan dimension: | 120mm silent fan |
| Security: |
|
| Certificates: |
|
| Warranty: |
|
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory
8pin CPU 1x
Konektory
PCIe 6-pin
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Podsvícení
Bez podsvícení
Výkon zdroje (W)
450
CHIEFTEC zdroj iARENA, GPB-450S, 450W, 120mm fan, PFC, bulk, účinnost 85%
