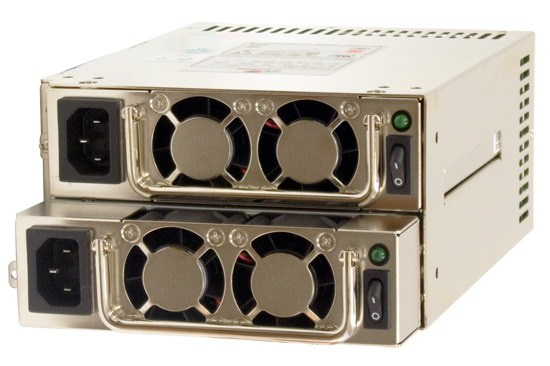

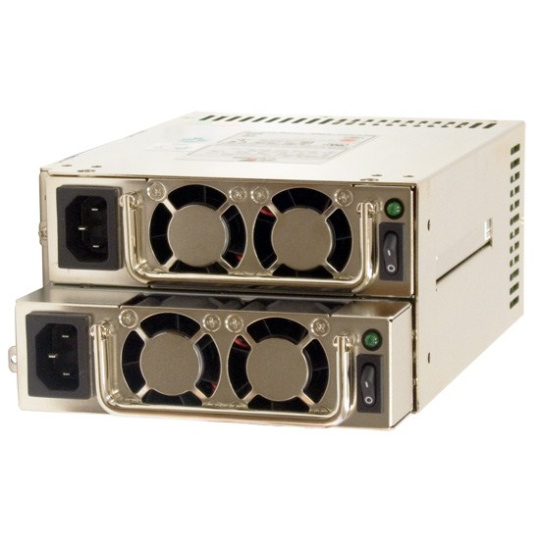

CHIEFTEC redundantní zdroj MRG-5800V, 2x800W, ATX & Intel Dual Xeon-12V V.2.3/EPS-12V, PS-2 type, PFC
CHIEFTEC redundantní zdroj MRG-5800V, 2x800W, ATX & Intel Dual Xeon-12V V.2.3/EPS-12V, PS-2 type, PFC
http://www.chieftec.eu/en/psus/redundant-psus/mrg-5800v.html
Technical Data:
| AC Input:
| 100V / 9A | 240V / 5A
|
| Frequency:
| 47-63 Hz
|
| +5V:
| 32A
|
| +3,3V:
| 32A
|
| +12V1:
| 65A
|
| +5V & +3,3V combined:
| 190W
|
| +5V & +3,3V +12V1 combined:
| 780W
|
| P.F.:
| >0,9
|
| -5V:
| N/A
|
| -12V:
| 0,8A
|
| +5VSB:
| 3,5A
|
| Maximum Load:
| 800W
|
Connectors:
| AC Input:
| 100V / 9A | 240V / 5A
|
| Frequency:
| 47-63 Hz
|
| +5V:
| 32A
|
| +3,3V:
| 32A
|
| +12V1:
| 65A
|
| +5V & +3,3V combined:
| 190W
|
| +5V & +3,3V +12V1 combined:
| 780W
|
| P.F.:
| >0,9
|
| -5V:
| N/A
|
| -12V:
| 0,8A
|
| +5VSB:
| 3,5A
|
| Maximum Load:
| 800W
|
Features:
| Specification:
| ATX 12V 2.3
|
| Form factor:
| PS II
|
| Efficiency:
| >80%
|
| Dimension (DxWxH):
| 210 mm x 150 mm x 87 mm
|
| PFC:
| Active PFC (0,9)
|
| Fan:
| 40mm Fan (2x 40mm pro Modul)
|
| Security:
| Kompletter Metallrahmen
|

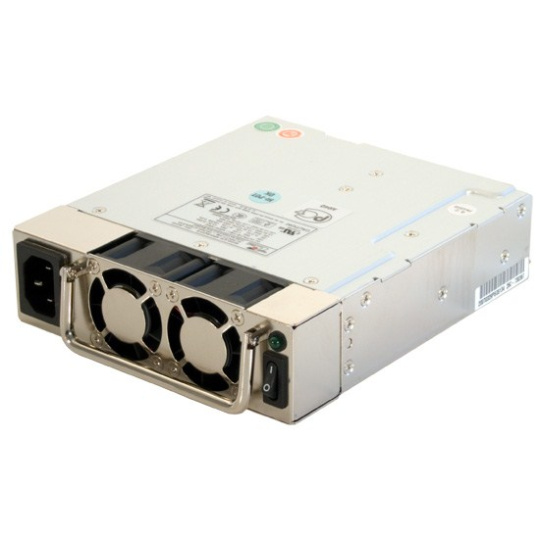

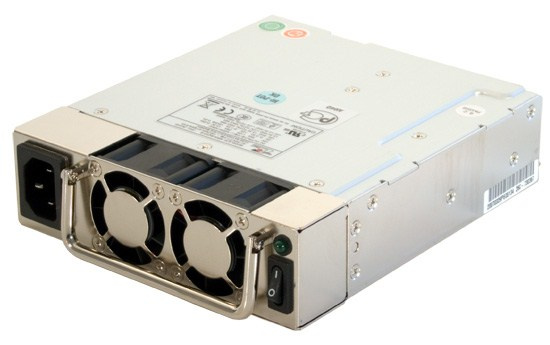

| 2 x 800W Module
| |
| TTL-Signal
| |
| Buzzer- & LED Alarm
| |
| Hot-swap, hot-plug features
| |
| Full range Eingang 100V~240V
| |
| Meet FCC, CISPR EMI regulation
| |
| Balanced load sharing design
| |
| UVP (Undervoltage protection)
| |
| Dual OVP (Overvoltage protection)
| |
| SCP (Short-circuit protection)
| |
| OPP (Overload protection)
| |
| OCP (Overcurrent protection)
| |
| OTP (Over Temperature Protection)
| |
| MTBF (mean time between failure): >100.000h
|
