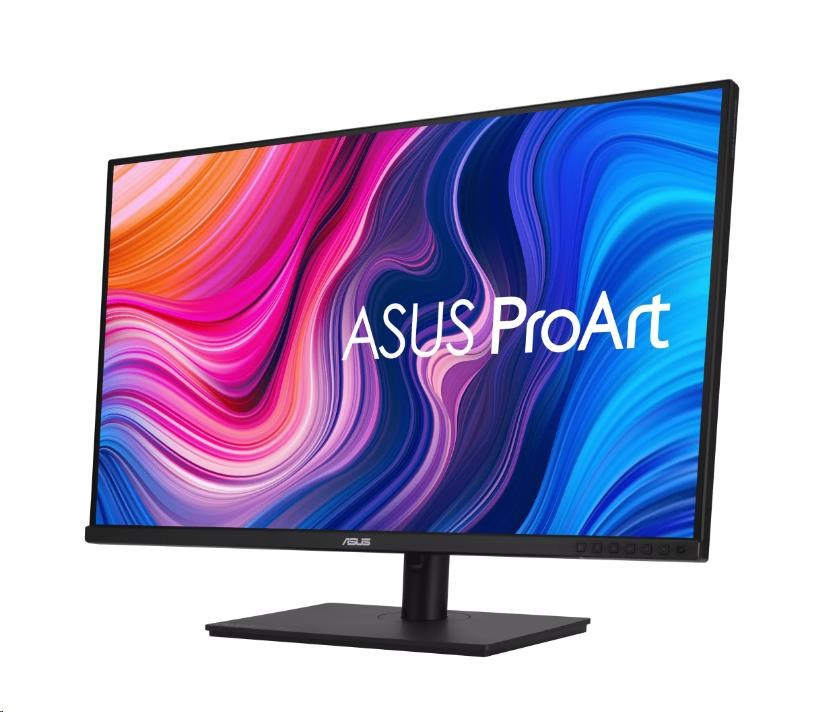

ASUS LCD 32" PA328CGV 2560x1440 ProArt DP HDMI USB-C-VIDEO+90W VESA 100x100 PIVOT 100% sRGB/Rec.709, Color Accuracy
Popis a parametry
ASUS LCD 32" PA328CGV 2560x1440 ProArt DP HDMI USB-C-VIDEO+90W VESA 100x100 PIVOT 100% sRGB/Rec.709, Color Accuracy
https://www.asus.com/Displays-Desktops/Monitors/ProArt/ProArt-Display-PA328CGV/
Display
Panel Size (inch) : 32
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR?10, H/V) : 178°/ 178°
Pixel Pitch : 0.277mm
Resolution : 2560x1440
Color Space (sRGB) : 100%
Color Space (DCI-P3) : 95%
Brightness (HDR, Peak) : 600 cd/?
Brightness (Typ.) : 450cd/?
Contrast Ratio (Typ.) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Display Colors : 1073.7M (10 bit)
Response Time : 5ms(GTG)
Refresh Rate (Max) : 165Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
Trace Free Technology : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : Rapid Rendering
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ?E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
VRR Technology : FreeSync™ Premium Pro
ProArt Widget : Yes
Low Blue Light : Yes
Multiple HDR Mode : Yes
Audio Feature
Speaker : Yes(2Wx2)

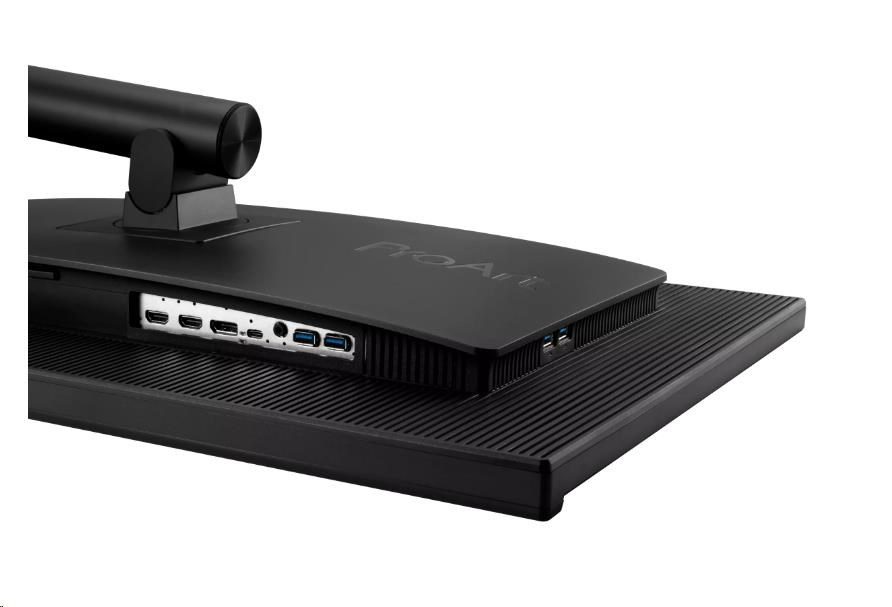

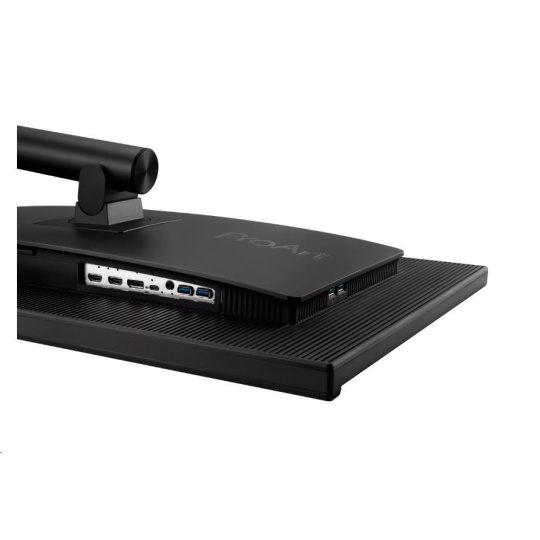

I/O Ports
USB-C x 1
DisplayPort 1.4 x 1
HDMI(v2.0) x 2
USB Hub : Yes(4 ports USB 3.1)
Earphone Jack : Yes

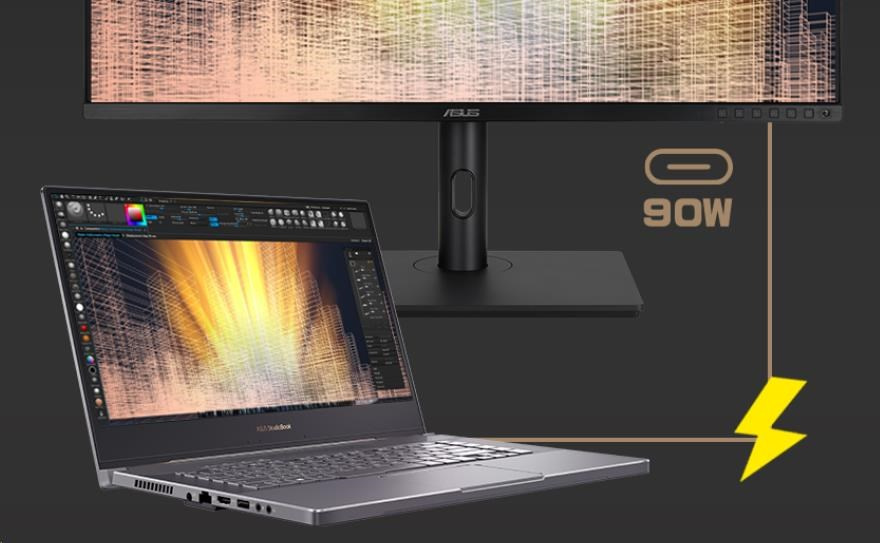

USB-C Power Delivery : 90W
Signal Frequency
Digital Signal Frequency : HDMI: 30~222 KHz (H) / 48~144 Hz (V)
DP: 30~250 KHz (H) / 48~165 Hz (V)
USB-C: 30~250 KHz (H) / 48~165 Hz (V)

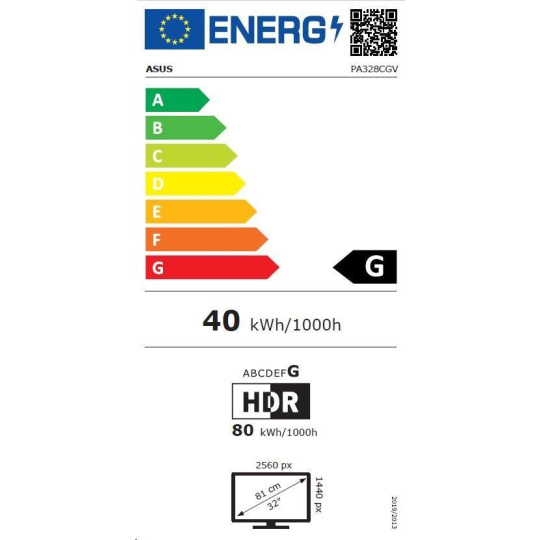

Power Consumption
Power Consumption : <28W
Power Saving Mode : <0.5W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz

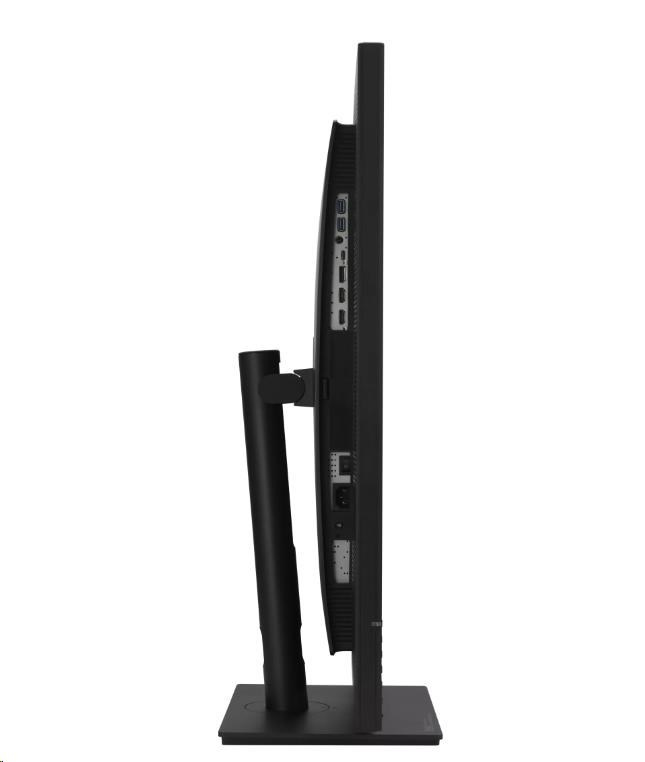

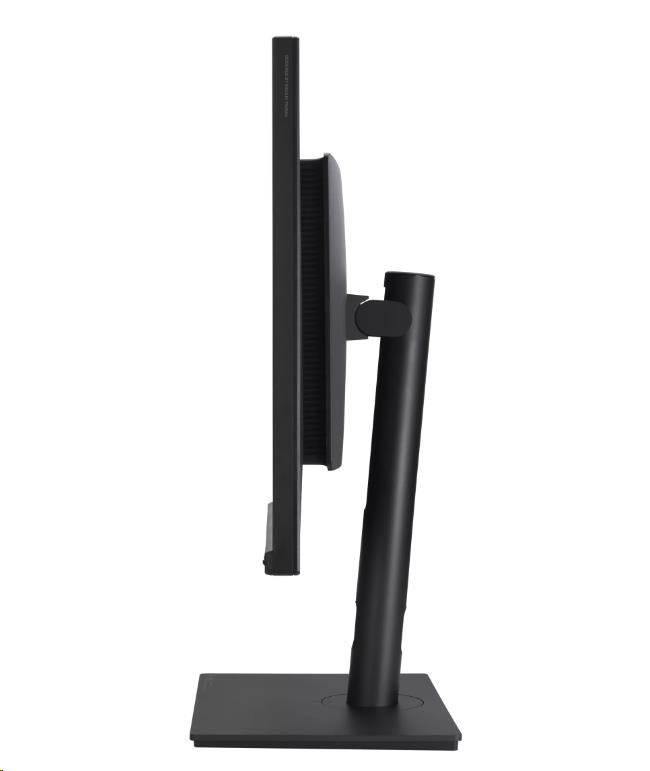

Mechanical Design

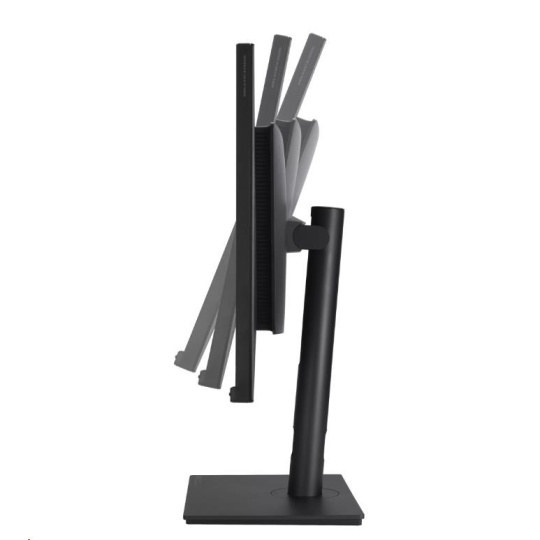

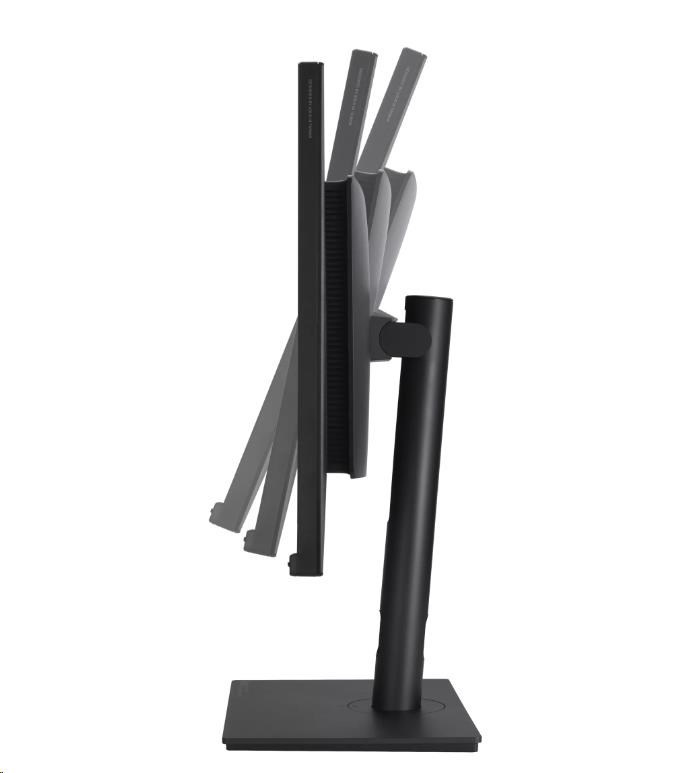

Tilt : Yes (+23° ~ -5°)
Swivel : Yes (+30° ~ -30°)

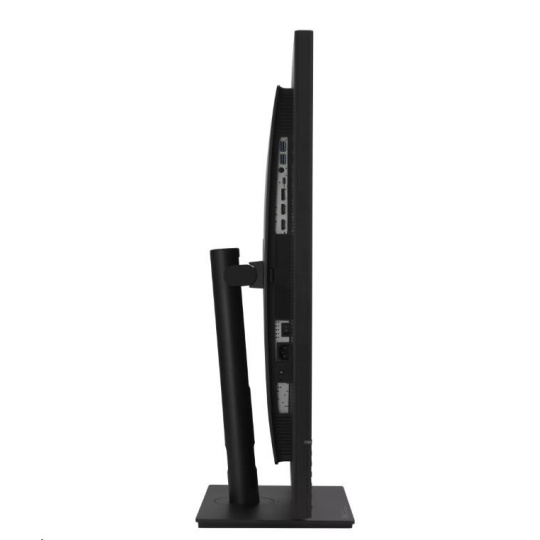

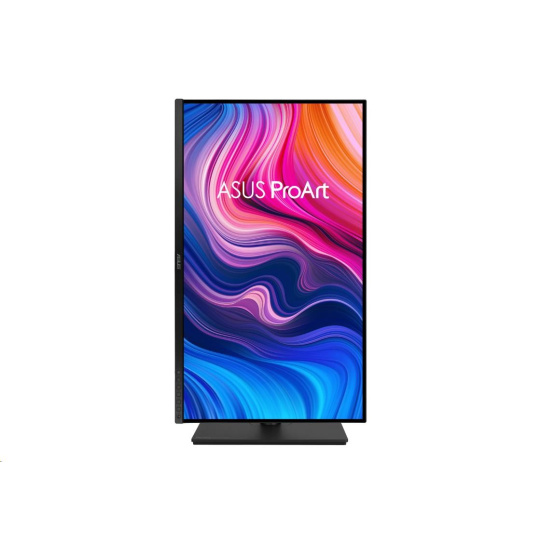

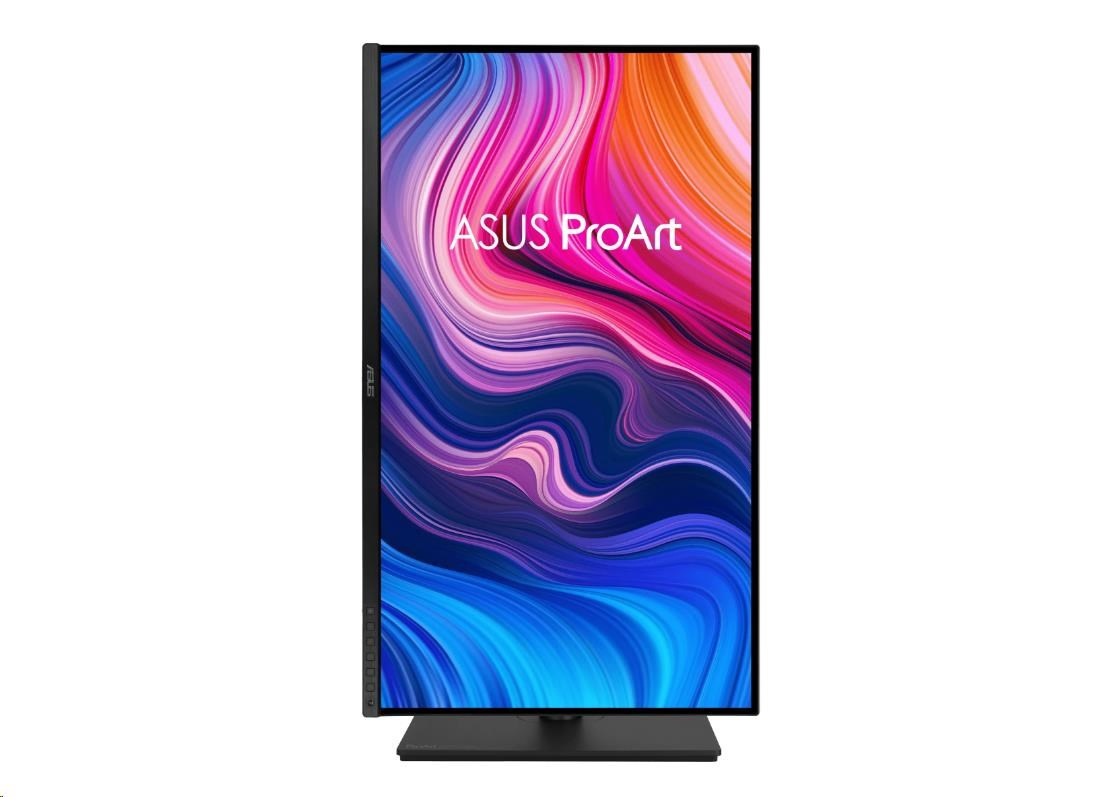

Pivot : Yes (+90° ~ -90°)

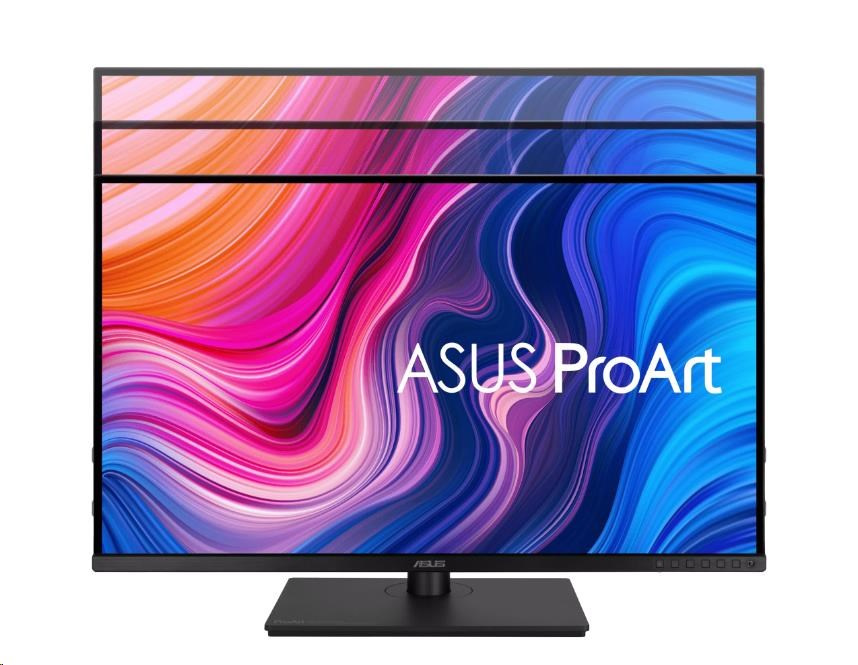

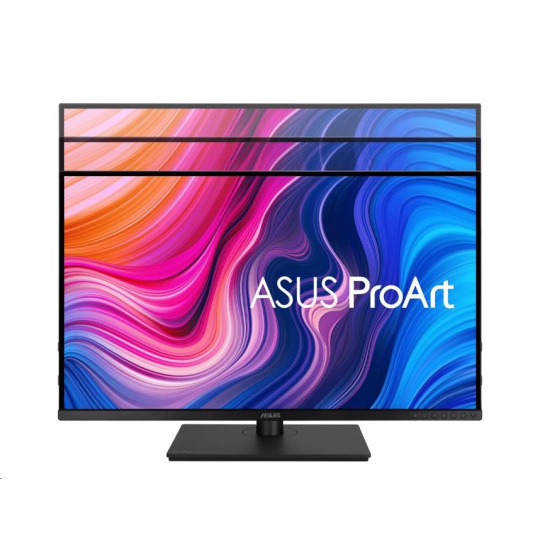

Height Adjustment : 0~130mm

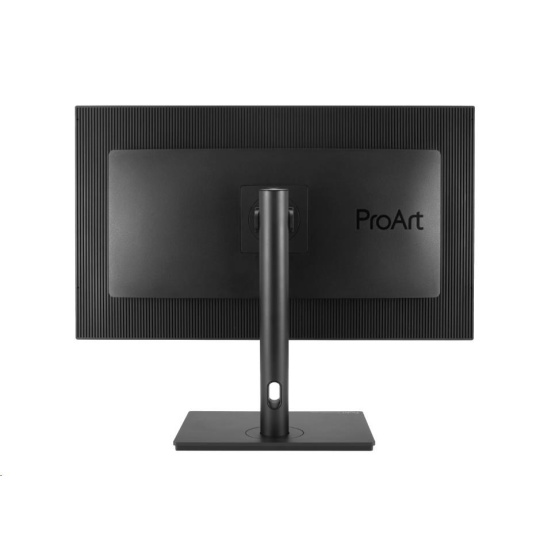

VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 727.08 x (471.48~601.48) x 245 mm
Phys. Dimension without Stand (W x H x D) : 727.08 x 428.13 x 67.72 mm
Box Dimension (W x H x D) : 840 x 516 x 280 mm
Weight (Esti.)
Net Weight with Stand : 11.7 Kg
Net Weight without Stand : 7.15 Kg
Gross Weight : 16.8 Kg
Accessories (vary by regions)
Color pre-calibration report
Desk C Clamp
DisplayPort cable
HDMI cable
Power cord
USB-C cable
Warranty Card
Welcome Card
Certificate
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 600
AMD FreeSync Premium Pro
Calman Verified
.
Display
Panel Size (inch) : 32
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR?10, H/V) : 178°/ 178°
Pixel Pitch : 0.277mm
Resolution : 2560x1440
Color Space (sRGB) : 100%
Color Space (DCI-P3) : 95%
Brightness (HDR, Peak) : 600 cd/?
Brightness (Typ.) : 450cd/?
Contrast Ratio (Typ.) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Display Colors : 1073.7M (10 bit)
Response Time : 5ms(GTG)
Refresh Rate (Max) : 165Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
Trace Free Technology : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : Rapid Rendering
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : ?E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
VRR Technology : FreeSync™ Premium Pro
ProArt Widget : Yes
Low Blue Light : Yes
Multiple HDR Mode : Yes
Audio Feature
Speaker : Yes(2Wx2)
I/O Ports
USB-C x 1
DisplayPort 1.4 x 1
HDMI(v2.0) x 2
USB Hub : Yes(4 ports USB 3.1)
Earphone Jack : Yes
USB-C Power Delivery : 90W
Signal Frequency
Digital Signal Frequency : HDMI: 30~222 KHz (H) / 48~144 Hz (V)
DP: 30~250 KHz (H) / 48~165 Hz (V)
USB-C: 30~250 KHz (H) / 48~165 Hz (V)
Power Consumption
Power Consumption : <28W
Power Saving Mode : <0.5W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+23° ~ -5°)
Swivel : Yes (+30° ~ -30°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 727.08 x (471.48~601.48) x 245 mm
Phys. Dimension without Stand (W x H x D) : 727.08 x 428.13 x 67.72 mm
Box Dimension (W x H x D) : 840 x 516 x 280 mm
Weight (Esti.)
Net Weight with Stand : 11.7 Kg
Net Weight without Stand : 7.15 Kg
Gross Weight : 16.8 Kg
Accessories (vary by regions)
Color pre-calibration report
Desk C Clamp
DisplayPort cable
HDMI cable
Power cord
USB-C cable
Warranty Card
Welcome Card
Certificate
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 600
AMD FreeSync Premium Pro
Calman Verified
.
ParametryPorovnání
Formát obrazovky
16:9
Rozlišení displeje
2560x1440
Povrchová úprava displeje
Matný
Rozhraní
HDMI
Rozhraní
USB Type-C
Rozhraní
DisplayPort
Rozhraní
3.5mm Jack
Výbava
Pivot
Výbava
Dokování NTB
Výbava
VESA montáž
Výbava
Redukce modrého světla
Výbava
Redukce blikání (flicker-free)
Výbava
FreeSync
Výbava
Nastavitelná výška
VESA rozměry
100x100
Typ panelu
IPS
Barevná hloubka (bit)
10
Úhlopříčka displeje (")
32
Obnovovací frekvence displeje (Hz)
165
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
11,7
Jas (cd/m2)
450
