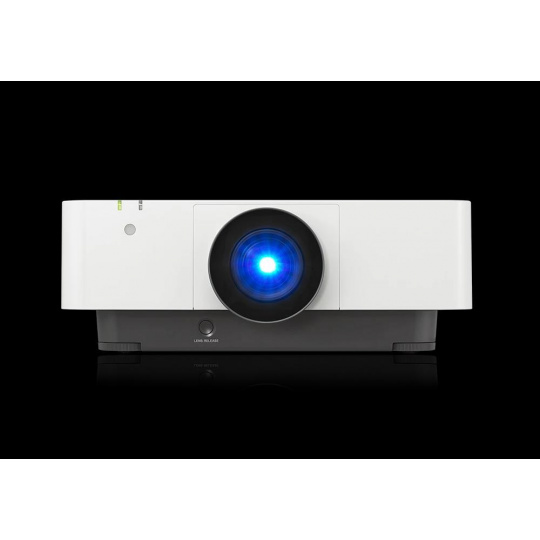

SONY projector VPL-FHZ85 8000lm, WUXGA, Laser, Op.Lenses, White

Skutečné rozlišení projektoru:WUXGA (1920x1200); Technologie:LCD; Zdroj světla:Laser; Svítivost (v ANSI lumenech):8000; Rozhraní:LAN (RJ-45).... více
138 157.85 Kč bez DPH
Na dotaz
167 171 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 329919
EAN: 4548736132849
Záruka: 12 Měsíc(ů)
Výrobce: SONY
Popis a parametry

SONY projector VPL-FHZ85 8000lm, WUXGA, Laser, Op.Lenses, White

Display system
Display system
3 LCD system
Display device
Size of effective display area
New LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels
6,912,000 (1920 x 1200 x 3) pixels
Projection lens *1
Focus
Powered
Zoom - Powered/Manual
Powered
Zoom - Ratio
Approx. x 1.6
Throw ratio
1.39:1 to 2.23:1
Lens shift - Powered/Manual
Powered
Lens shift - Range Vertical
-5%, +70%
Lens shift - Range Horizontal
+/- 32%
Light source
Type
Laser diode
Screen size
Screen size
40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)
Light output *2
Mode: Standard
7300lm *3 / 8000lm (Center)*4
Mode: Middle
5840lm
Mode: Low
-
Colour light output *2
Mode: Standard
7300lm
Mode: Middle
5840lm
Mode: Low
-
Time until light output declines to 50 %*5
Mode: Standard
20000 hours
Mode: Middle
30000 hours
Contrast ratio (full white / full black) *2
Contrast ratio (full white / full black)
?:1
Displayable scanning frequency
Horizontal
15 kHz to 93 kHz
Vertical
23 Hz to 63 Hz
Accepted signal resolution
Computer signal input
Maximum signal resolution: 1920 x 1200 *6
Video signal input
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,3840/60p, 3840/30p, 3840/25p, 3840/24p,4096/60p, 4096/30p, 4096/25p, 4096/24p
Keystone correction (Max.)
Horizontal
+/- 30 degrees
Vertical
+/- 30 degrees
INPUT OUTPUT (Computer / Video / Audio / Control)
INPUT A
RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B
DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A
INPUT C
HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D
HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN
Video input connector: BNC
Audio input connector: Shared with input A
OUTPUT A
Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack
OUTPUT B
Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
Audio output, Monitor out connector: Stereo mini jack
REMOTE
D-sub 9-pin (male) / RS232C
LAN
RJ45, 10BASE-T/100BASE-TX
IR (Control S)
Stereo mini jack, Plug in power DC5V
USB
TYPE-A (for F/W update) , TYPE-A (for Power supply)
Acoustic Noise *2
Acoustic Noise (Mode: Standard / Middle)
38 dB / 36 dB
Operating temperature / Operating humidity
Operating temperature / Operating humidity
0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)
Storage temperature / Storage humidity
Storage temperature / Storage humidity
-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power requirements
Power requirements
AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz / 60 Hz
Power consumption
AC 100 V to 120 V
Mode: Standard: 506 W
AC 220 V to 240 V
Mode: Standard: 474 W
Power consumption (Standby Mode)
AC 100 V to 120 V
0.5W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V
0.5W (when “Standby mode” is set to “Low”)
Power consumption (Networked Standby Mode)
AC 100 V to 120 V
9.8 W (LAN)
10.6 W (HDBaseT)
10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
AC 220 V to 240 V
10.9 W (LAN)
11.6 W (HDBaseT)
11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes
Heat dissipation
AC 100 V to 120 V
1617 BTU/h
AC 220 V to 240 V
1727 BTU/h
Dimensions (W x H x D)
Dimensions (W x H x D) (without protrusions)
460 x 169 x 494 mm
18 1/8 x 6 3/4 x 19 1/2 inches
Mass
Mass
Approx. 13 kg (29 lb)
Optional accessories
Projection Lens
VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032
Notes
*1
With supplied standard lens
*2
The figures are approximate. They vary depending on the environment or how the projector is used.
*3
The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
*4
The value is light output measured at centre area of screen in Standard mode, and average of all products shipped.
*5
Estimated time until light output declines to 50 % varies depending on environment.
*6
Available for VESA Reduced Blanking signal.
.
ParametryPorovnání
Svítivost (v ANSI lumenech)
8000
Technologie
LCD
Skutečné rozlišení projektoru
WUXGA (1920x1200)
Rozhraní
LAN (RJ-45)
Zdroj světla
Laser

SONY projector VPL-FHZ85 8000lm, WUXGA, Laser, Op.Lenses, White
