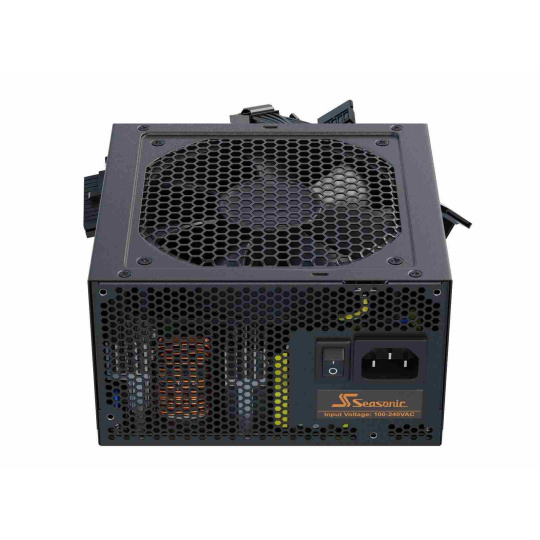

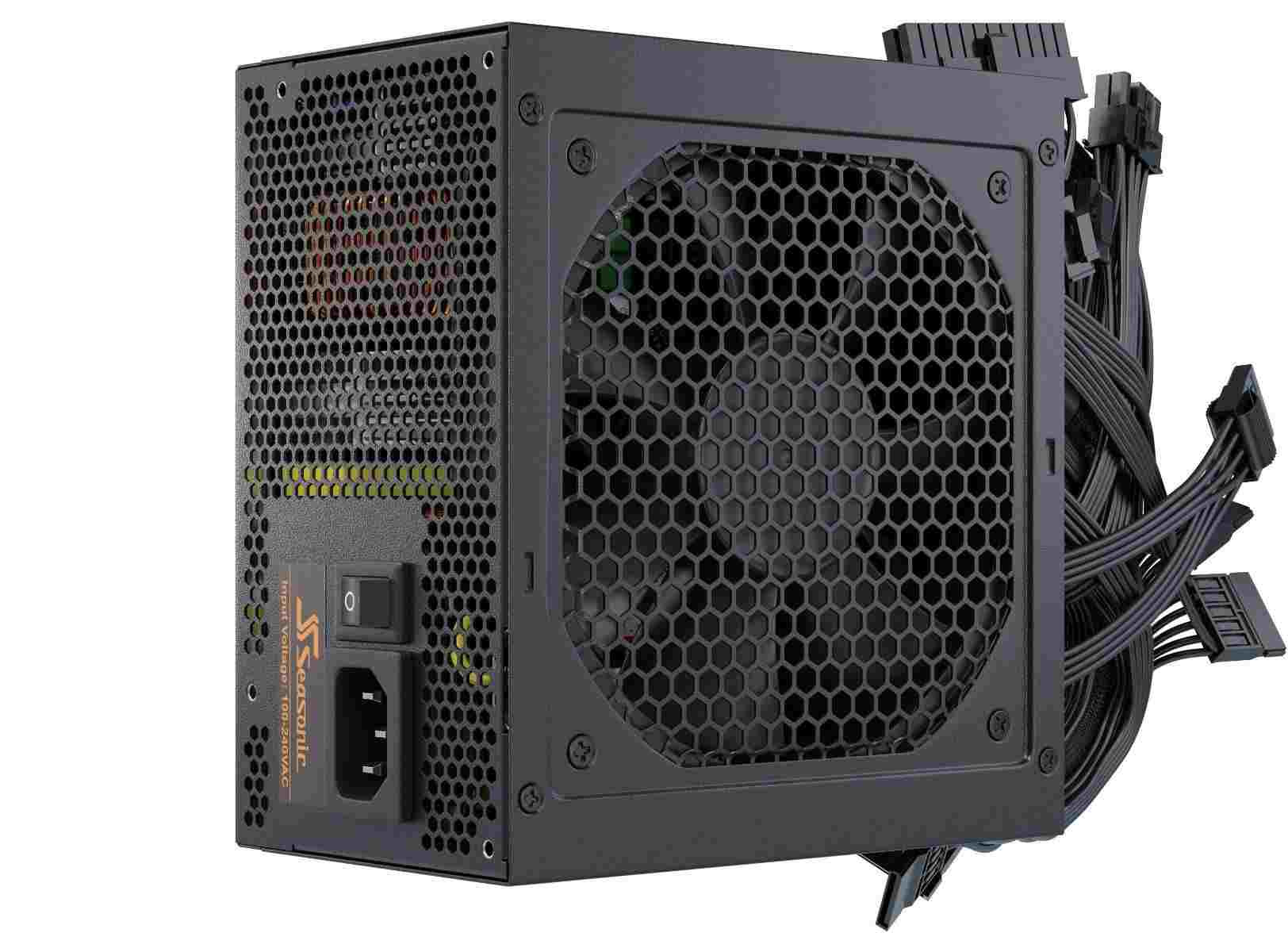

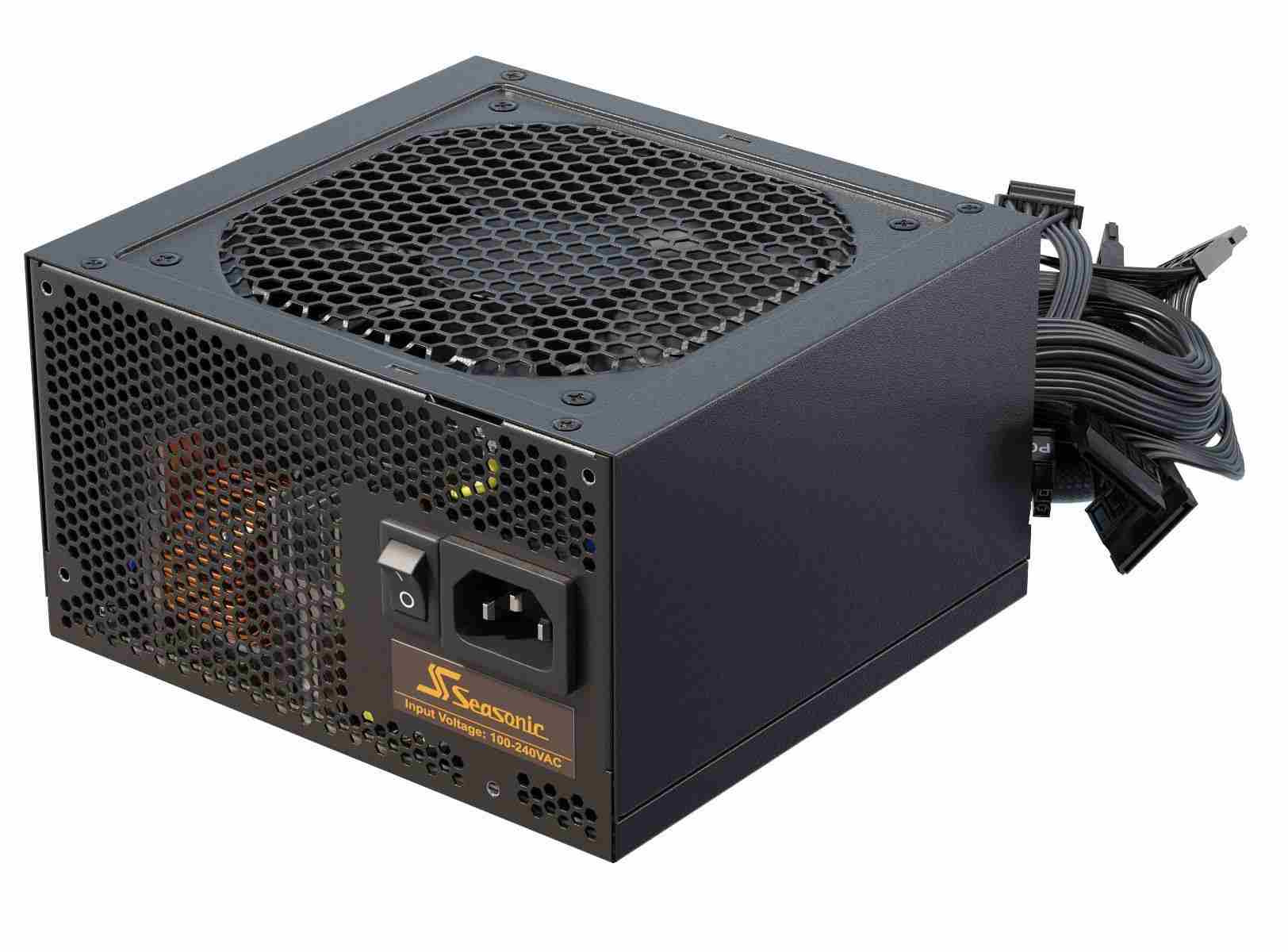

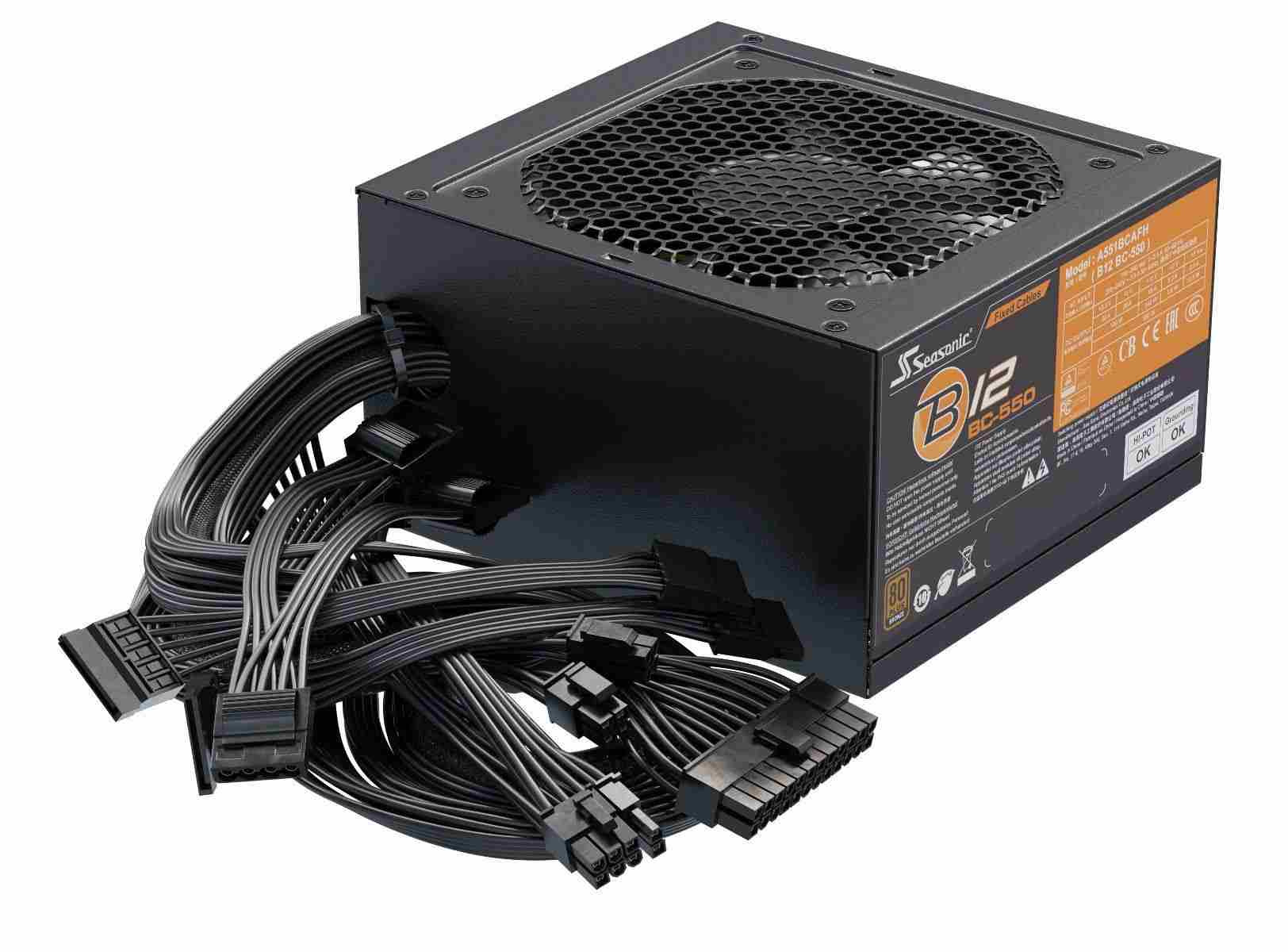

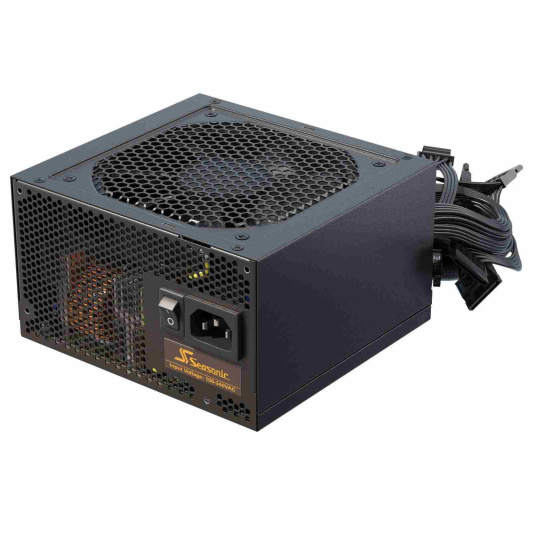

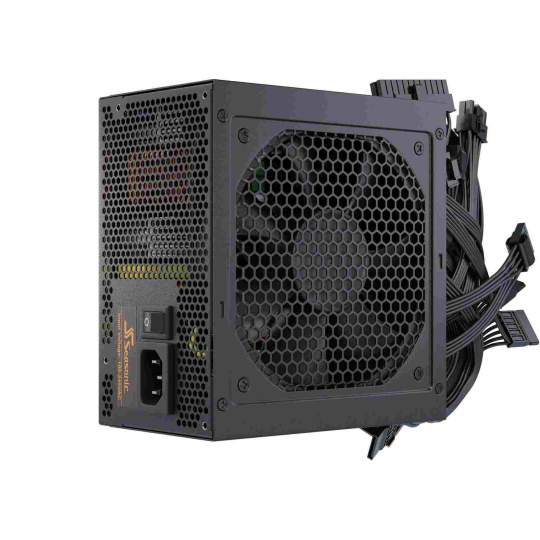

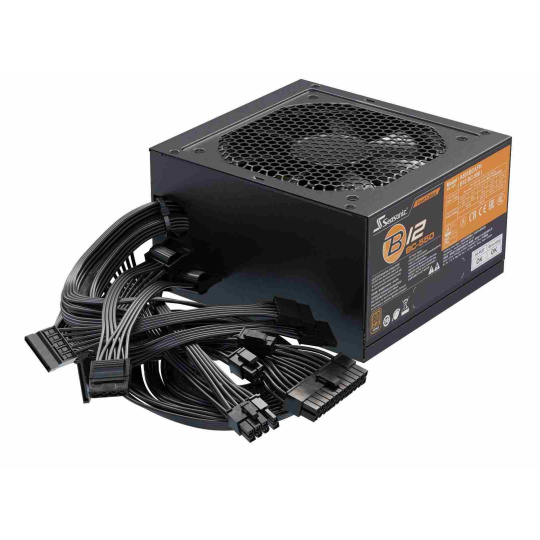

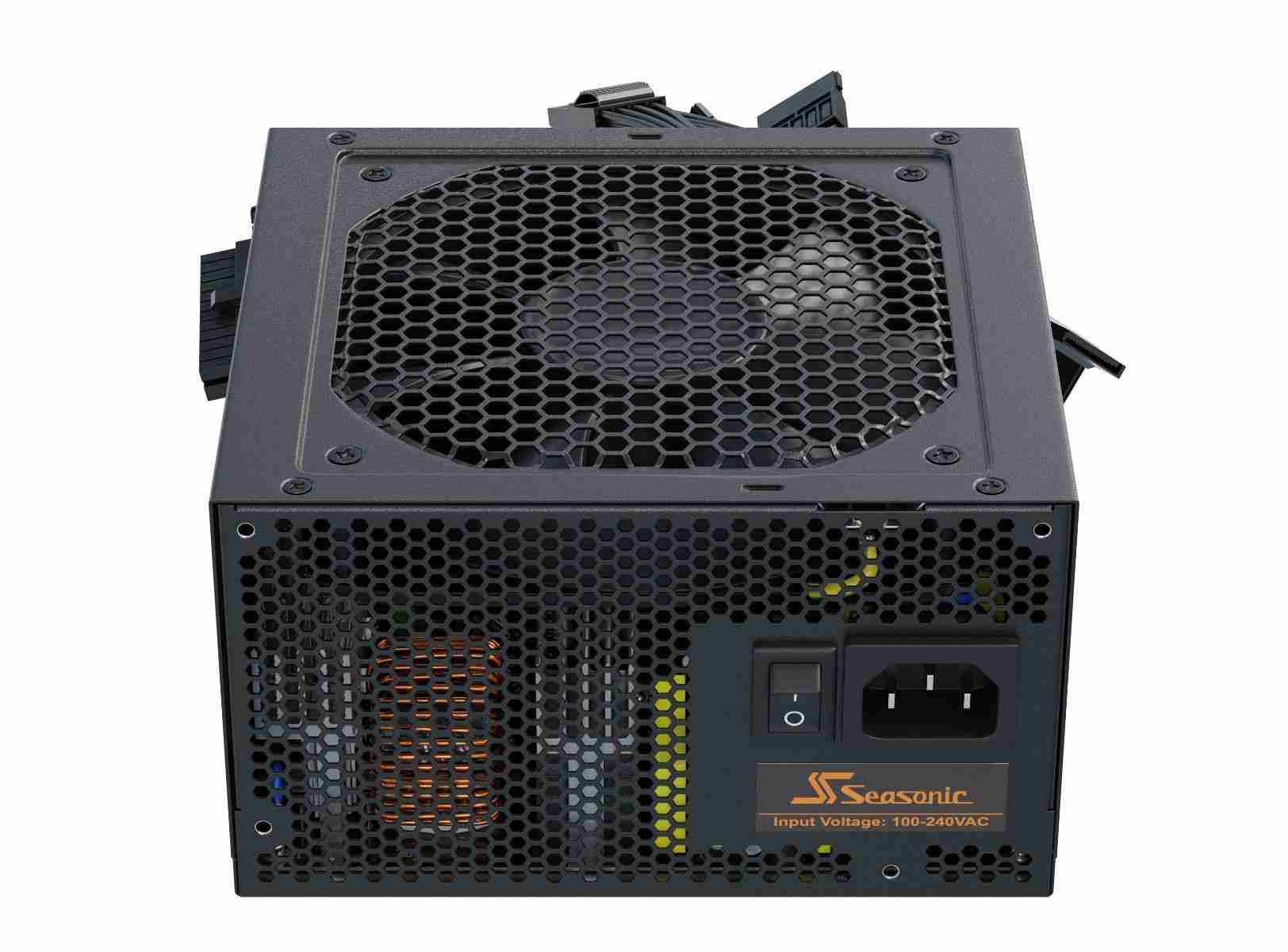

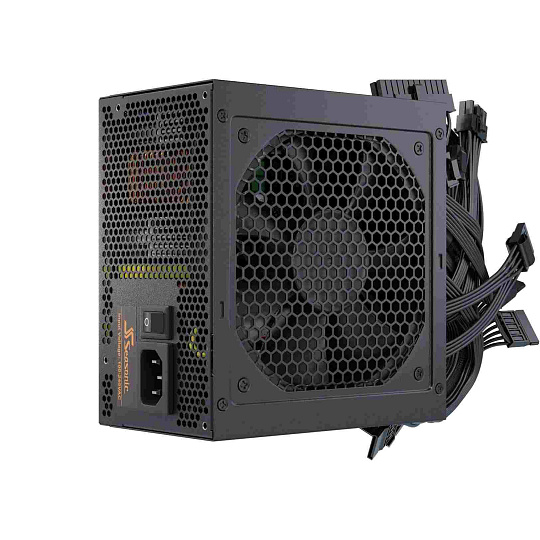

SEASONIC zdroj 750W G12-GC-750
Popis a parametry
SEASONIC zdroj 750W G12-GC-750
B12 BC
The B12 BC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic B12 BC achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the B12 BC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the B12 BC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
- ATX 12 V
- Fixed cables
- 80 PLUS Bronze Certified
- 5 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
TECHNICAL SPECIFICATIONS
| 80PLUS | Bronze |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel ATX 12 V |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Information | |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH |
| Cable Information | |
| Modularity | Fixed cables |
| Cable type | Flat black cables |
| Electrical Features | |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, OCP, SCP |
| Safety and Environmental | |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
8pin CPU 1x
Konektory
PCIe 6-pin
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory
Molex
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ne
Podsvícení
Bez podsvícení
Výkon zdroje (W)
750
