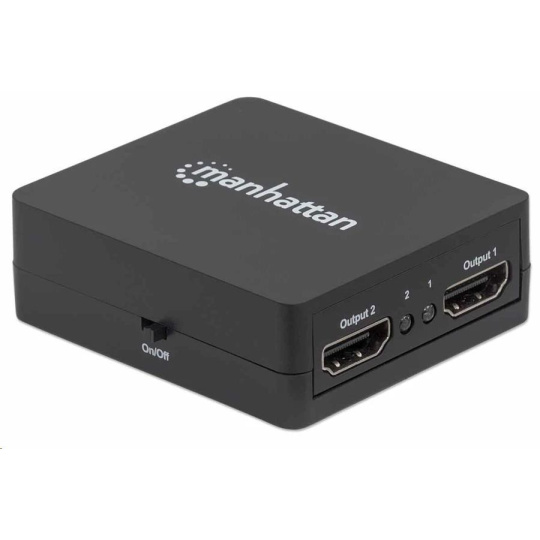

1080p 2-Port HDMI Splitter
Easily distribute a single HDMI signal to multiple displays.The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. Flexible Solution for Many A/V ApplicationsIdeal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications.Quality Construction and Easy InstallationFull compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.
- Displays video from one HDMI source on two HD displays
- Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
- Cascadable up to three levels to expand signal distribution to more displays
- HDCP compliant
- Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio
- Supports 1080p HD resolution, 3D video and Deep Color
- Supports the video amplifier bandwidth up to 2.25 Gbps
- Plug-and-play installation; no special setup or remote
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
TECHNICAL SPECIFICATIONS
Standards and Certifications | - HDCP 1.0 / 1.1 / 1.2 - DVI 1.0 - CE - FCC - RoHS2 |
Package Contents | 1080p 2-Port HDMI Splitter USB power cable Quick Instruction Guide |
General | |
Source-to-switch range | up to 15 m (49 ft.) |
Switch-to-display range | up to 15 m (49 ft.) |
Power | 5 W; USB cable, 0.7 m (2.3 ft.) |
Connections | |

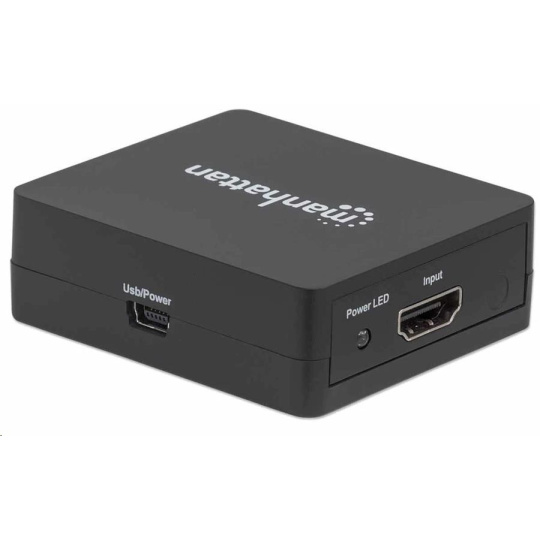

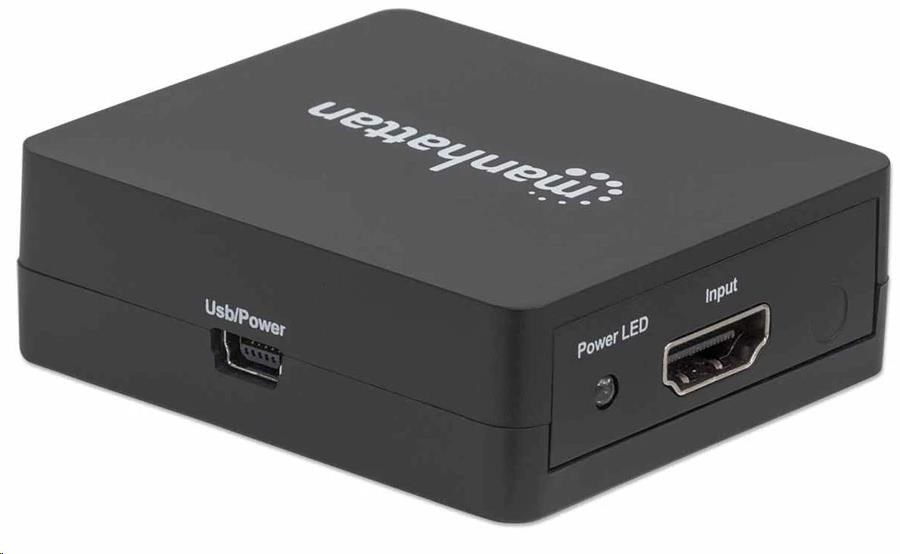

Connections | One HDMI female, 19-pin (input) Two HDMI female, 19-pin (output) One USB Mini-B female, 5-pin (input) |
Signal Input/Output | |
Input video signal | 0.5 – 1.0 V p-p |
Input DDC signal | 5 V p-p (TTL) |
Maximum single-link range | 2.25 Gbps, 1920x1200, 1080p |
Output video | HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0 |
Frequency | 2.25 Gbps / 225 MHz |
Video Resolutions | |
DTV/HDTV | 480i/480p/576i/576p/720p/1080i/1080p |
Physical | |
Dimensions | 60 x 54 x 20 mm (2.4 x 2.1 x 0.8 in.) |
Weight | 0.04 g (0.08 lb.) |
Operating Environment | |
Operation Temperature | 0 – 70°C (32 – 158°F) |
Storage Temperature | -10 – 80°C (14 – 176°F) |
Operation Humidity (noncondensing) | 10 – 85% |
Storage Humidity (noncondensing) | 5 – 90% |
.
