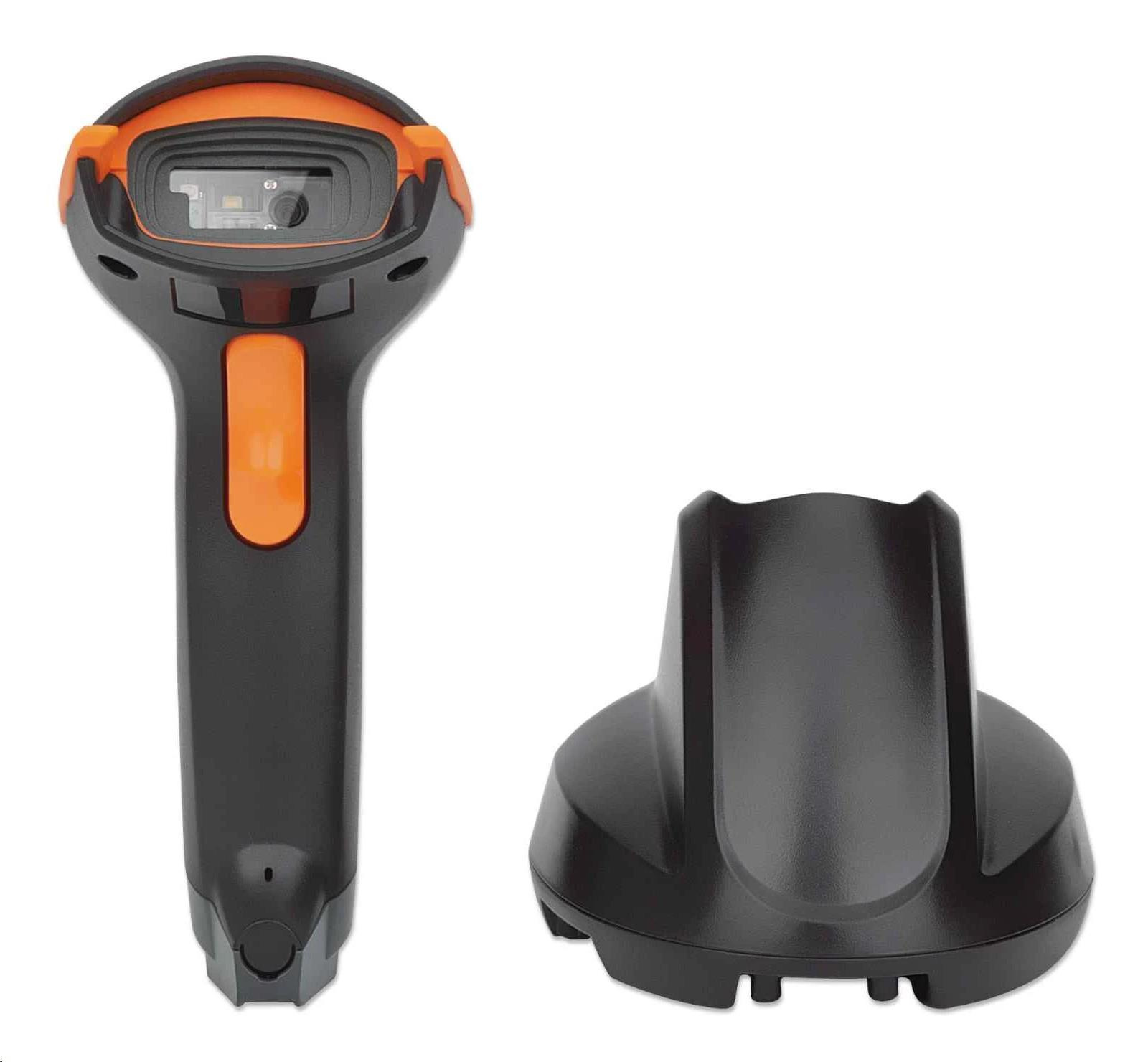

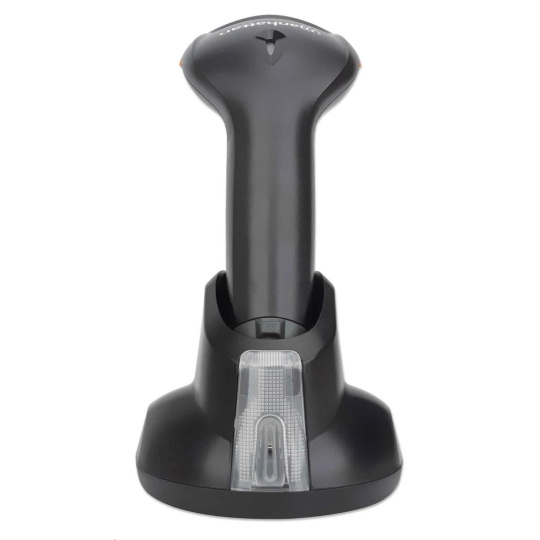

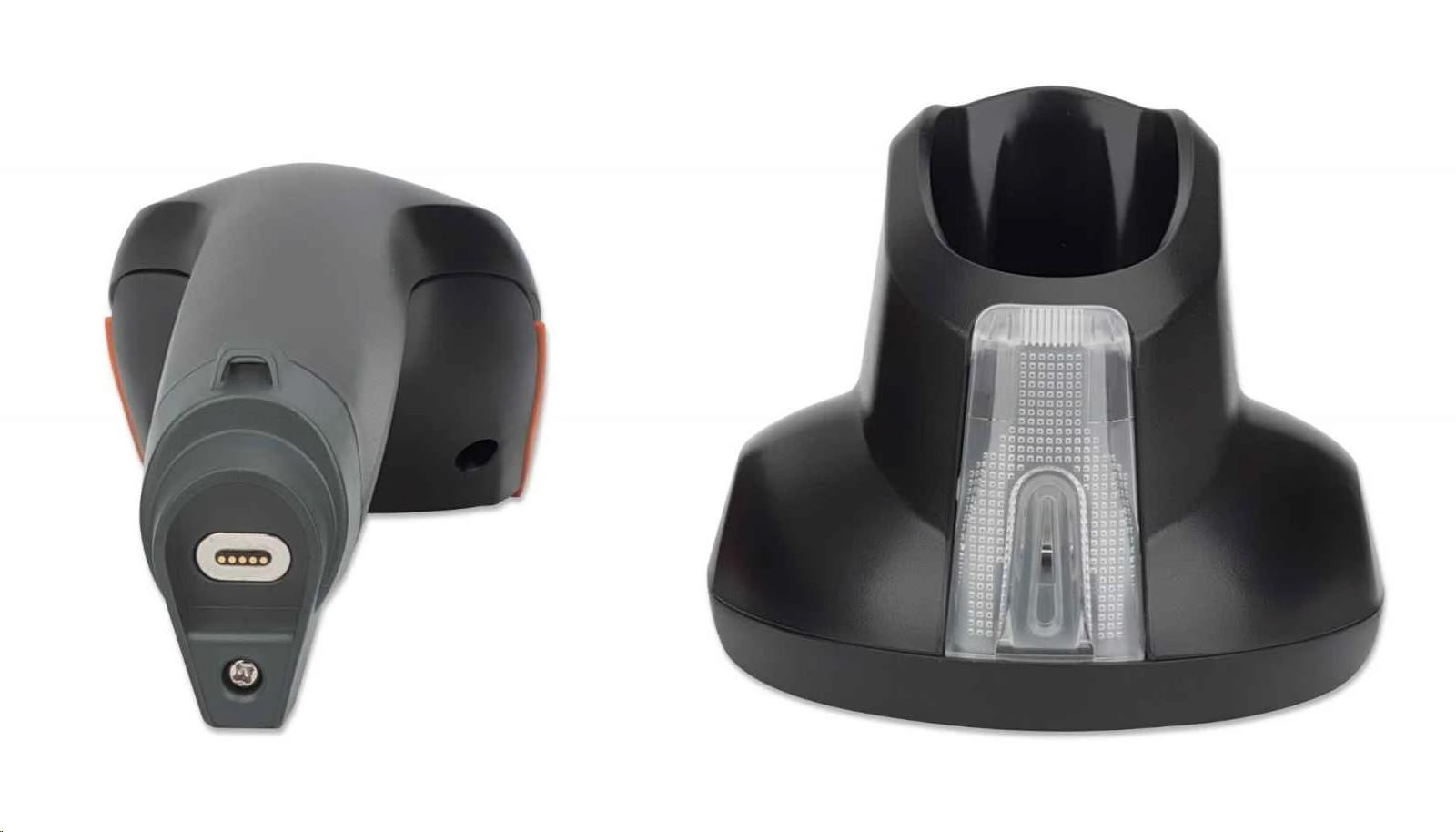

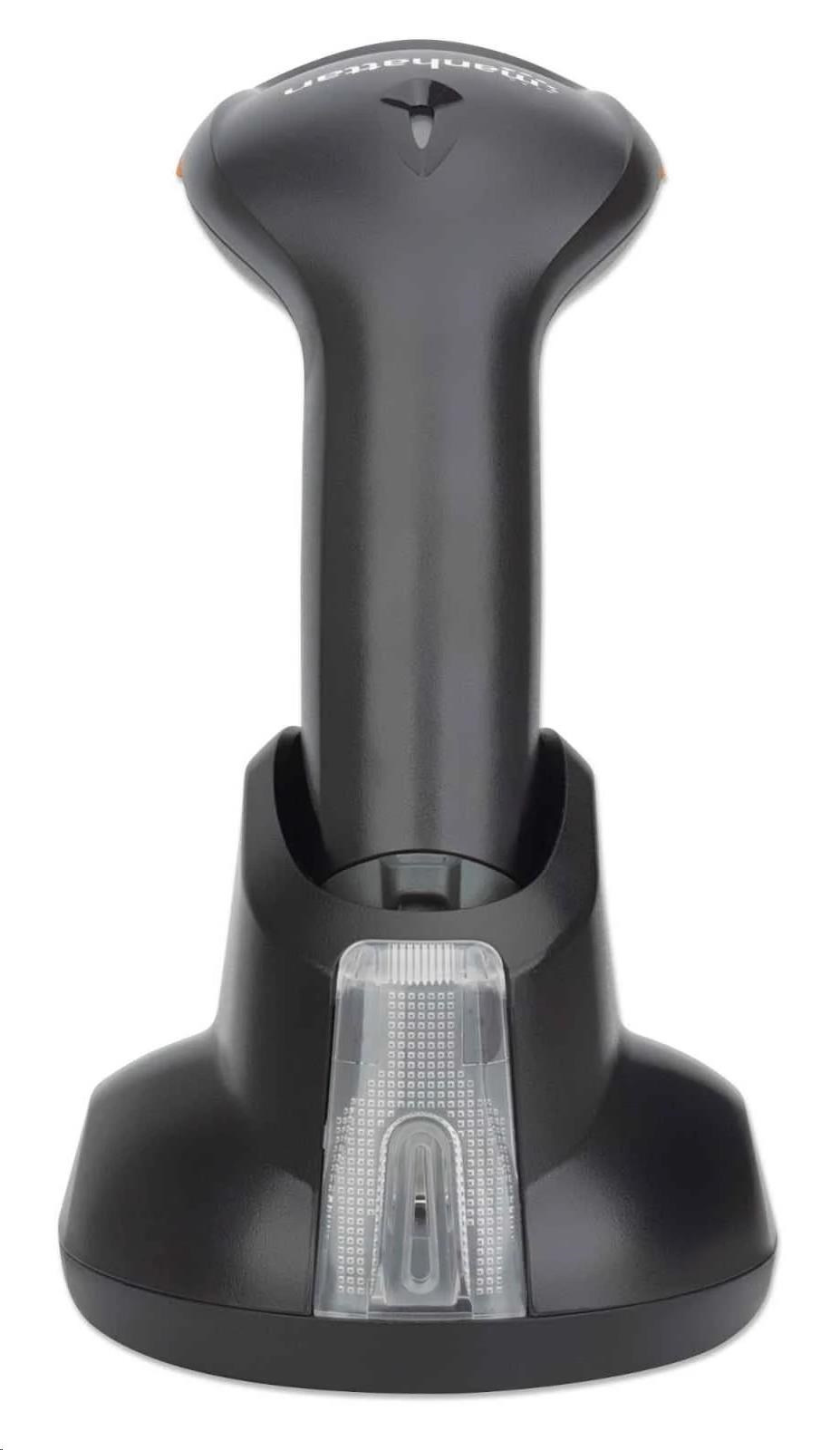

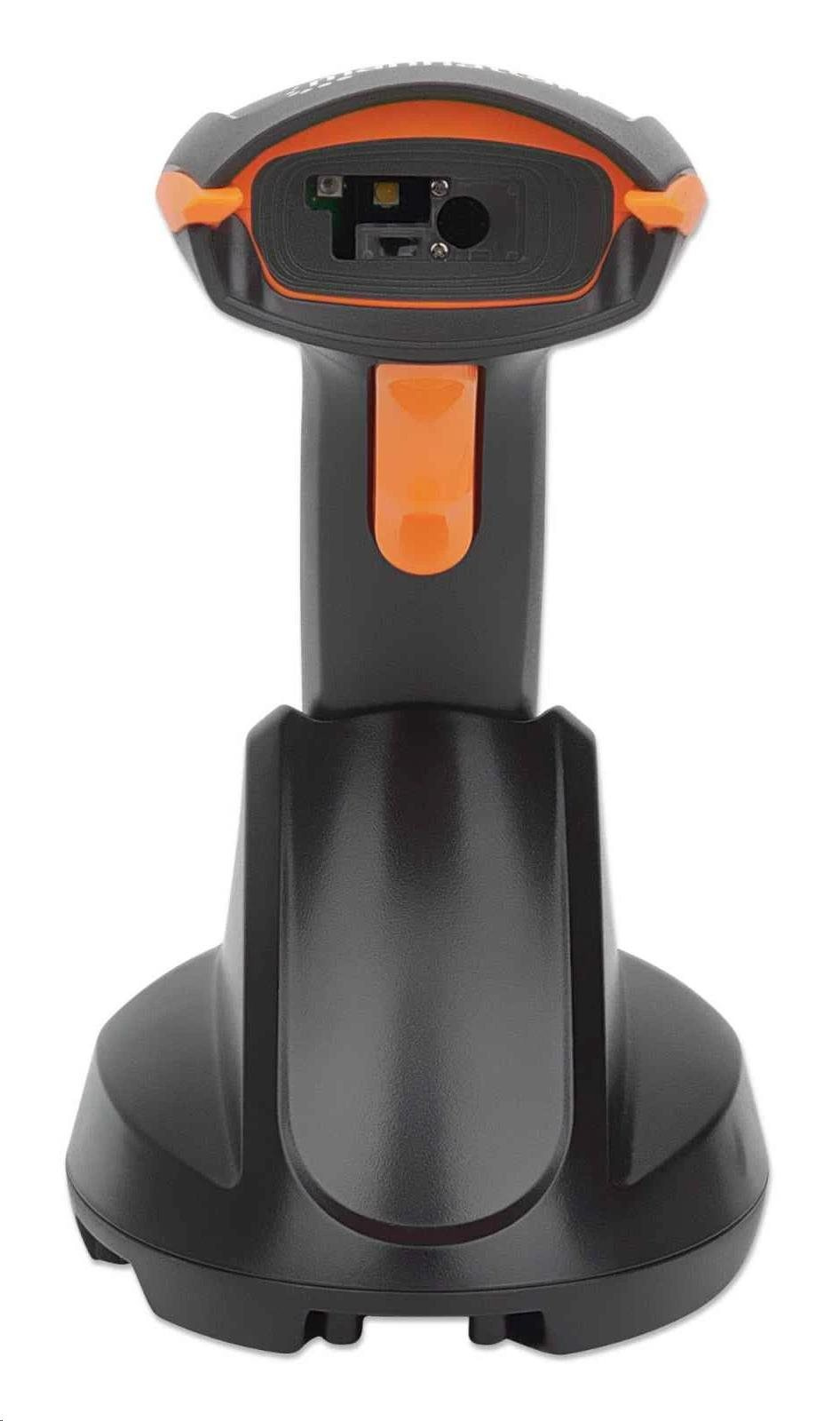

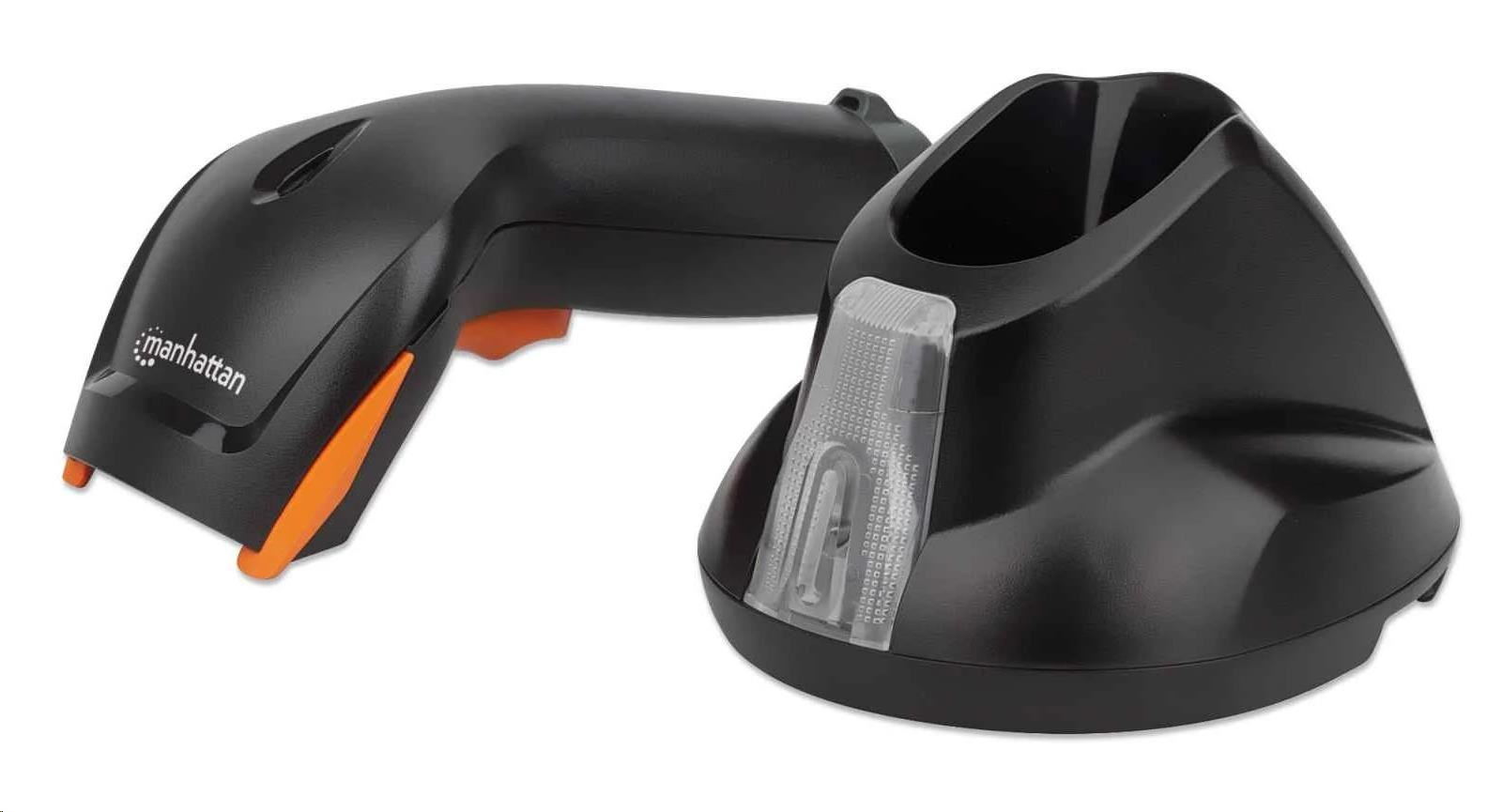

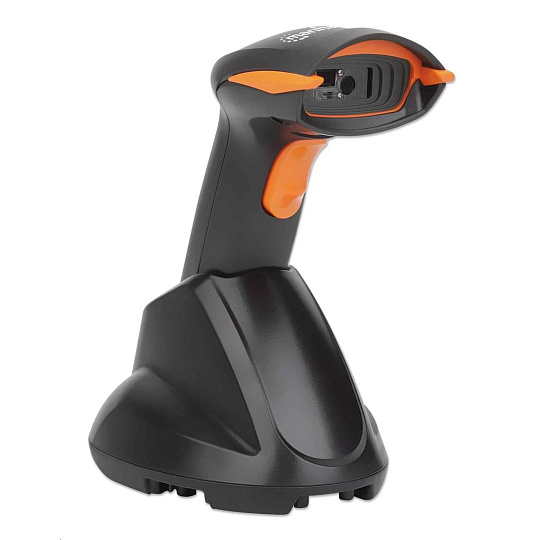

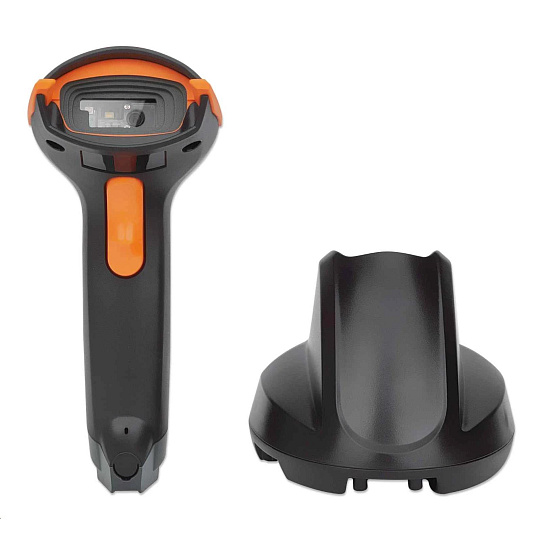

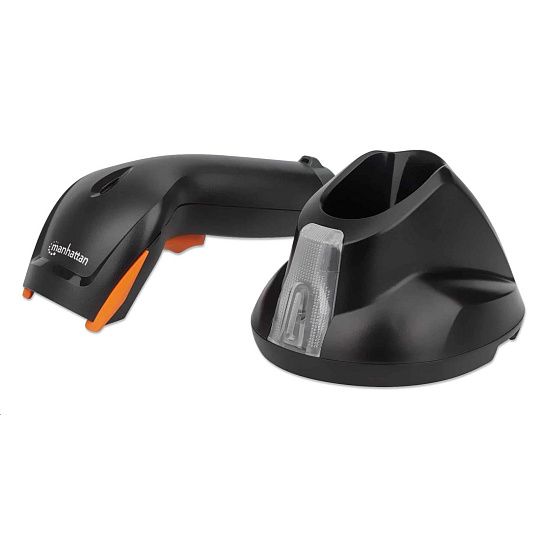

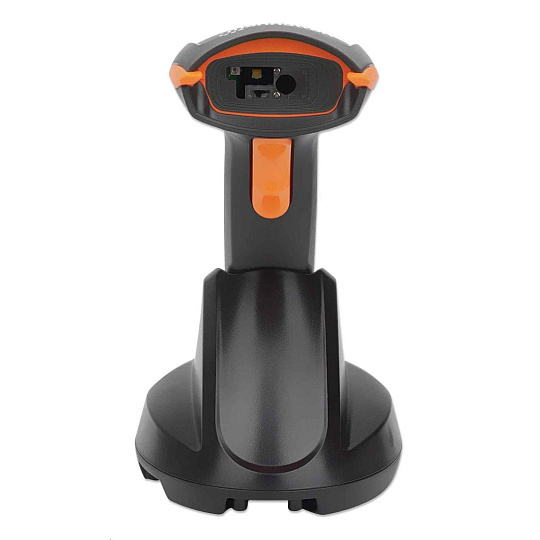

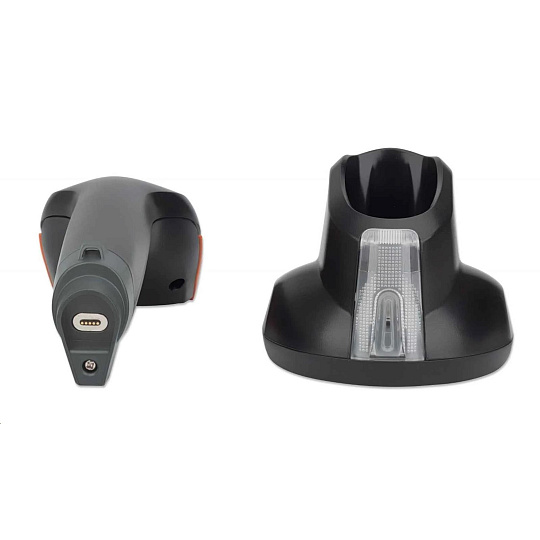

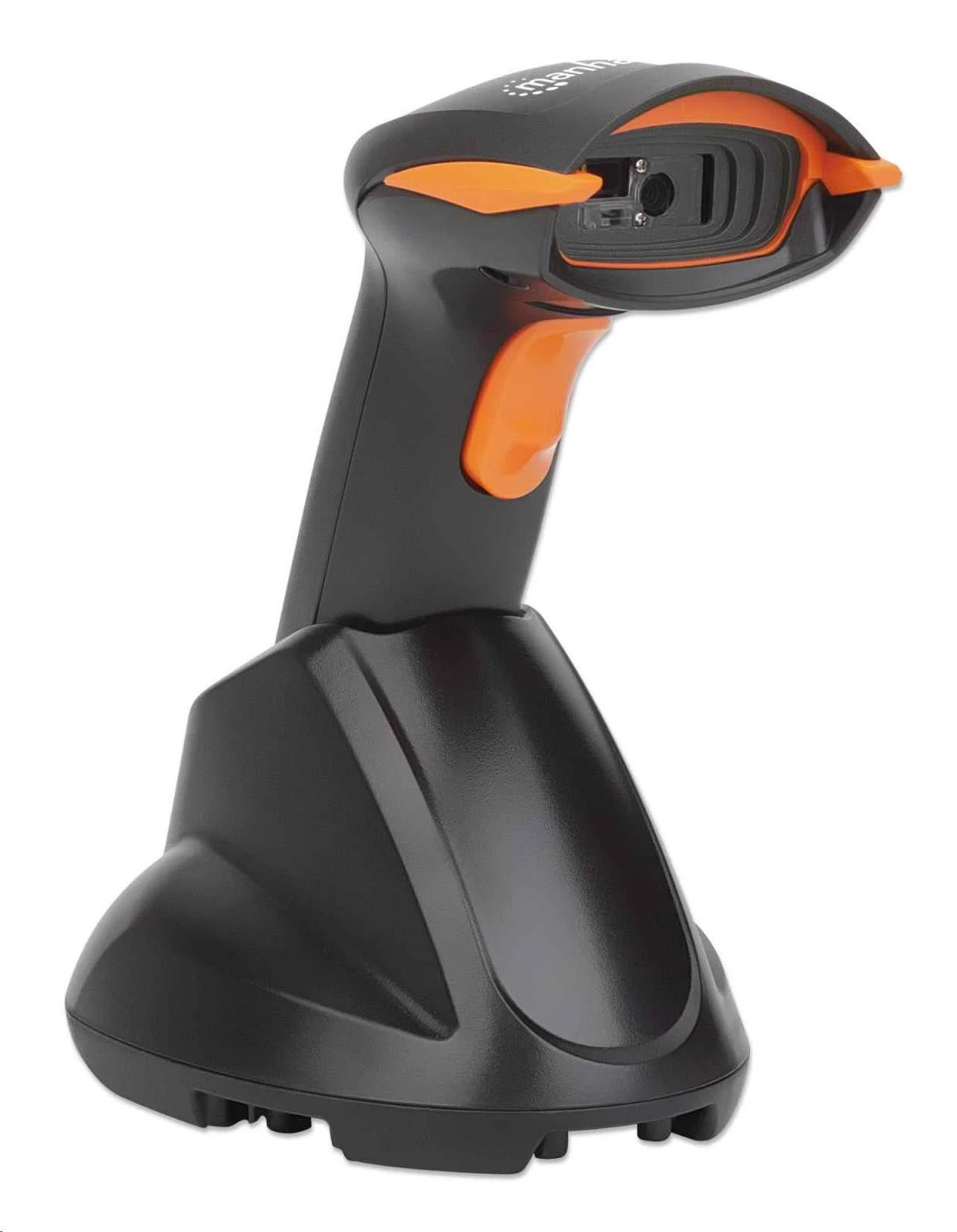

MANHATTAN Barcode Scanner BT Scanner and Cradle Black USB HID, black, Retail Box
MANHATTAN Barcode Scanner BT Scanner and Cradle Black USB HID, black, Retail Box
A 2D Barcode Scanner with wireless freedom to improve speed, accuracy and productivity
This wireless Manhattan 2D Barcode Scanner is an entry-level solution for high-quality scanning to help improve routine transactions, automate paper-based processes and increase productivity. Its 2D scan engine offers speed, accuracy and higher tolerances to reliably read and report popular 1D and 2D barcodes, including UPC/EAN, QR codes and more.
Easy to implement and simple to use, this barcode scanner includes a built-in keyboard wedge decoder that sends scanned data to an active application, where it appears as if it were manually typed or directly keyed in. The versatile USB connection of its charging base integrates with most PCs without any complicated installation. With an accurate read range of up to 250 mm (9.84 in.) and a wireless technology range up to 80 m (264 ft.) from the base, the Manhattan 2D Barcode Scanner offers a practical daily scanning solution in point-of-sale, postal, hospitality, travel, shipping, warehousing, office and other commercial and industrial applications to minimize manual data entry, speed transactions and reduce errors. Its IP42 rating means the scanner is protected against water spray and dust.
- Helps speed data entry, reduce errors and improve efficiency – ideal for retail transactions and automated processes
- Wireless technology with line-of-sight effective range from main device up to 80 m (264 ft.)
- Keyboard wedge decoder that enables scanned data to be displayed as if directly entered from keyboard
- Wide scan field providing quick, accurate reads up to 250 mm (9.84 in.) away
- Detects many popular 1D and 2D symbologies including UPC, EAN and more
- IP42 rating to protect against water spray and dust
- Easy installation and use without software or special training
- Three-year warranty
Standards and Certifications
FCC
CE
RoHS
USB
General
Supports 1D and 2D barcodes
Light source: white light LED
Scan light: CCD
Scanner range: 250 mm
Scan rate: 60 fps
Resolution: 1280 horizontal x 800 vertical pixels
Reading indicator: tone and LED
Ambient light: 100,000 lux maximum (sunlight)
Interface (base): USB-A to RJ50, 10-pin
Switch: trigger
Wireless
HID and SPP profiles
Range: 80 m (264 ft.) in line of sight
Supported Codes
1D: UPC/EAN, UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, Code 39, Code 128, Codabar/NW7, Interleaved 25, Industrial 25, Matrix 25, Code 93, China Post, Code 11, MSI/Plessey, Telepen, GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended
2D: Aztec, Data Matrix, PDF 417, Micro PDF 417, QR Code, Micro QR Code, GM Code, Han Xin Code
Physical
Dimensions: scanner, 173 x 76 x 74 mm (6.81 x 3 x 2.91 in.); base, 131 x 102 x 90 mm (5.16 x 4.06 x 3.54 in.)
Weight: scanner, 160 g (0.35 lbs.); base, 172 g (0.38 lbs.)
Cable length (base to outlet): 1.5 m (5 ft.)
Operating temperature: 0 – 50°C (32°F – 122°F)
Storage temperature: -20 – 70°C (-4°F – 158°F)
Relative humidity: 20 – 95% (non-condensing)
Housing: ABS; IP42 rating to protect against water spray and dust
Electrical
Battery: lithium-ion 3.7 V / 2600 mAh
Input voltage: 5 VDC @ 2 A / input AC 110 – 240 V
Reads per charge: 20,000 continuous reads
Recharge time: 5 hours
Current draw: 445 mA
Package Contents
Wireless 2D Barcode Scanner
Receiver/recharge base
Power adapter
Interchangeable plugs: EU, US, UK, AU
RJ50 to USB cable
Programming Guide
Quick Instruction Guide
