INTEL Server Chassis P4304XXMUXX, 4U, 4x 3,5" fix HDD, bez zdroje
Popis a parametry
INTEL Server Chassis P4304XXMUXX, 4U, 4x 3,5" fix HDD, bez zdroje
| Code Name | Union Peak |
| Essentials | |
| Expected Discontinuance | Q4'19 |
| Limited 3-year Warranty | Yes |
| Extended Warranty Available for Purchase (Select Countries) | Yes |
| Chassis Form Factor | 4U Rack or Pedestal |
| Chassis Dimensions | 17.24" x 24.9" x 6.81" |
| Target Market | Embedded |
| Redundant Fans | Yes |
| Redundant Power Supported | Supported, requires additional power supply |
| Backplanes | Sold Separately |
| Included Items | (1) standard control panel (FXXFPANEL); (5) Redundant and hot-swap 80mm system fans (FUPMLHSFAN); (4) fixed 3.5 inch drive sleds (FUP4X35NHDK); (4) fixed power connectors; (1) 4-port fan-out SATA cable;(1) power supply cage (FUPCRPSCAGE); (1) power distribution board (FUPPDBHC2); (1) processor/memory airduct (A4UCWDUCT); (1) hot-swap bezel with lock (FUPBEZELHSD2); (1) MiniSAS HD to 4 ports SATA 7 pins cable (AXXCBL450HD7S) |
| Recommended Customer Price | N/A |
| Supplemental Information | |

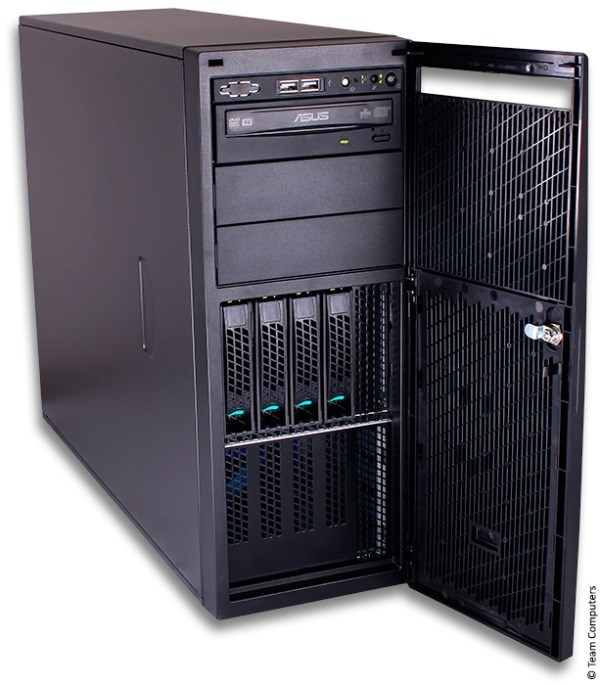

| Description | 4U pedestal chassis designed specifically for the Intel® Server Board S2600CW with default of four 3.5" fixed drives support, and optional 3.5" or 2.5" Hot Swap drives support. Power supply options sold separately and include redundant 750W and 1600W. |
| Memory & Storage | |
| # of Front Drives Supported | 4 |
| Front Drive Form Factor | Fixed 2.5" or 3.5" |
| Package Specifications | |
| Max CPU Configuration | 2 |
.
