IN WIN CPU chladič SR24 PRO, 240mm, 500-2500 RPM, 23 dBA, 101.5 CFM
Popis a parametry
IN WIN CPU chladič SR24 PRO, 240mm, 500-2500 RPM, 23 dBA, 101.5 CFM
SR24 PRO

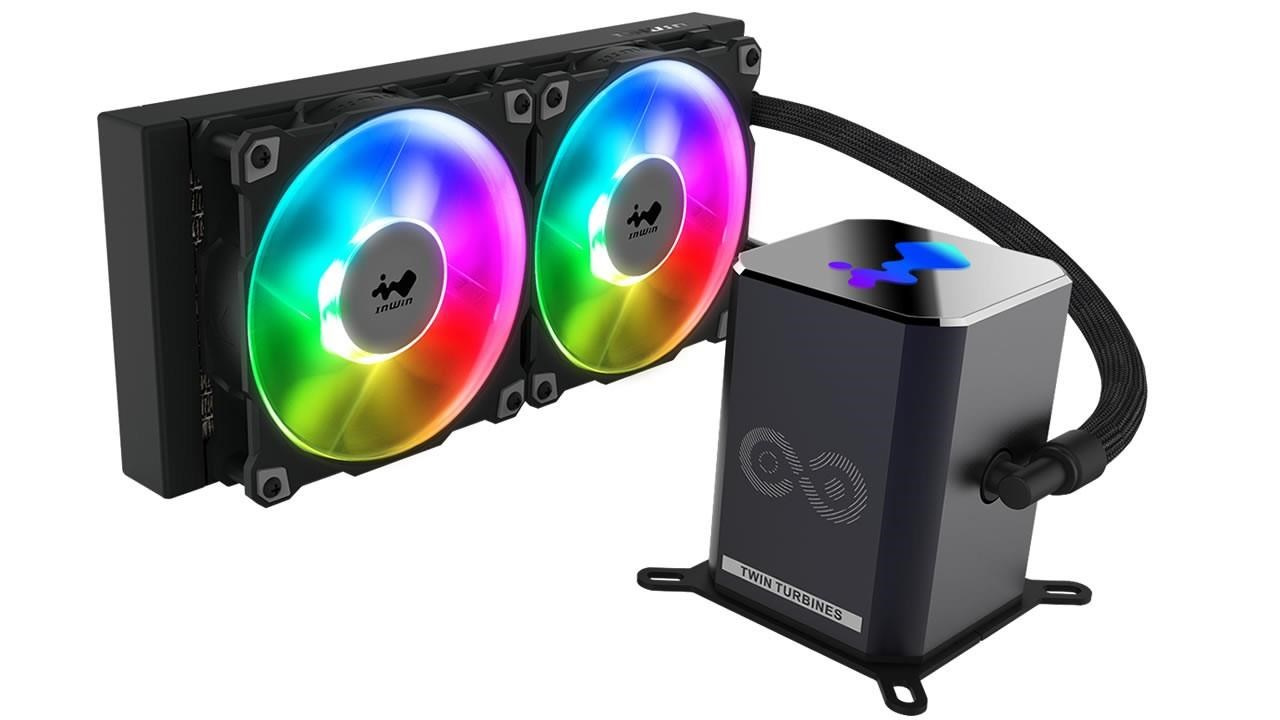

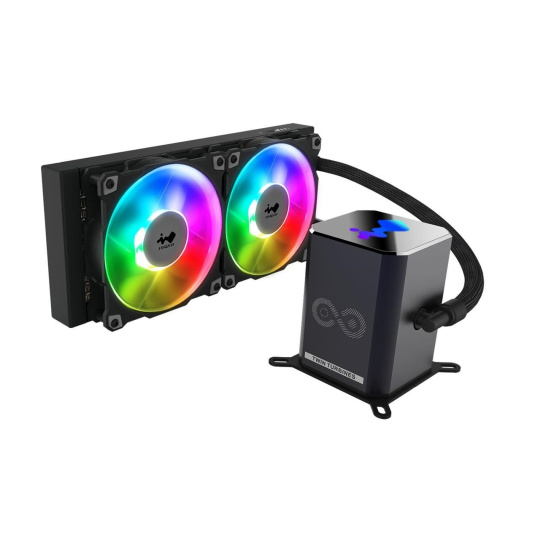

Twin turbines liquid CPU cooler
- Patented Integrated Twin Turbines - The patented twin-turbine function pushes both currents toward the copper cold-plate to significantly reduce the temperature.
- Enhanced AIO Thermal Performance - To provide excellent thermal performance, the cooling surface matters! InWin improved the radiator and the array of microchannel fins to increase the heat conducting efficiency!
- Thriving Under Pressure! - The Jupiter Series AJF120 fans are specially designed for liquid-cooling. The fans feature high airflow, high static pressure and possess a high-speed mode that ramp up the RPMs to 2500.
- Syncs with Addressable Motherboards - The SR PRO is equipped with a vibrant ARGB logo, and also comes with Jupiter AJF120 ARGB static pressure fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.
TECHNICAL SPECIFICATIONS
| Model | SR24 PRO |
| Model Number | IW-LC-SR24PRO |
| CPU Socket Support | Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150 AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4 |

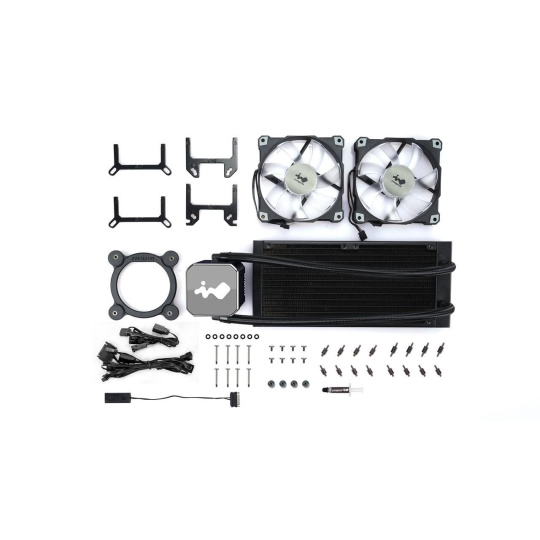

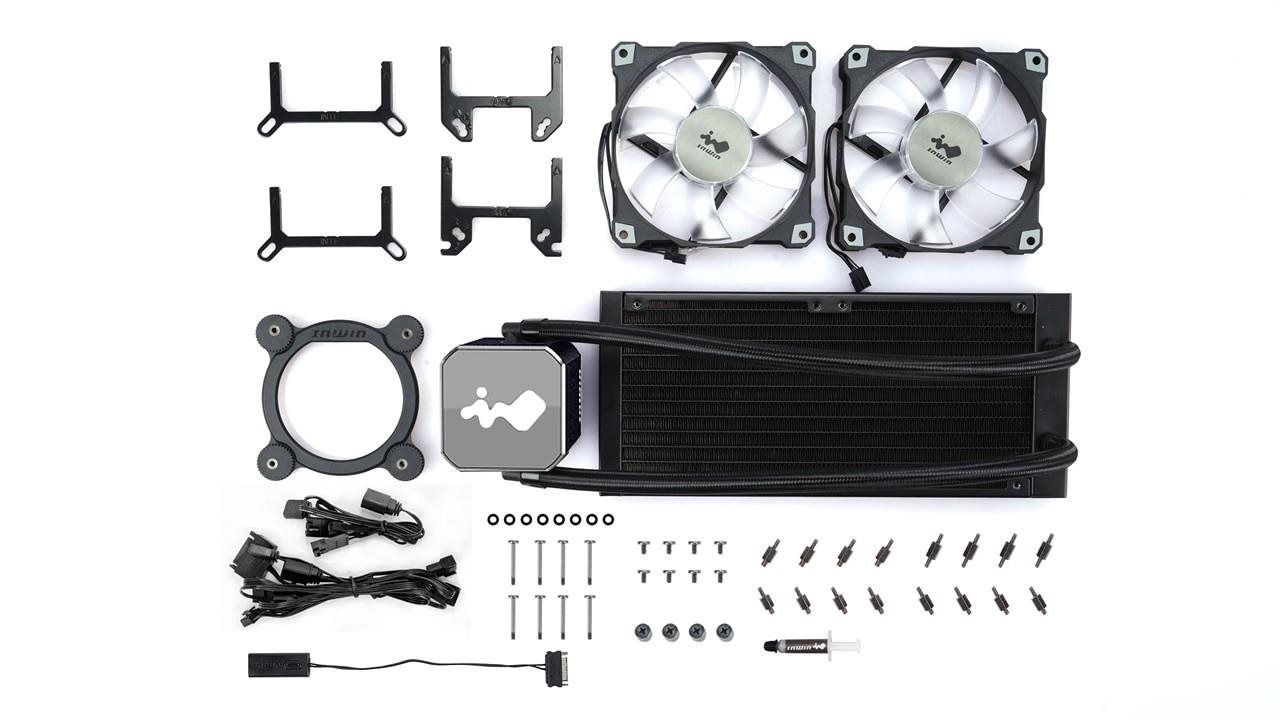

| Package Contents | InWin SR PRO Series 240mm CPU Liquid Cooler x 1 InWin AJF120 Addressable Fan x 2 ARGB One-Click Controller Fan and Radiator Mounting Screws Pack Mounting Kit for CPU Sockets Cable Pack |
| Package Dimension (L x W x H) | 331 x 265 x 136 mm 13 x 10.4 x 5.4" |
| Net Weight | 1.8 kg / 4.0 lb |
| Gross Weight | 2.4 kg / 5.3 lb |

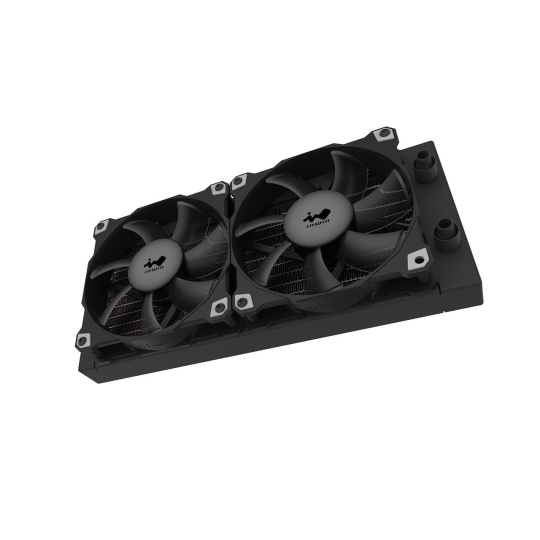

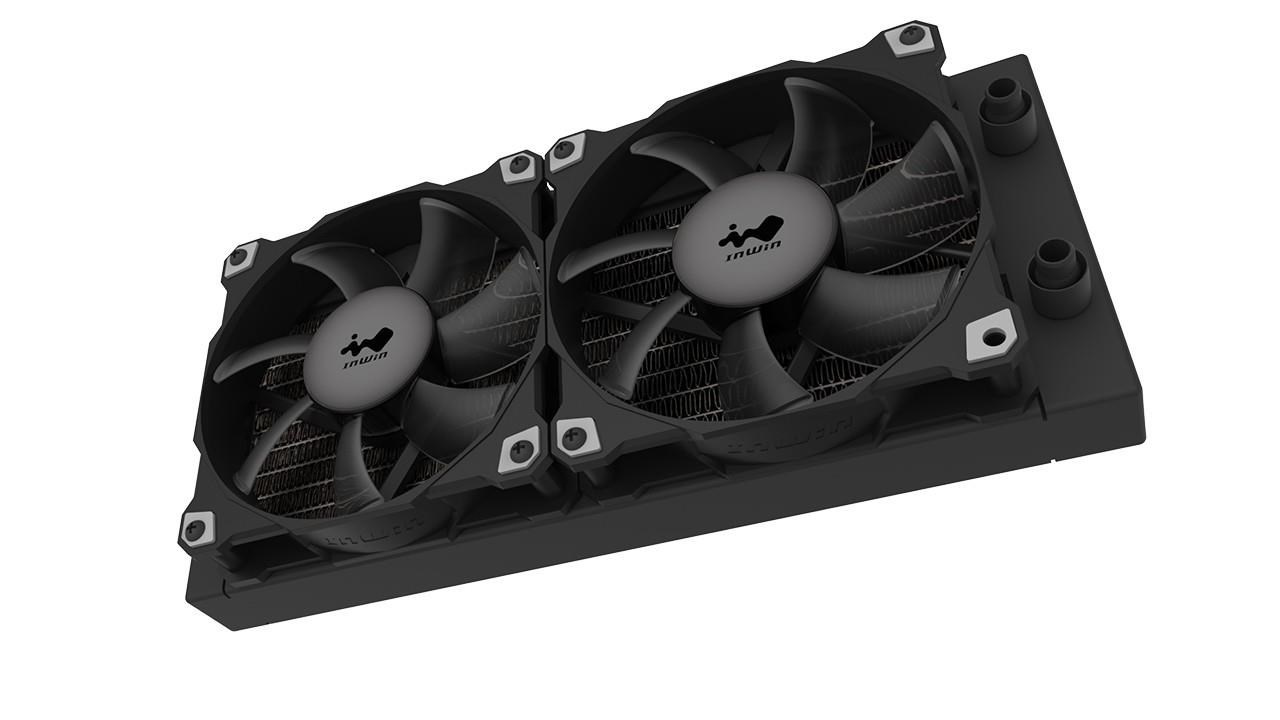

| Radiator | |
| Dimensions (L x W x H) | 277 x 120 x 27 mm (10.9 x 4.7 x 1.1") |
| Material | Aluminium |
| Tube Length | 400 mm |
| Tube Material | Rubber with Nylon Braided Sleeve |

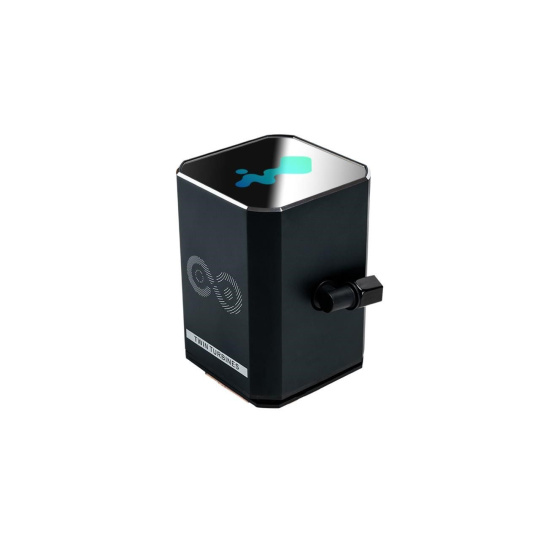

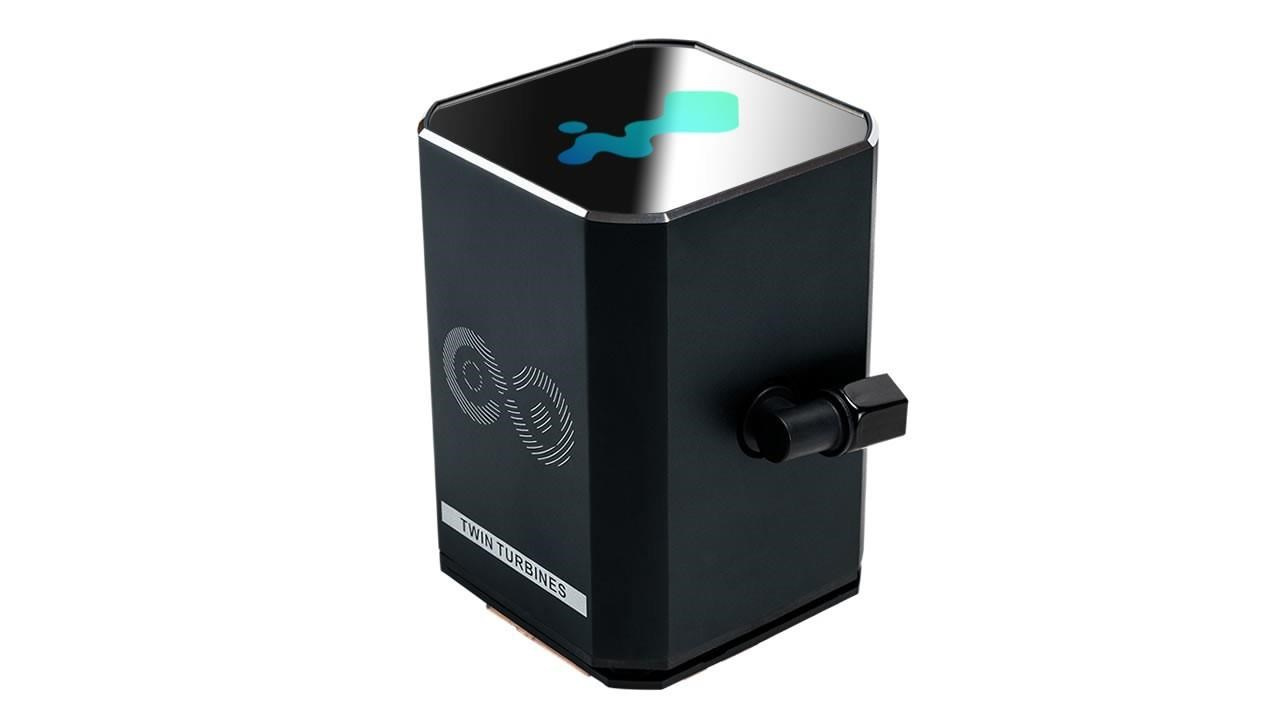

| Water Block & Pump | |
| Dimensions (L x W x H) | 68 x 68 x 100 mm 2.7 x 2.7 x 3.9" |
| Materials | Aluminium, Copper, Acrylic |
| Pump Speed | 2400±10%RPM |
| Fan | |
| Model | Jupiter Series AJF120 |
| Quantity Included | 2 PCS |
| Dimensions (L x W x H) | 120 x 120 x 26 mm 4.7 x 4.7 x 1.0" |
| Speed Mode (PWM) | PWM 500-2500 RPM +/- 10% |
| Noise Level | 23 dBA (normal) |
| Airflow | 101.5 CFM (max) |
| Static Pressure | 4.22 mm-H2O |
| Connectors | 4-pin (12V, PWM) , 3-pin (5V, ARGB) |
| Bearing Type | Double Ball Bearing |
.
ParametryPorovnání
Využití chladiče
Na procesory
Typ chladiče
Vodní
Barva podsvícení
RGB
Velikost ventilátoru
120x120
