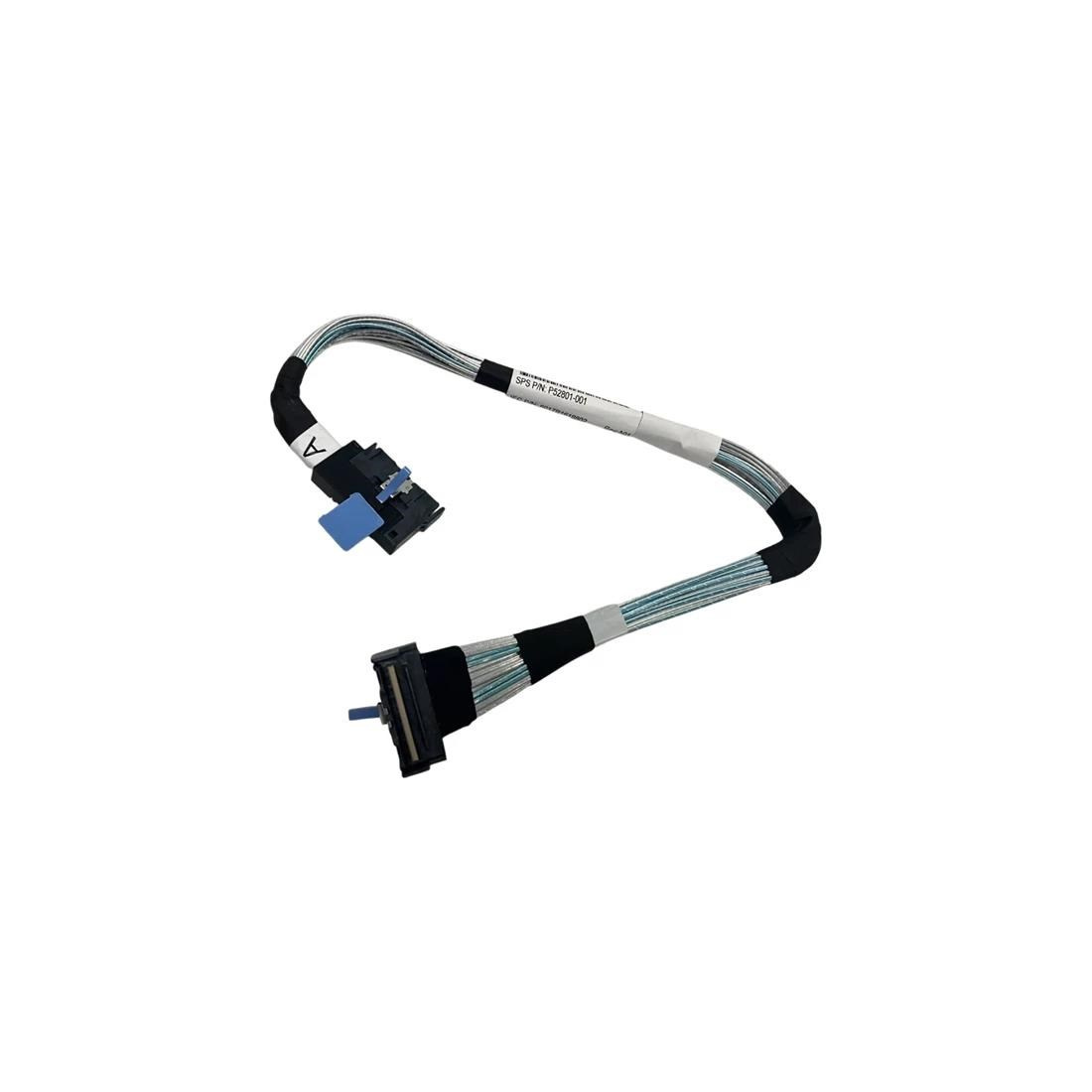

HPE ProLiant DL360 Gen11 CPU1 to OCP2 x8 Enablement Kit (allows OCP Slot 2 to be driven from CPU1)
Popis a parametry
HPE ProLiant DL360 Gen11 CPU1 to OCP2 x8 Enablement Kit (allows OCP Slot 2 to be driven from CPU1)
HPE ProLiant DL360 Gen11 CPU1 to OCP2 x8 Enablement Kit (allows OCP Slot 2 to be driven from CPU1)
This cable is supplied as standard on most 2P capable Gen11 servers, and allows OCP Slot 2 to be driven from an available MCIO port from CPU1. If the 2nd CPU is added to the system then OCP Slot 2 can be driven from CPU2 and hence balance the load, but an additional cable kit will be required. On some platforms a different cable upgrade will also be necessary to enable OCP2 x16 for certain high performance OCP NICs. However, also be aware that if a CPU1 to OCP1 x16 upgrade is added without the installation of a 2nd CPU and separate OCP2 cable upgrade then the standard cable must be removed, thus disabling OCP port 2.
.ParametryPorovnání
Typ příslušenství
Sady nástrojů
HPE ProLiant DL360 Gen11 CPU1 to OCP2 x8 Enablement Kit (allows OCP Slot 2 to be driven from CPU1)
