FUJITSU-RICOH skener Fi-8170 A4, průchodový, 70ppm, 600dpi, LAN RJ45-1000, USB 3.2,ADF 100listů, 10000 listů za den
Popis a parametry
FUJITSU-RICOH skener Fi-8170 A4, průchodový, 70ppm, 600dpi, LAN RJ45-1000, USB 3.2,ADF 100listů, 10000 listů za den
https://www.infomatic.cz/clanek/efektivita-skenovani-na-nove-urovni
https://www.fujitsu.com/us/products/computing/peripheral/scanners/business/fi8170/

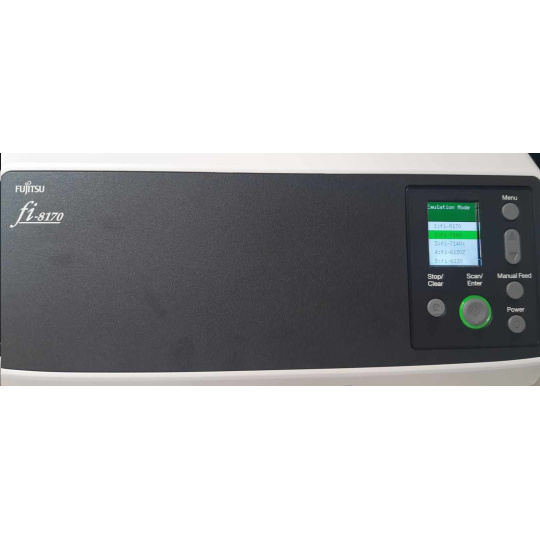

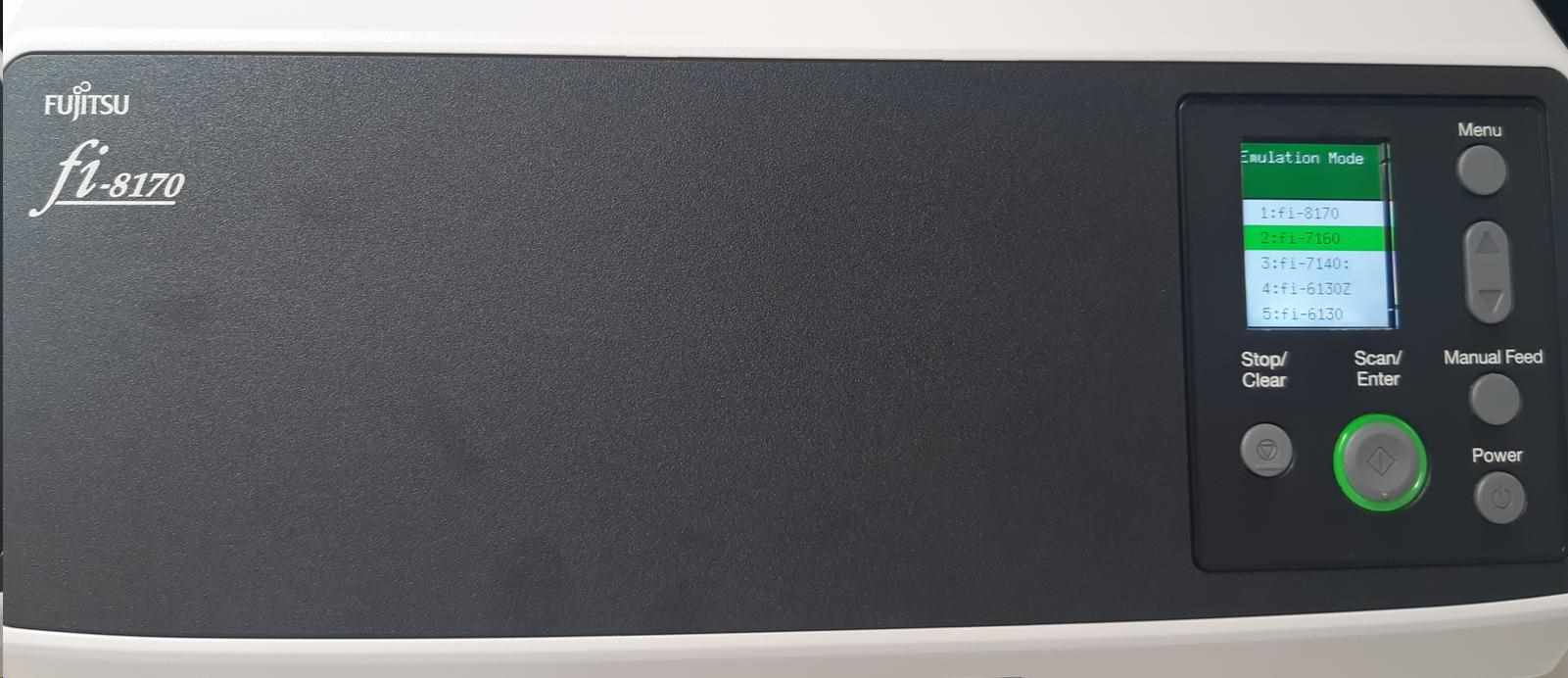

- EMULACE na starší modely, pro výměnu stroje bez nutnosti výměny driveru: zapnutí otevřený kryt / držet tlačítko ENTER a zapnout POWER dle obrázku: enapříklad mulací nadstavit 7160
- Servisní linka na FUJITSU SKENERY: 239 016 804
- záruka 12m výměna produktu za funkční do 1-2 dnů
| Product Name | fi-8170 | |
|---|---|---|
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex | |
| Scanning Speed*1 (A4 Portrait) (Color*2/Grayscale*2/Monochrome*3) | Simplex | 70 ppm (200/300 dpi) |
| Duplex | 140 ipm (200/300 dpi) | |
| Image Sensor Type | CIS x 2 (front x 1, back x 1) | |
| Light Source | RGB LED x 2 (front x 1, back x 1) | |
| Optical Resolution | 600 dpi | |
| Output Resolution*4 (Color / Grayscale / Monochrome) | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5 | |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | |
| Background Colors | White / Black (selectable) | |
| Document Size | Maximum*6 | 215.9 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 48 x 50 mm (1.9 x 2 in.) | |
| Long Page Scanning*7 | 6,096 mm (240 in.) | |
| Paper Weight (Thickness) | Paper | 20 to 465 g/m2 (5.3 to 124 lb)*8 |
| Booklet | Less than 7 mm (0.276 in.)*9 | |
| Plastic Card | 1.4 mm (0.055 in.) or less*10 | |
| ADF Capacity*11*12 | 100 sheets (A4 80 g/m2 or Letter 20 lb) | |
| Expected Daily Volume*13 | 10,000 sheets | |
| Multifeed Detection | Overlap detection (Ultrasonic sensor), Length detection | |
| Paper Protection | Image monitoring, Sound detection (iSOP)*14 | |
| Interface | USB | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T, 100BASE-TX, 1000BASE-T | |
| Power Requirements | AC 100V - 240V 50/60 Hz | |
| Power Consumption | Operating Mode | 28 W or less / 17 W (Eco mode) |
| Sleep Mode | LAN: 2.0 W or less USB: 1.4 W or less | |
| Auto Standby (Off) Mode | 0.2 W or less | |
| Operating Environment | Temperature | 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 15 to 80% (Non-condensing) | |
| Environmental Compliance | ENERGY STAR®, RoHS | |
| Dimensions (W x D x H)*15 | 300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.) | |
| Weight | 4 kg (8.8 lb) | |
| Supported Operating System | Windows® 11*16, Windows® 10*16, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS, Linux (Ubuntu) | |
| Included Software / Drivers | PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*17, Image Scanner Driver for macOS (ICA)*17*18, Image Scanner Driver for Linux (SANE)*17*18, PaperStream Capture, PaperStream ClickScan*18, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™*18, Scanner Central Admin | |
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold | |
| Included Items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM | |
.
ParametryPorovnání
Funkce
Automatické oboustranné skenování
Typ skeneru
Průtahový
Skutečné rozlišení skeneru (v DPI)
600
Automatický podavač dokumentů
Ano
Rozhraní
USB
Formát
A4
FUJITSU-RICOH skener Fi-8170 A4, průchodový, 70ppm, 600dpi, LAN RJ45-1000, USB 3.2,ADF 100listů, 10000 listů za den
