Club3D Dokovací stanice USB-C, Triple Display DP 1.4 Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
USB Gen2 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT™ 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only.

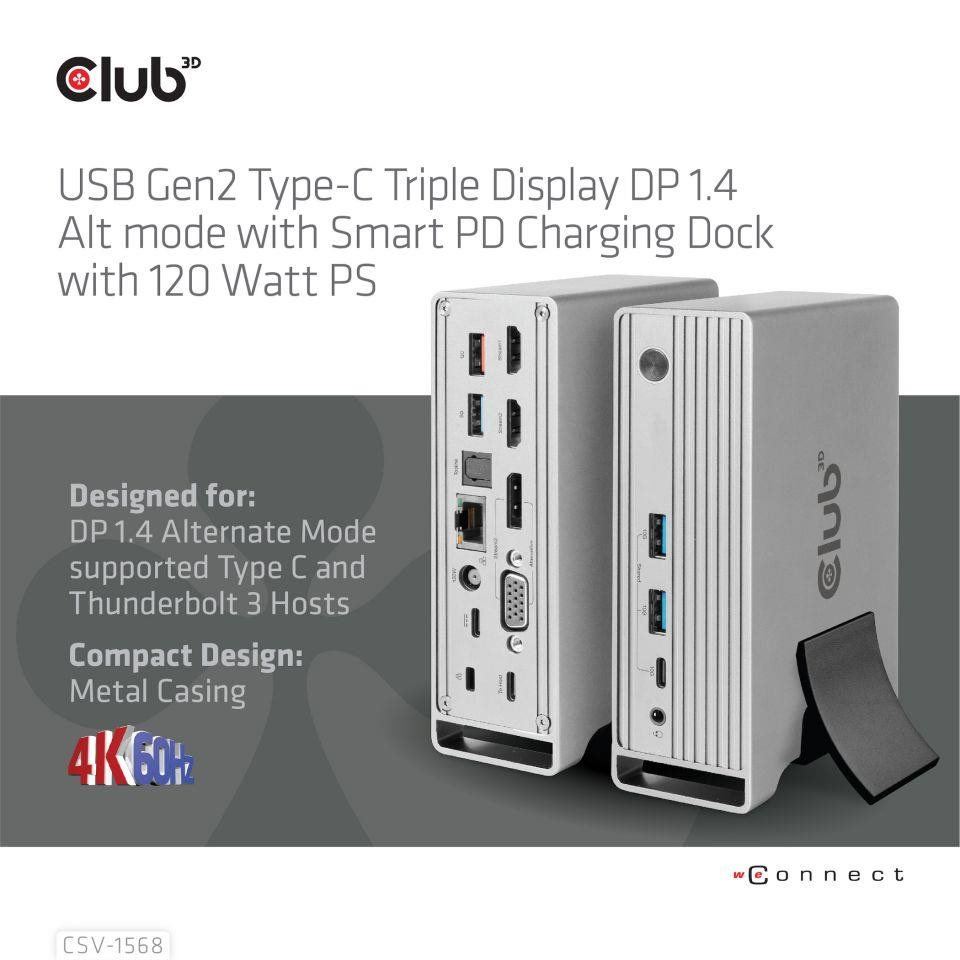

- Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc)
- Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA)
- When 3 Displays are connected - 16.2Gbps bandwidth will be shared
- Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support deep color 8/10 bit
- DP and HDMI support HDR
- DP and HDMI support HDCP2.2&1.4
- DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
- Support Gigabit Ethernet 10/100/1000M
- Support USB3.2 Gen2 with max 10Gbps data transfer
- Support smart charging
- Support Digital audio with max 96KHz/24bit sampling rate

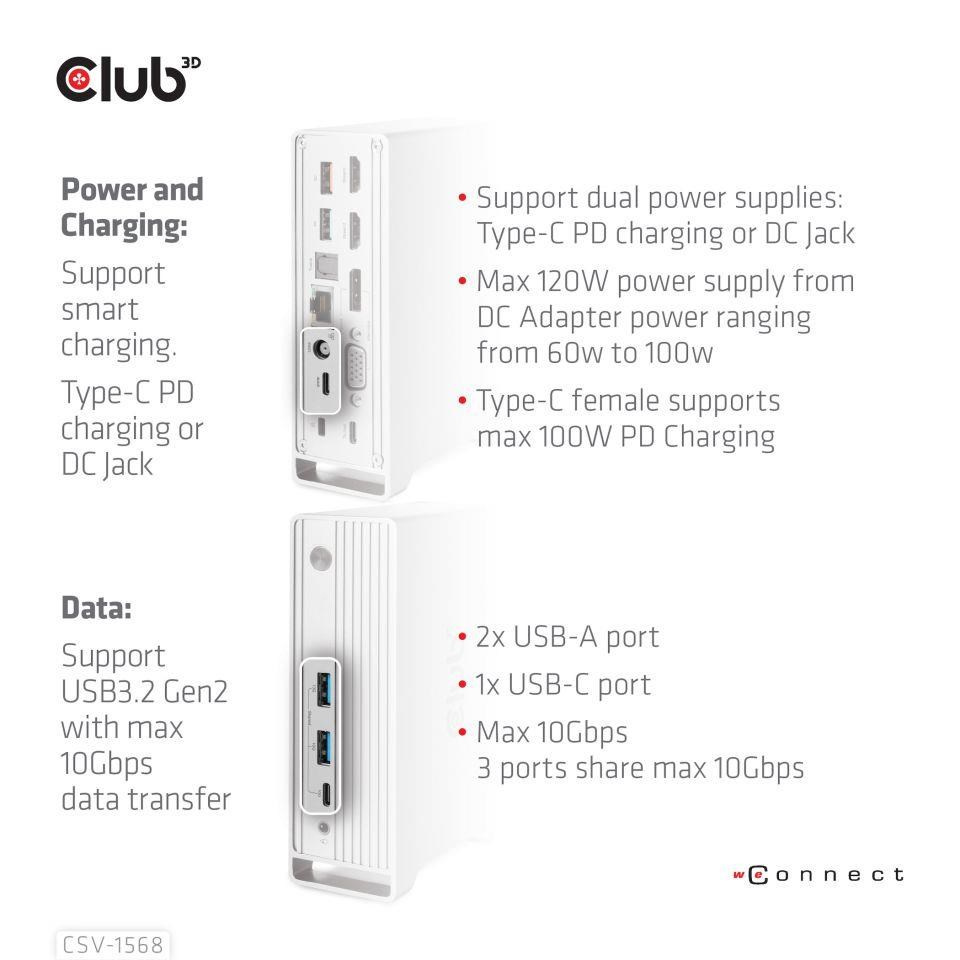

- Support dual power supplies: Type-C PD charging or DC Jack
- Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
- Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
TECHNICAL SPECIFICATIONS

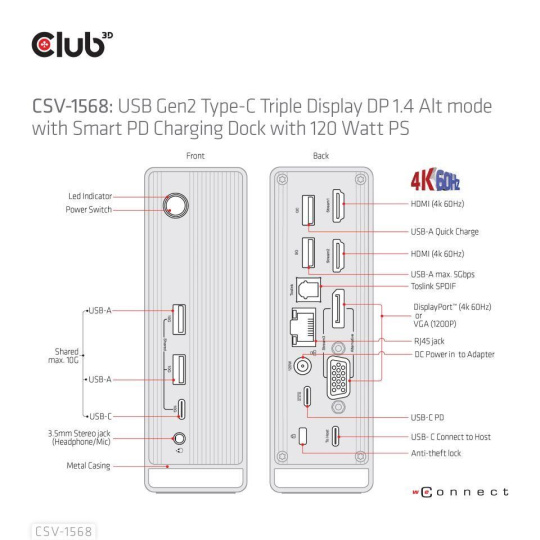

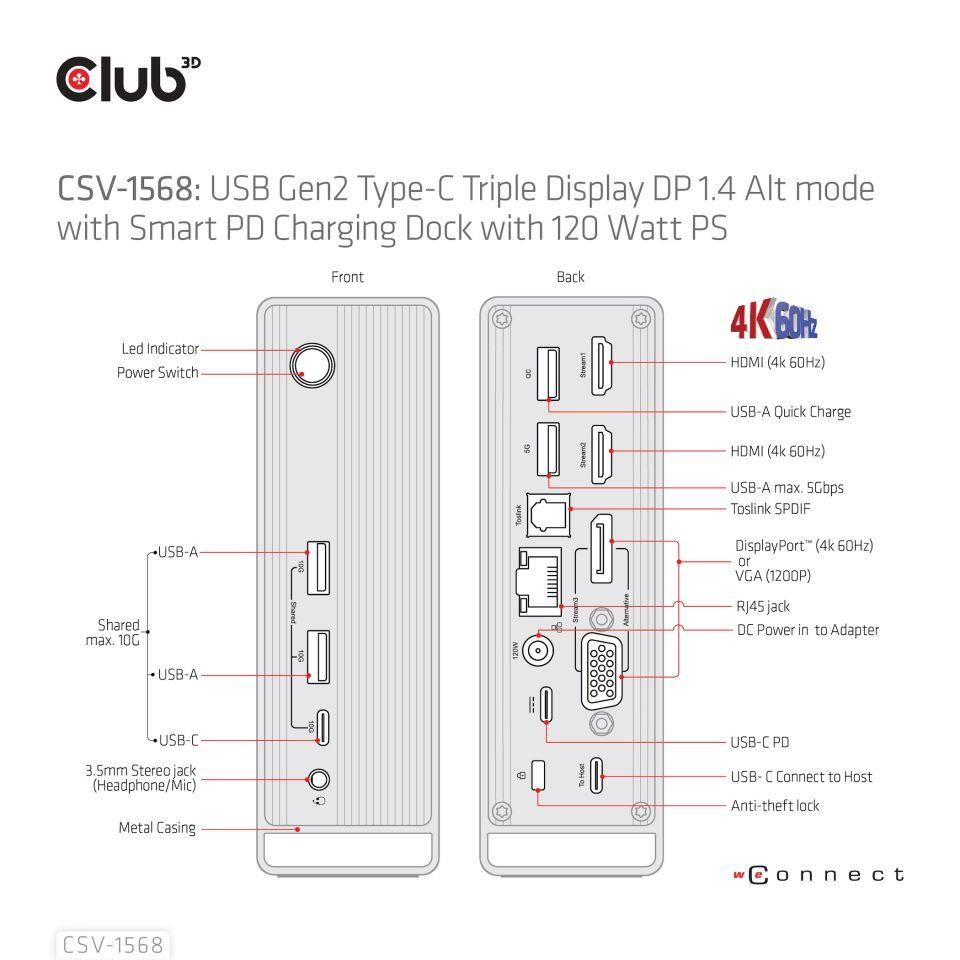

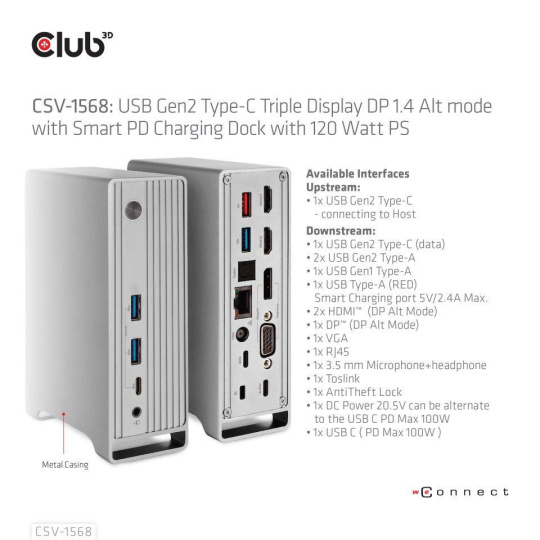

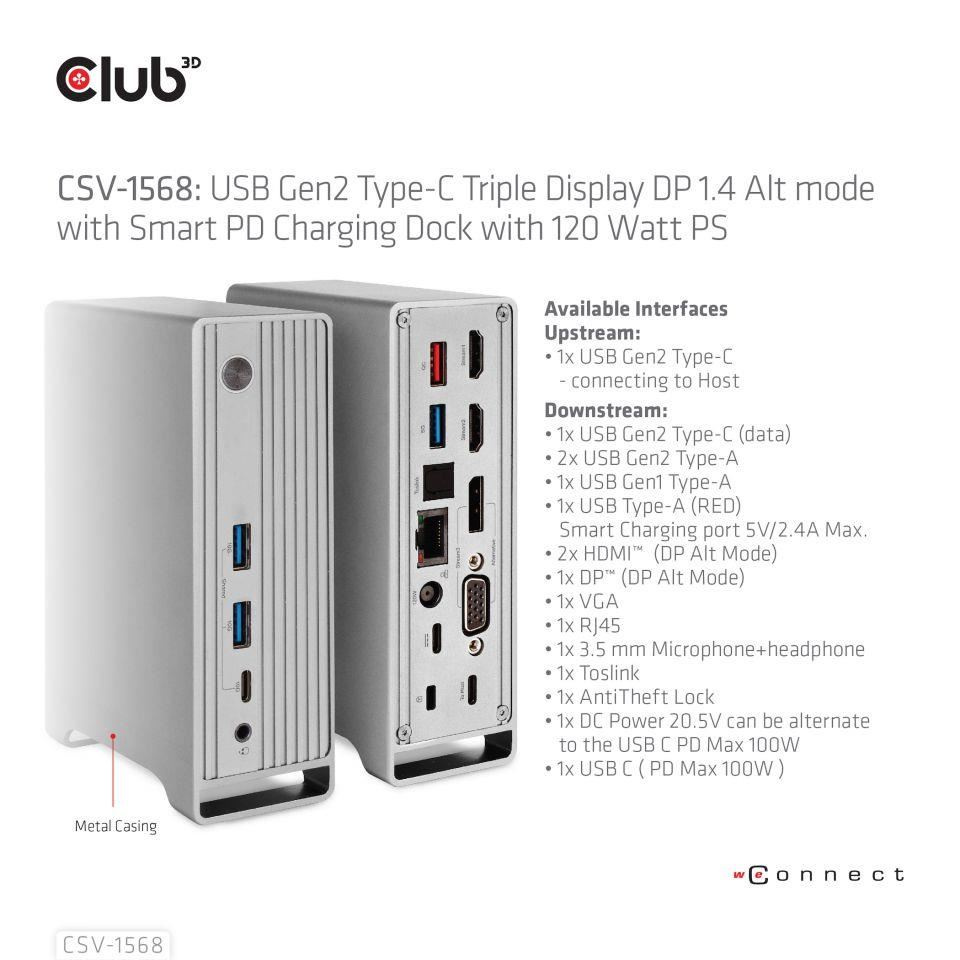

| Available Interfaces | Upstream: - 1x USB Gen2 Type-C Female for connecting to Host Downstream: - 1x USB Gen2 Type-C Female (data) - 2x USB Gen2 Type-A Female - 1x USB Gen1 Type-A Female - 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. - 2x HDMI™ Female (DP Alt Mode) - 1x DP™ Female (DP Alt Mode) - 1x VGA Female - 1x RJ45 - 1x 3.5 mm Phone Socket (Microphone and headphone) - 1x Toslink - 1x AntiTheft Lock - 1x DC Power 20.5V can be alternate to the USB C PD Max 100W - 1x USB C (PD Max 100W) |
| OS Support | - Windows® 10 - Mac OSX® Supports SST mode Only (Intel Based systems) |

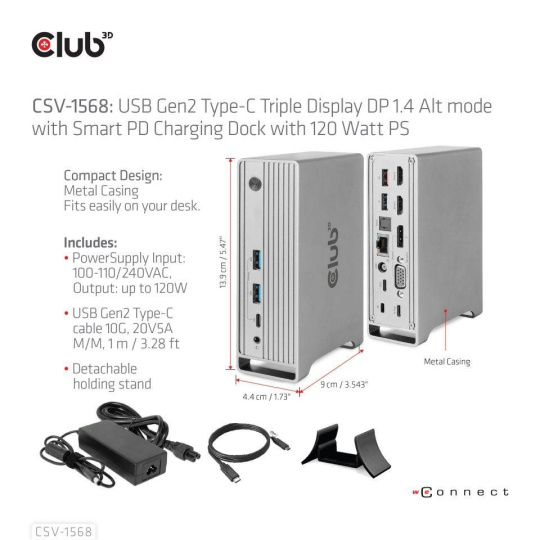

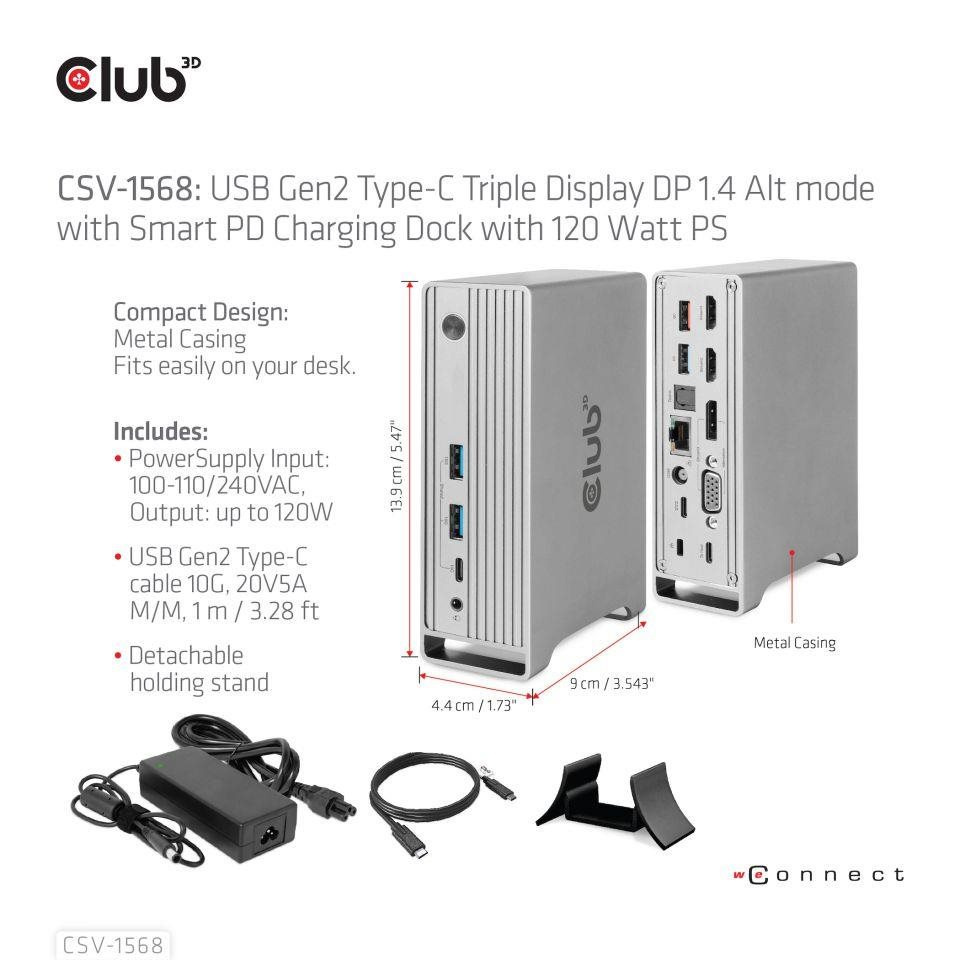

| In the box | - CSV-1568 Docking Station - PowerSupply Input:100-110/240VAC, Output: up to 120W - USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft - Detachable stand - Quick Install Guide |

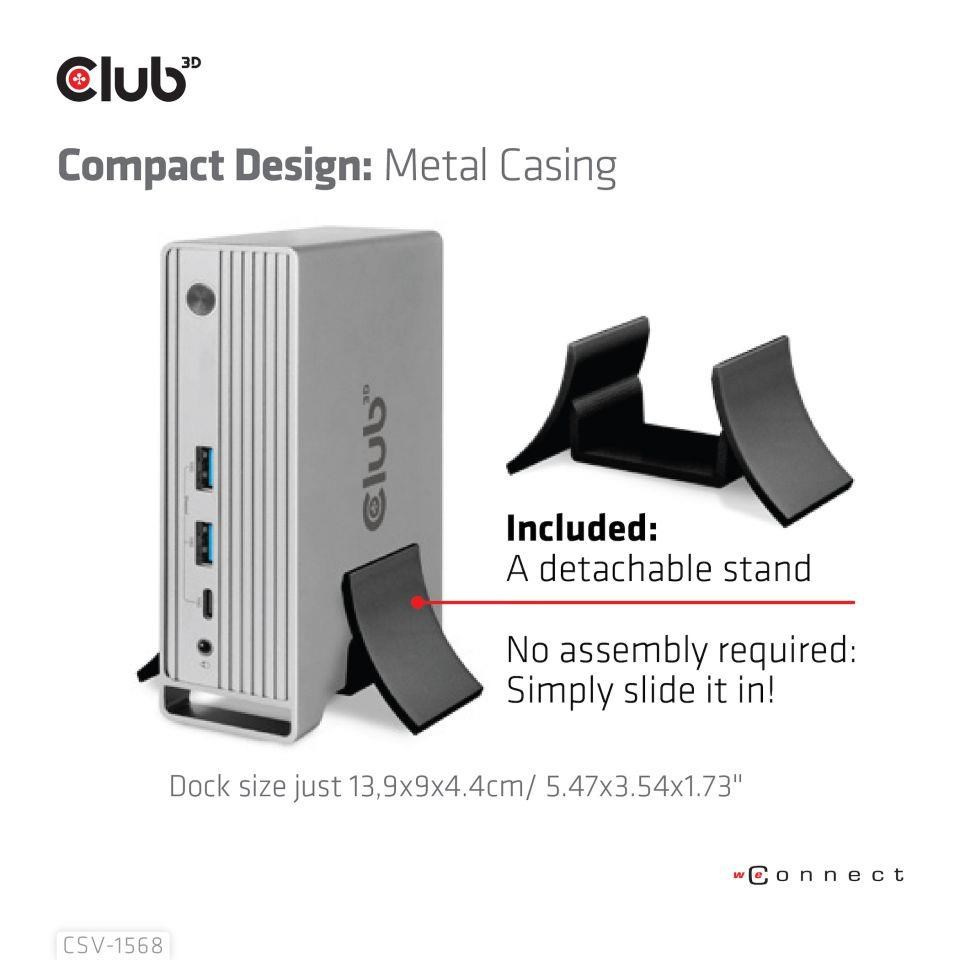

| Other info | - Box size: 22.5 x 15.5 x 9.7 cm / 8.86 x 6.1 x 3.82" - Device size: 13.9 x 9 x 4.4 cm / 5.47 x 3.54 x 1.73" - USB host Cable length approx.: 1m / 3.28 ft - Device Weight: 563 gr / 19.86 oz - Stand Weight: 19 gr / 0.67 oz - USB Cable Weight: 44 gr / 1.55 oz - Powersupply weight: depending on power plug ? 560 gr / 19.75 oz - Box Weight: 168 gr / 5.93 oz - LDPE Bag Weight: 5 gr / 0.18 oz - Total Weight: ? 1359 gr / 47.94 oz - Meets ROHS, FCC, and CE EMI requirements |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
