CHIEFTEC zdroj SFX CSN-450C 450W, 80+ Gold,full range, cable management
Popis a parametry
CHIEFTEC zdroj SFX CSN-450C 450W, 80+ Gold,full range, cable management

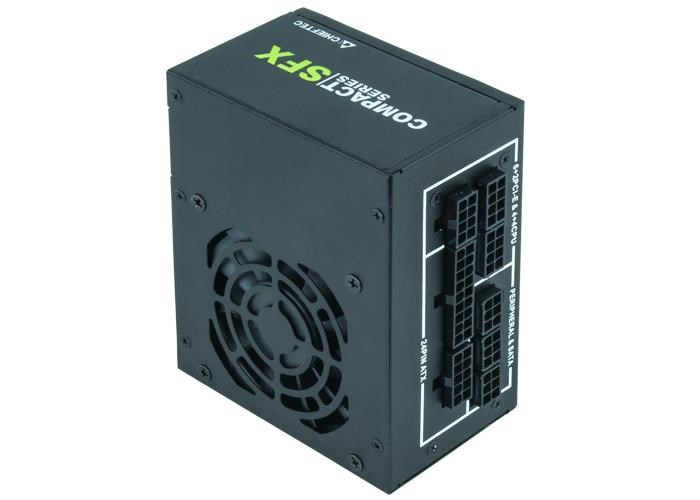

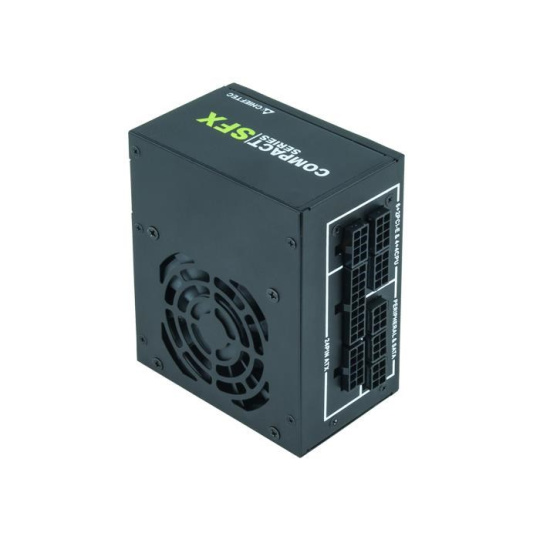

This small SFX PSU surprises with massive power and an incredible power output of 450 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.
Performance
| AC Input: | 100V-240V / 6A |
| Frequency: | 47-63 Hz |
| +5V: | 15A |
| +3,3V: | 18A |
| +5V & +3,3V combined: | 90W |
| +12V 1: | 37,5A |
| +12V 2: | N/A |
| +12V 1 & +12V 2 combined: | N/A |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A |
| +5VSB: | 3,0A |
| Maximum Load: | 450W |

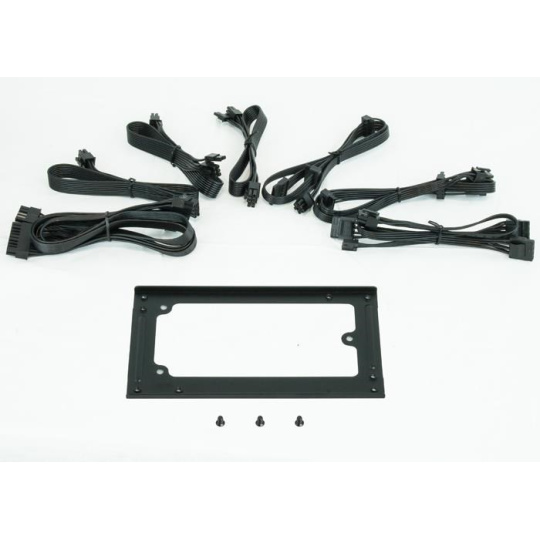

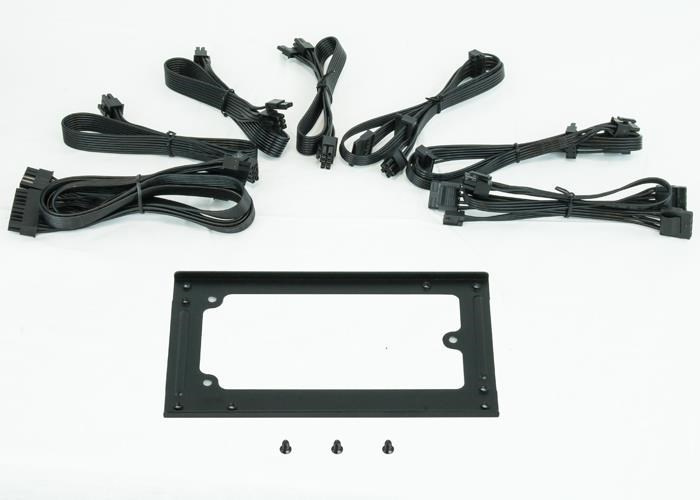

Modular cable
| 20+4PIN ATX: | 1 |
| SATA: | 4 |
| MOLEX: | 3 |
| Floppy: | 1 |
| 4PIN 12V: | - |
| 8PIN 12V: | - |
| 8PIN (4+4) 12V: | 1 |
| 6PIN PCIe: | - |
| 8PIN (6+2) PCIe: | 2 |
Features
| Spezification: | ATX 12V 2.3 |
| Form factor: | SFX |
| Efficiency: | > 90% |
| Dimension (DxWxH): | 100 mm x 125 mm x 64 mm |
| PFC: | Active PFC (0,9) |
| Fan: | 80mm silent fan |
| Security: |
|
| Warranty: | 24 Month |
.
ParametryPorovnání
Formát zdroje
SFX
Konektory
SATA 15-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
80 Plus Gold
Modulární kabeláž
Ano
Výkon zdroje (W)
450
