CHIEFTEC SATA Backplane CMR-425, 1x 5,25" bay for 4x 2,5" HDDs/SDDs
CHIEFTEC SATA Backplane CMR-425, 1x 5,25" bay for 4x 2,5" HDDs/SDDs

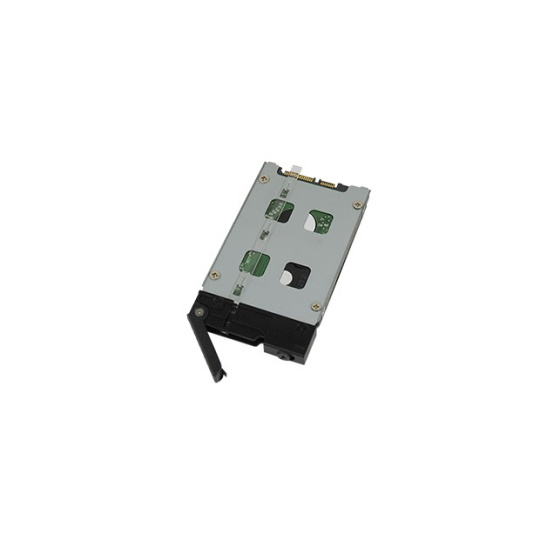

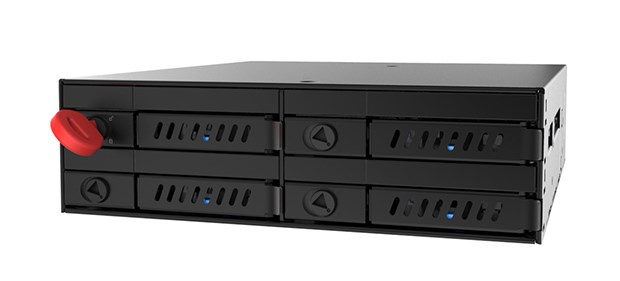

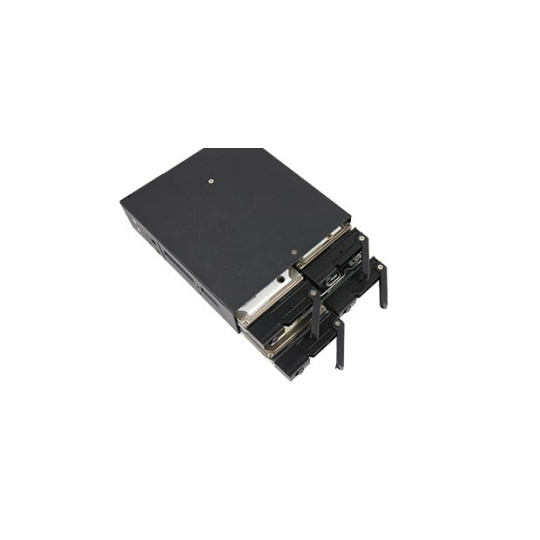

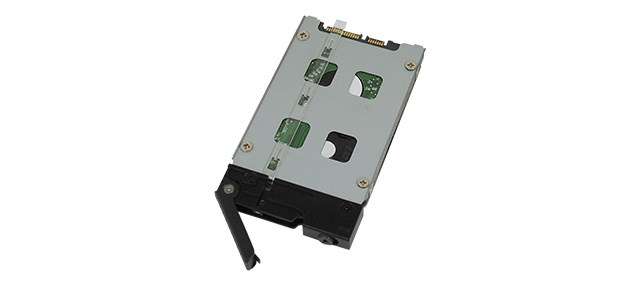

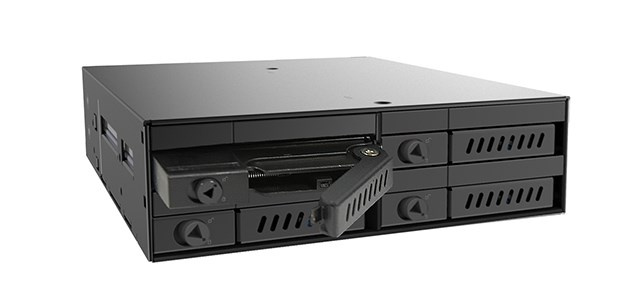

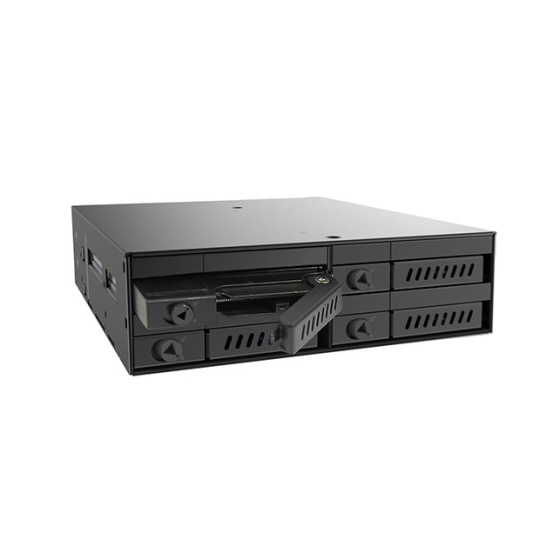

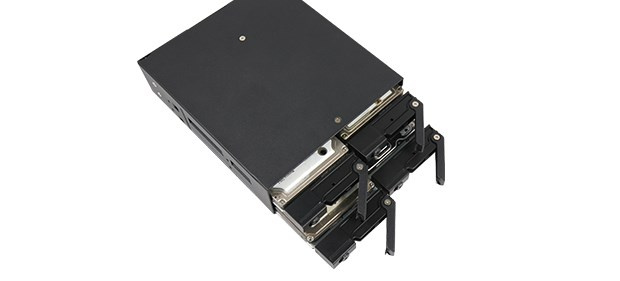

CMR-425 - The highly innovative backplane CMR-425 sets a new standard by providing 4x 2,5" HDD/SSD//SATA I /II/III mounting option using a 1x 5,25" external slot. Compatible with all 2,5" HDDs/SSDs (height: 7 ~ 9,5mm) it sources its power via the SATA connection offers LEDs to indicate HDD access and power while trays are detachable for easy installation. The case being 100% metal and lockable ensures maximum security. All installed discs are hot-swappable which makes it suitable for diverse applications.
Features:
Professional Data Backup
Hot Swap
Plug & Play compatible
Lock mechanism for easy removal of storage media

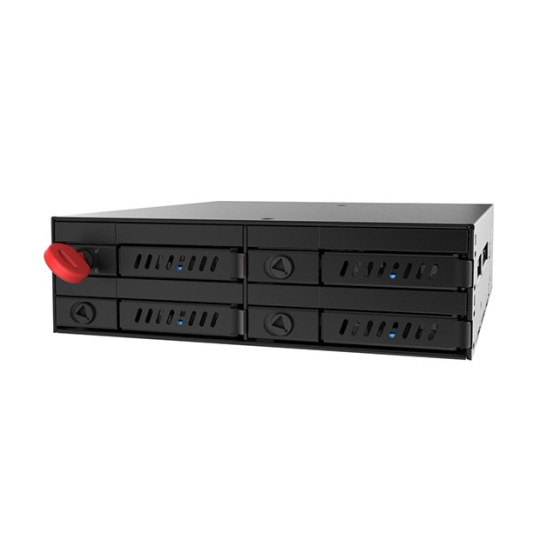

Key Lock
| Interface (HDD/SSD): | SATA I, SATA II, SATA III |
| Dimension (DxWxH): | 168mm x 146mm x 42mm |
| Weight: | 0,764 kg |
| Form Factor: | 1x 5,25" bay for 4x 2,5" HDDs/SDDs (max. HDD/SSD height up to 9,5mm) |

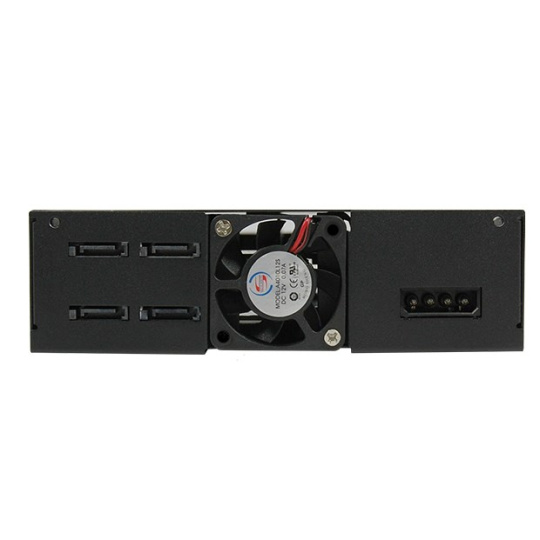

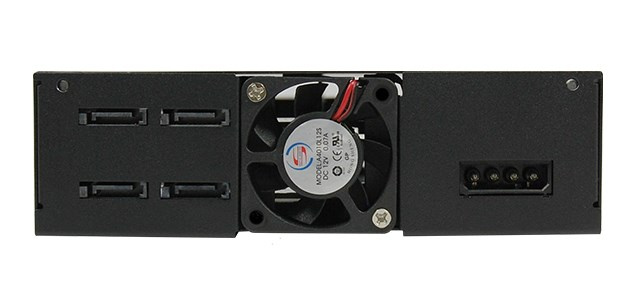

| Cooling: | 1x 40mm |
| Power Connector: | 1x Molex |
| Data Interface (ext.): | 4 x SATA |
| Material: | Full Metal structure |
| Special Features: | HDD LEDs |
| Scope of delivery: | SATA Backplane, 4x SATA cables, 2 keys, set of screws, User manual |
