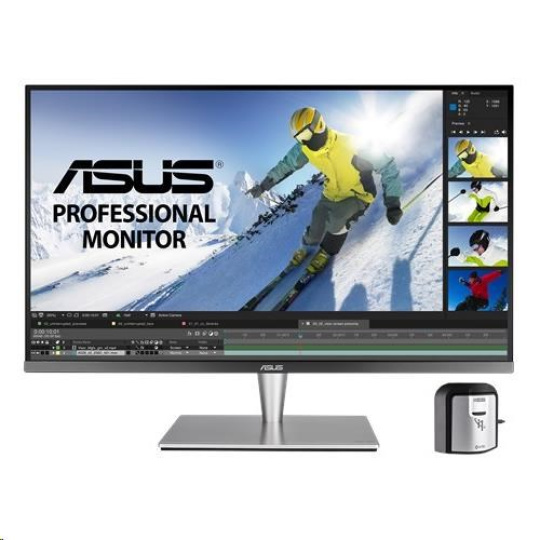

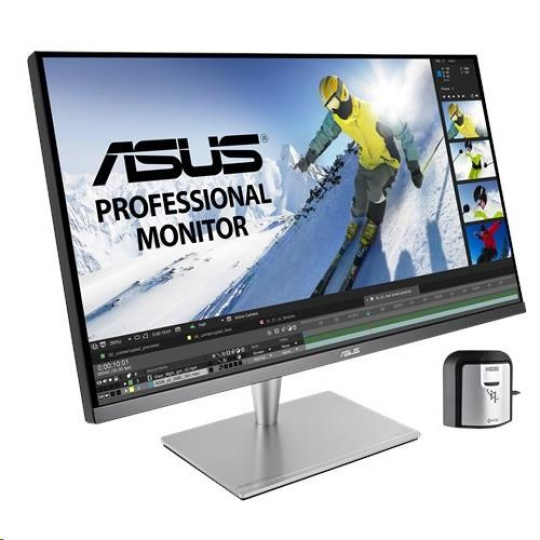

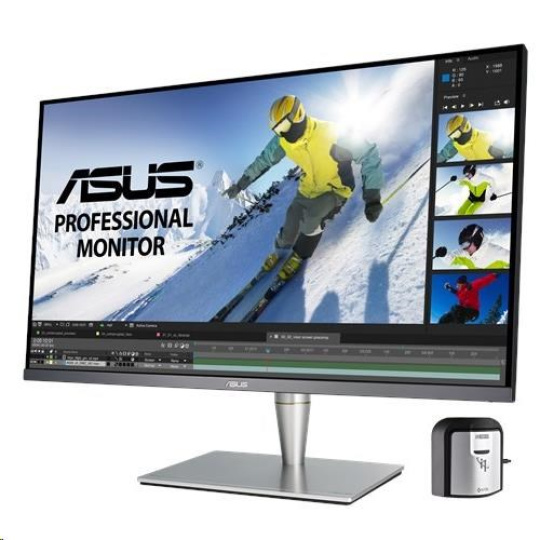

ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
Popis a parametry
ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
https://www.asus.com/Monitors/PA32UC-K/specifications/
Display
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 85% Rec.2020, 99.5% Adobe RGB, over 95% DCI-P3 and 100% sRGB
Panel Type : IPS
True Resolution : 3840x2160
Display Surface Non-glare
Pixel Pitch : 0.1845 mm
Brightness(Max) : 1000 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1.07 Billion
Flicker free
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes
Dynamically Local Dimming : Yes, 384 Zones
Video Feature
SPLENDID Video Preset Modes : 8 Modes (Adobe RGB Mode/Rec. 2020/DCI-P3/HDR/sRGB Mode/Standard Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (A4/B5/Alignment Grid/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes, DisplayPort / Thunderbolt™ 3 ports
HDR (High Dynamic Range) Support :Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x4, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB upstream : USB3.0 Type-B x1
USB downstream : USB3.0 Type-A x2, USB3.0 Type-C x1
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 56.84W
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz
Mechanical Design
Chassis Colors : Gray
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 229 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 69 mm
Box Dimension (WxHxD) : 913 x 365 x 521 mm
Weight
Net Weight (Esti.) : 11.4 kg
Net Weight Without Stand (Esti.) : 7.8 kg
Gross Weight (Esti.) : 16.7 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB 3.0 cable
Quick start guide
HDMI cable
Support CD
Warranty Card
Cable Clip
X-rite i1 Display Pro Calibrator
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ICES, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, UHDA
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
*HDR performance requires compatible with monitors, streaming, video graphic cards, OS and software for PC devices or media players which all support HDR function.
.
Display
Panel Size: Wide Screen 32” (81.28cm) 16:9
Color Saturation : 85% Rec.2020, 99.5% Adobe RGB, over 95% DCI-P3 and 100% sRGB
Panel Type : IPS
True Resolution : 3840x2160
Display Surface Non-glare
Pixel Pitch : 0.1845 mm
Brightness(Max) : 1000 cd/?
Contrast Ratio (Max) : 1000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Display Colors : 1.07 Billion
Flicker free
LCD ZBD Warranty : Yes
HDR (High Dynamic Range) Support : Yes
Dynamically Local Dimming : Yes, 384 Zones
Video Feature
SPLENDID Video Preset Modes : 8 Modes (Adobe RGB Mode/Rec. 2020/DCI-P3/HDR/sRGB Mode/Standard Mode/User Mode 1/User Mode 2)
Color Temperature Selection : 4 Modes
Color Accuracy : ?E< 2
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
QuickFit (modes) : Yes (A4/B5/Alignment Grid/Ruler/Customization Modes)
Picture-in-Picture : Yes
Picture-by-Picture : Yes (support up to 4 UHD windows)
Low Blue Light : Yes
HDCP support : Yes, 1.4 & 2.2
Adaptive-Sync supported :Yes, DisplayPort / Thunderbolt™ 3 ports
HDR (High Dynamic Range) Support :Yes
Audio Features
Stereo Speakers : 3W x 2 Stereo RMS
I/O Ports
Signal Input : Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI(v2.0b) x4, DisplayPort 1.2
Earphone jack : 3.5mm Mini-Jack
USB upstream : USB3.0 Type-B x1
USB downstream : USB3.0 Type-A x2, USB3.0 Type-C x1
Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3:142 KHz (H) / 40 ~60 Hz(V)
HDMI : 109 ~142 KHz (H) /29 ~65 Hz(V)
Power Consumption
Power On (Typical): < 56.84W
Power Saving Mode : < 0.5W
Power Off Mode : 0W (Hard Switch)
100-240V, 50/60Hz
Mechanical Design
Chassis Colors : Gray
Tilt : -5°~+23°
Swivel : -60°~+60°
Pivot : -90°~+90°
Height Adjustment : 0~130 mm
VESA Wall Mounting : 100x100mm
Frameless Design : Yes
Quick Release Stand Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand (WxHxD) : 727 x (470 – 600) x 229 mm
Phys. Dimension without Stand (WxHxD) : 727 x 426 x 69 mm
Box Dimension (WxHxD) : 913 x 365 x 521 mm
Weight
Net Weight (Esti.) : 11.4 kg
Net Weight Without Stand (Esti.) : 7.8 kg
Gross Weight (Esti.) : 16.7 kg
Accessories
Thunderbolt™ 3 Cable
Power cord
DisplayPort cable
USB 3.0 cable
Quick start guide
HDMI cable
Support CD
Warranty Card
Cable Clip
X-rite i1 Display Pro Calibrator
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, ErP, FCC, ICES, ISO-9241-307, J-MOSS, KCC, Mac Compliance, PSE, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), RCM, TUV Flicker-free , KC , eStandby, TUV Low Blue Light, UHDA
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
*HDR performance requires compatible with monitors, streaming, video graphic cards, OS and software for PC devices or media players which all support HDR function.
.
ParametryPorovnání
Formát obrazovky
16:9
Rozlišení displeje
3840x2160 (4K UHD)
Povrchová úprava displeje
Matný
Rozhraní
HDMI
Rozhraní
DisplayPort
Rozhraní
USB 3.0
Rozhraní
3.5mm Jack
Rozhraní
Thunderbolt
Výbava
Pivot
Výbava
Nastavitelná výška
Výbava
VESA montáž
Výbava
Redukce blikání (flicker-free)
Výbava
Redukce modrého světla
VESA rozměry
100x100
Typ panelu
IPS
Úhlopříčka displeje (")
32
Kontrast:1
1000
Doba odezvy (ms)
5
Hmotnost (kg)
11,4
Jas (cd/m2)
1000
ASUS LCD 32" PA32UC-K 3840x2160 ProArt 4K IPS Quantum Dot 99.5% Adobe RGB/95% HDMI 2.0b USB Type C
