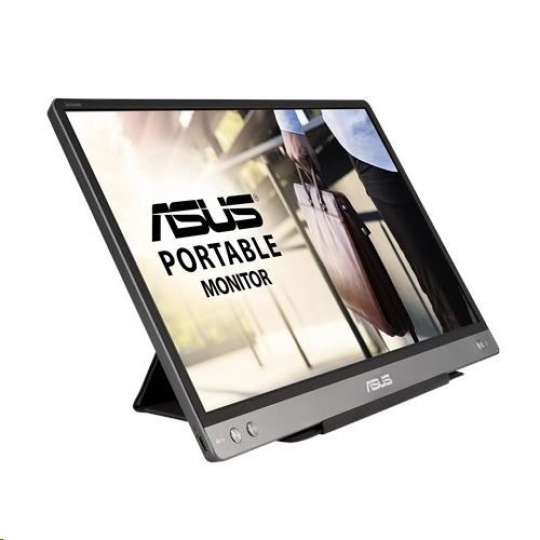

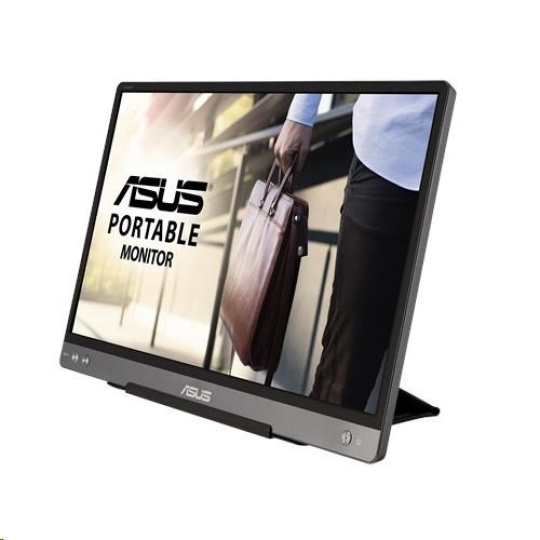

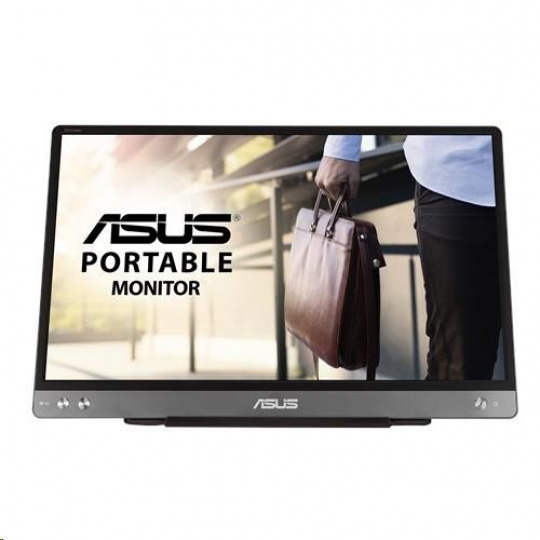

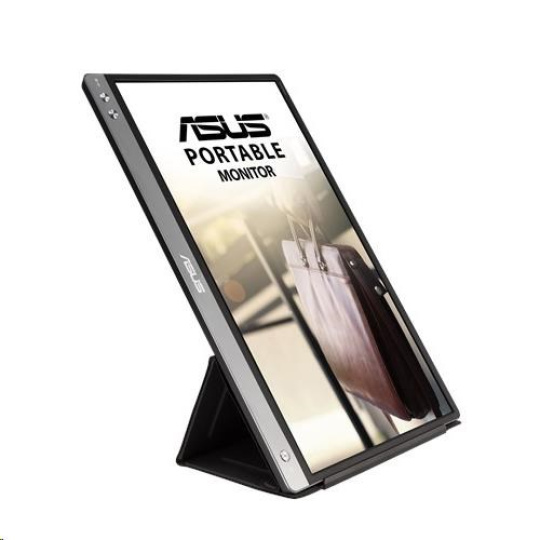

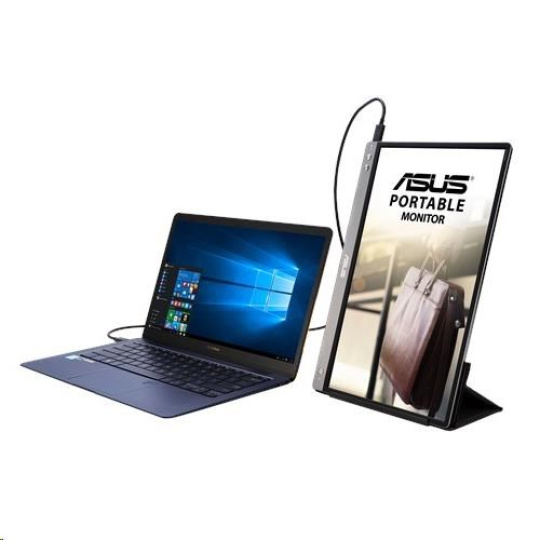

ASUS LCD 14" MB14AC 1920x1080 ZenScreen Portable USB-C IPS Hybrid Signal Solution, Antigare surface
Popis a parametry
ASUS LCD 14" MB14AC 1920x1080 ZenScreen Portable USB-C IPS Hybrid Signal Solution, Antigare surface
https://www.asus.com/Monitors/ZenScreen-MB14AC/
ASUS ZenScreen MB14AC Portable USB Monitor- 14 inch, IPS Full HD, Hybrid Signal Solution, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface
Panel Size: Wide Screen 14.0"(35.6cm) 16:9
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 309.31 x 173.99 mm
Display Surface : Non-glare
Pixel Pitch : 0.16 mm
Brightness(Max) : 250 cd/?
Contrast Ratio (Max) : 700:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Flicker free : Yes
Video Feature
SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Alignment Grid/Photo Modes)
GamePlus(modes) : Yes (Crosshair/Timer)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Auto-rotate : Yes
Display Widget
Convenient Hotkey
Blue Light Filter
I/O Ports
Signal Input : USB Type-C
Power Consumption
Power Consumption(Typical):<7W*
Power Saving Mode:0W
Power Off Mode:0W
Voltage:5V
Mechanical Design
Chassis Colors : Dark gray
Slim Design : Yes
Super Narrow Bezel Design : Yes
Dimensions
Phys. Dimension(WxHxD):324.94 x 208.03 x 11.2 mm
Box Dimension(WxHxD):392 x 257 x 77 mm
Weight
Net Weight(Esti.):0.59kg
Gross Weight(Esti.):1.3kg
Accessories

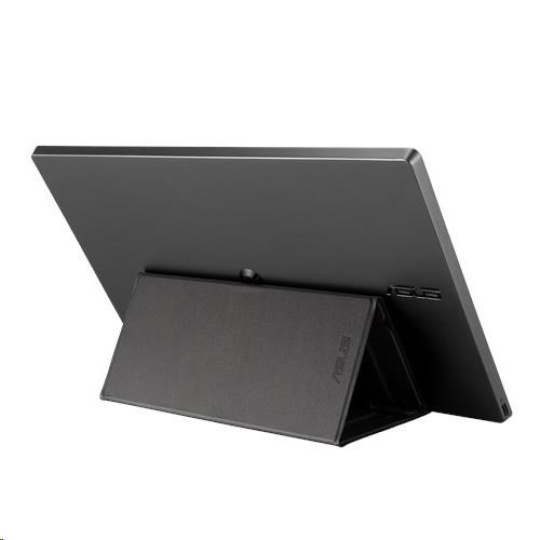

ASUS Smart Case
DisplayPort™ over USB-C™ cable (USB-C to USB-C)
USB-C to A cable (Optional)
USB Type-C to A adapter (Optional)
Quick start guide
Warranty Card
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, FCC, J-MOSS, KCC, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), TUV Flicker-free , TUV Low Blue Light, RCM
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
**Drivers are required for USB 3.0 mode, please find Support Site to download the driver
***Brightness may drop to 180 cd/m2 when in USB 3.0 mode
****Auto Rotate requires the Windows OS and DisplayWidget to be installed
*****Compatible with Thunderbolt 3
.
ASUS ZenScreen MB14AC Portable USB Monitor- 14 inch, IPS Full HD, Hybrid Signal Solution, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface
Panel Size: Wide Screen 14.0"(35.6cm) 16:9
Panel Type : IPS
True Resolution : 1920x1080
Display Viewing Area(HxV) : 309.31 x 173.99 mm
Display Surface : Non-glare
Pixel Pitch : 0.16 mm
Brightness(Max) : 250 cd/?
Contrast Ratio (Max) : 700:1
Viewing Angle (CR?10) : 178°(H)/178°(V)
Response Time : 5ms (Gray to Gray)
Flicker free : Yes
Video Feature
SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Alignment Grid/Photo Modes)
GamePlus(modes) : Yes (Crosshair/Timer)
Low Blue Light : Yes
HDCP support : Yes, 1.4
Auto-rotate : Yes
Display Widget
Convenient Hotkey
Blue Light Filter
I/O Ports
Signal Input : USB Type-C
Power Consumption
Power Consumption(Typical):<7W*
Power Saving Mode:0W
Power Off Mode:0W
Voltage:5V
Mechanical Design
Chassis Colors : Dark gray
Slim Design : Yes
Super Narrow Bezel Design : Yes
Dimensions
Phys. Dimension(WxHxD):324.94 x 208.03 x 11.2 mm
Box Dimension(WxHxD):392 x 257 x 77 mm
Weight
Net Weight(Esti.):0.59kg
Gross Weight(Esti.):1.3kg
Accessories
ASUS Smart Case
DisplayPort™ over USB-C™ cable (USB-C to USB-C)
USB-C to A cable (Optional)
USB Type-C to A adapter (Optional)
Quick start guide
Warranty Card
Compliance and Standards
Energy Star®, BSMI, CB, CCC, CE, CU, FCC, J-MOSS, KCC, RoHS, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), TUV Flicker-free , TUV Low Blue Light, RCM
Note
*measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
**Drivers are required for USB 3.0 mode, please find Support Site to download the driver
***Brightness may drop to 180 cd/m2 when in USB 3.0 mode
****Auto Rotate requires the Windows OS and DisplayWidget to be installed
*****Compatible with Thunderbolt 3
.
ParametryPorovnání
Rozlišení displeje
1920x1080 (Full HD)
Povrchová úprava displeje
Matný
Rozhraní
USB Type-C
Výbava
Redukce modrého světla
Výbava
Redukce blikání (flicker-free)
Typ panelu
IPS
Úhlopříčka displeje (")
14
Kontrast:1
700
Doba odezvy (ms)
5
Hmotnost (kg)
1,3
Jas (cd/m2)
250
ASUS LCD 14" MB14AC 1920x1080 ZenScreen Portable USB-C IPS Hybrid Signal Solution, Antigare surface
