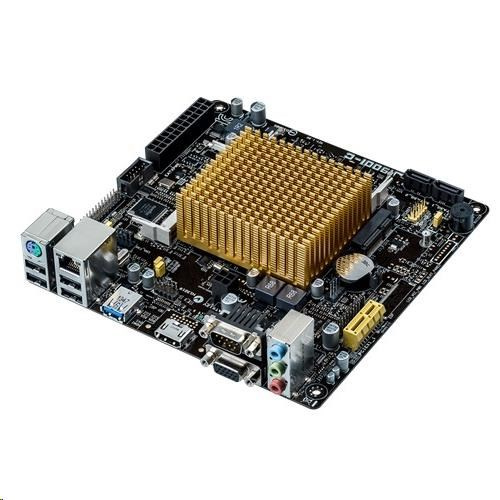

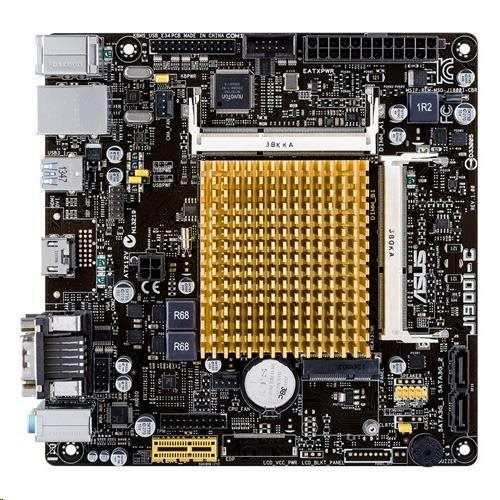

ASUS MB J1900I-C, Intel J1900, 2xSO-SIMM DDR3L, 1xHDMI, 1xVGA, mini-ITX
Popis a parametry
ASUS MB J1900I-C, Intel J1900, 2xSO-SIMM DDR3L, 1xHDMI, 1xVGA, mini-ITX
J1900I-C
Compact and great value Intel Celeron® J1900 SoC CPU board with HDMI and USB 3.0
- New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
- Network iControl: Real-time network bandwidth management
- CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
- AI Suite 3: One-stop access to innovative ASUS features
TECHNICAL SPECIFICATIONS
| CPU | Intel® Celeron® quad-core J1900 Processors |
| Memory | 2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/RGB ports - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz - Supports RGB with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 512 MB Supports DirectX 11 |
| Expansion Slots | 1 x PCIe 2.0 x1 1 x mini-PCIe *2 |
| Storage | Built-in Controller: 2 x SATA 3Gb/s port(s), dark brown Supports Intel® Smart Connect Technology |
| LAN | Realtek® RTL8111G, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *1 - Supports: Jack-detection, Front Panel Jack-retasking |
| USB Ports | Built-in Controller: 1 x USB 3.1 Gen 1 port(s) (1 at back panel, blue) |
| Built-in Controller: 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) | |
| Software Features | ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution: - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |
| Operating System Support | Windows® 8.1 Windows® 8 Windows® 7 Please update your BIOS and drivers to the latest version to support Windows 7 |

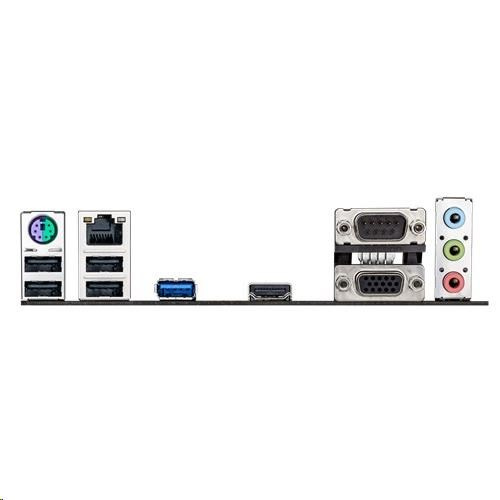

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 1 4 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Buzzer |
| Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| Form Factor | Mini ITX Form Factor 6.7 x 6.7 inch (17 x 17 cm) |
| Note | *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *2:This socket does not support USB Bluetooth signals. (The PCI Express x1 slots conform to PCI Express 2.0 standard) *3:Please update your BIOS and drivers to the latest version to support Windows 7. |
.
ParametryPorovnání
Technologie paměti RAM
SODIMM DDR3
Chipset
Intel
PCI Express x16
0
COM port
Ano
LPT port
Ano
Formát základní desky
Mini-ITX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Počet paměťových slotů
2
DisplayPort
0
TPM
Ano
USB 2
6
USB 3
1
PCI
0
M.2 slot
0
SATA 3
2
VGA
1
DVI
0
HDMI
1
Led Header
Ne
PCI Express x1
1
USB C
0
LAN
1Gbit/s
