CPU

- Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology

Memory

- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB

Graphics

- Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots

- 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode
- 1 x PCIe 3.0 x1 Slot (PCIE2)
- 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)

Storage

- 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors

USB

- 1 x USB 3.2 Gen2 Type-C (Rear)
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

Internal Connector

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

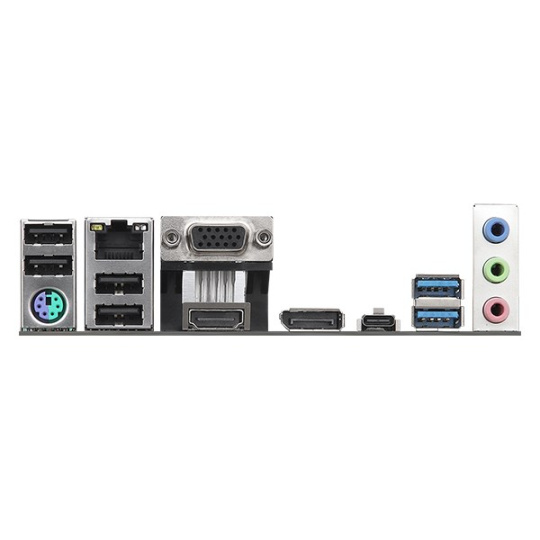

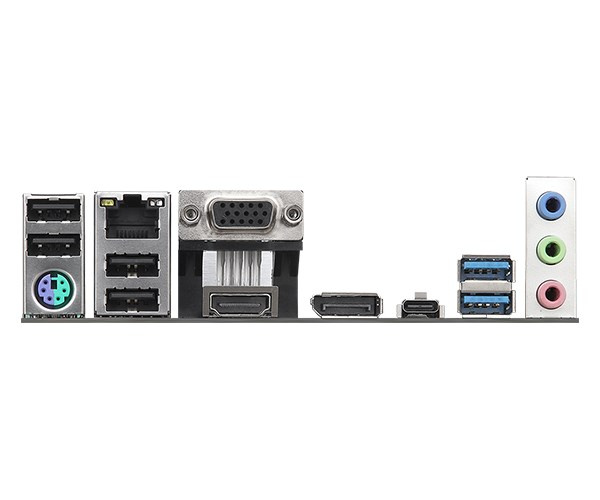

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets

Form Factor

- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
- Solid Capacitor design

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Unique Feature

Rock-Solid Durability
- 2+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
