ADATA SSD 512GB LEGEND 840 PCIe Gen3x4 M.2 2280 (R:5000/ W:4500MB/s)
Popis a parametry
ADATA SSD 512GB LEGEND 840 PCIe Gen3x4 M.2 2280 (R:5000/ W:4500MB/s)

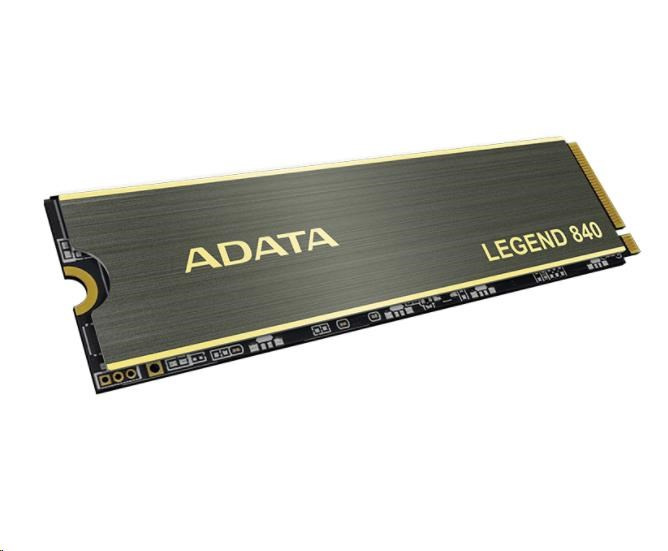

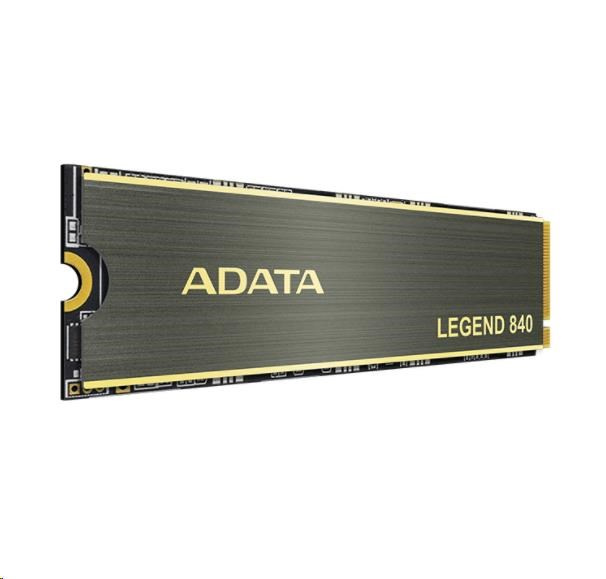

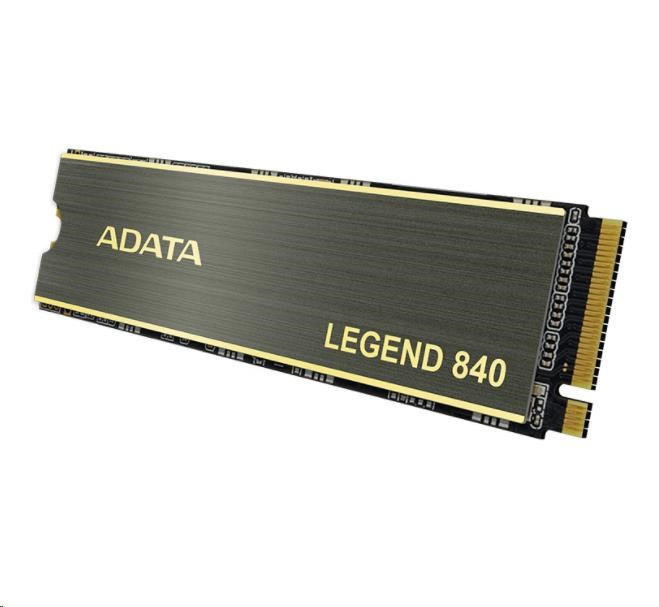

LEGEND 840 PCIe Gen4 x4 M.2 2280 Solid State Drive
- PCIe Gen4 x4 interface
- Excellent read/write performance
- Heat sink keeps things 15% cooler
- Great upgrade option for creators
- High capacities
- NVMe 1.4 support
- LDPC & AES 256-bit encryption
- 5-year warranty
TECHNICAL SPECIFICATIONS
| Capacity | 512 GB |
| NAND Flash | 3D NAND |
| Interface | PCIe Gen4 x4 |
| Form Factor | M.2 2280 |
| MTBF | 2,000,000 hours |
| Controller | Innogrit IG5220 |
| Dimensions (L x W x H) | 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink) 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) |
| Weight | 9g / 0.36oz (with heat sink) 6g / 0.24oz (without heat sink) |
| Sequential Read (Max) | Up to 5,000MB/s (PC/Laptop)*, Up to 5,000MB/s (PS5) |
| Sequential Write (Max) | Up to 4,500MB/s* |
| 4KB Random Read IOPS (Max) | Up to 650K* |
| 4KB Random Write IOPS (Max) | Up to 600K* |
| Operating temperature | 0°C - 70°C |
| Storage temperature | -40°C - 85°C |
| Shock resistance | 1500G/0.5ms |
| Terabytes Written (TBW) | 650TBW** |
| Warranty | 5-year limited warranty*** |
| Note | * This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations. * This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second. * Test system configuration : M/B: MSI X570 GAMING PLUS, CPU: AMD Ryzen 7 3700X 8-Core Processor @ 3.60GHZ ** The value is the minimum amount of terabyte written that could be reached. *** The SSD is based on the TBW or Warranty period. Visit www.adata.com/en/support/ for more details. |
.
ParametryPorovnání
Formát
M.2
Typ disku
SSD NVMe
Rozhraní
NVMe
Typ paměti SSD
3D
Rychlost zápisu MB/s
4000MB/s a víc
Rychlost čtení MB/s
5000MB/s a víc
Použití disku
Pro PC
Použití disku
Pro Notebooky
Životnost zápisu SSD v TB
Min. 200 TBW
SSD Kapacita (GB)
512
